WFX3 CNC Machine Tool Lathe Machining Center Cylindrical CNC Tap Square Grinder

Products Description

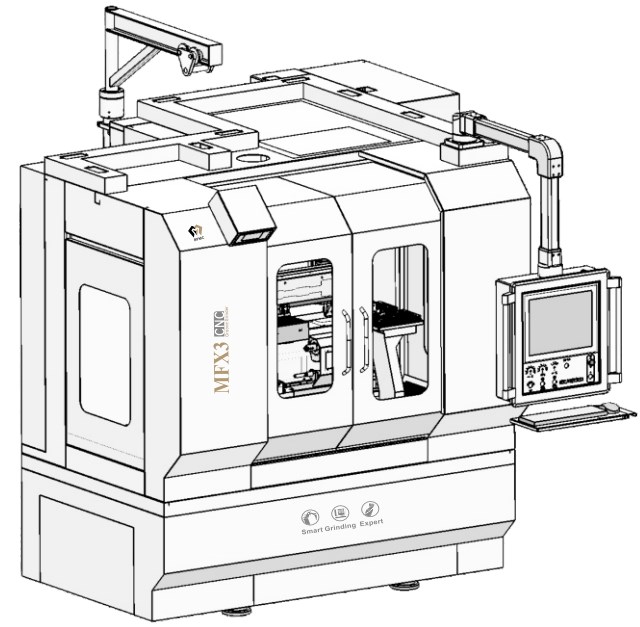

MFX3 CNC Tap Square Grinder

CNC Tap Square grinder is suitable for preciselyand efficiently automatic grinding of M1-M20 tap Our patented flat conveyor-style automatic loader.and RB Series Robot make the long-time unmanned automatic grinding very easily to berealized.

Product Specification

Grinding Spindle			Clamping Method	Square Tail Positioning+ Tailstock Pusher
Single Spindle Taper Hole	1:5 outer Cone	Linear Controlled Resolution	0.001mm
Power	7.5kw	Rotary Controlled Resolution	0.001°
Grinding Wheel Diameter	760x305mm	Controller	BP/SYNTEC/FANUCISIEMENS
Linear Axis Travel			Shank Diameter of Work Piece	3-20mm
X Axis	300mm	Workpiece Max.Length	30-150mm
Y Axis	180mm	Connected Loading
Rotary Axis (C Axis)		380V/50Hz	ca.12kw
Standard Center Height	180mm	Size
Scale ( optional )	HEIDENHAIN	Length x Width	2300X2150mm
TOOls Range ( Grindsbte Tool depends an its Type and Machining Requirement )			Height	2000mm
Diameter	M1-M20	Weight
Length	150mm	Total WVelght ( Depands on the Comfguratian 1	3500kg

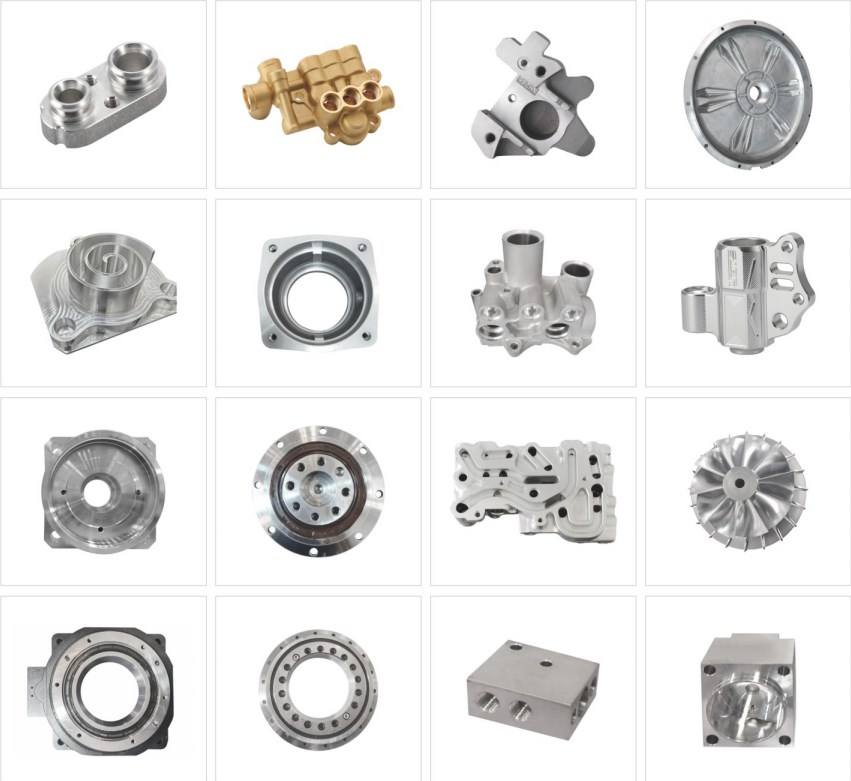

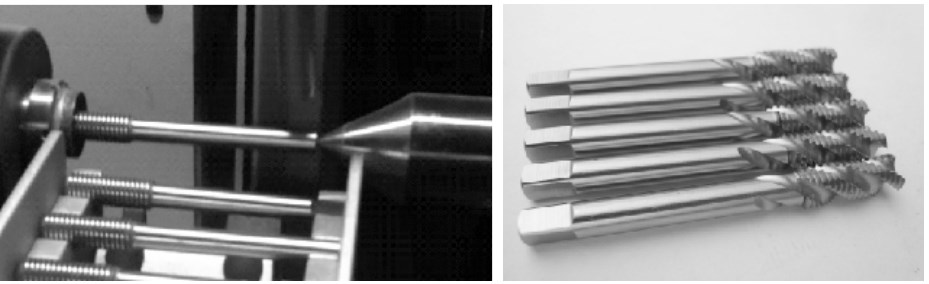

Samples Show

Applications

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
