Product Description

WH Series WH78 WH188 WH124 WH106 WH111 WH132 WH150 WH155 WH159 Hard Soft Bend Welded Mill Chain

Product Description

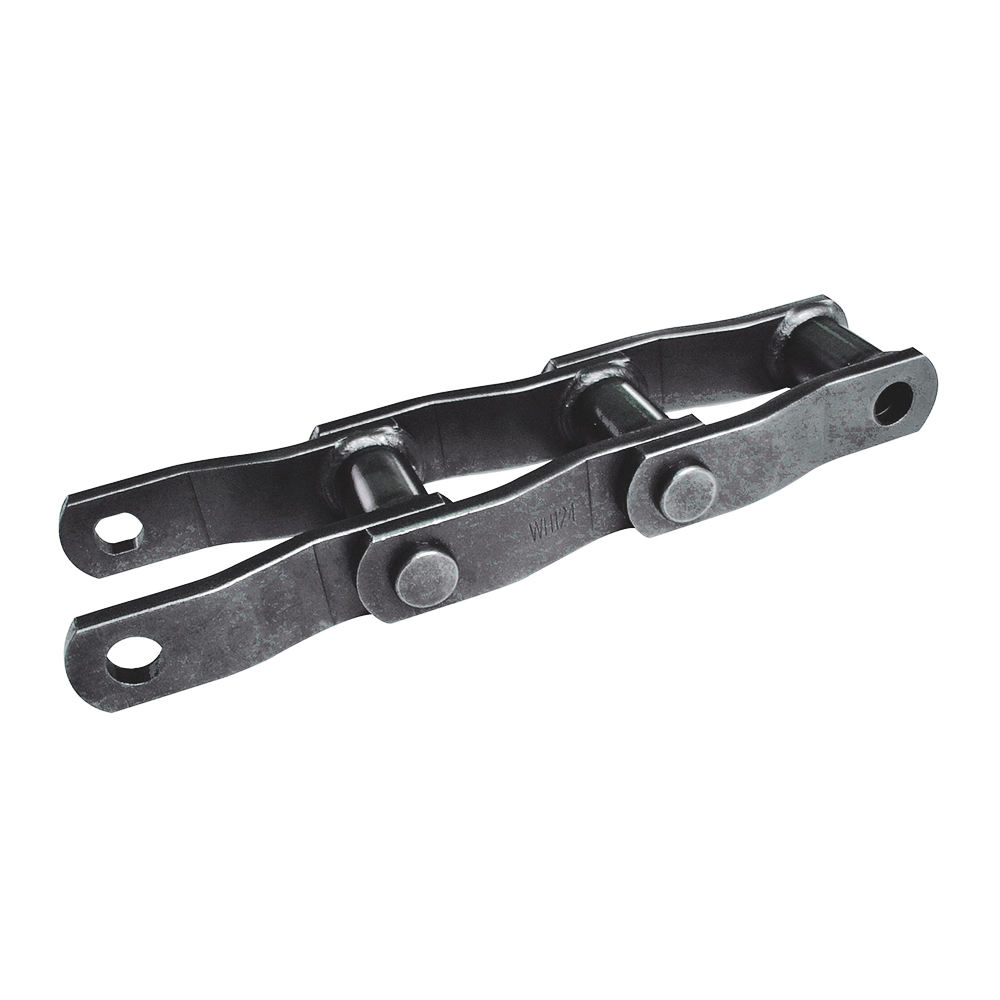

Offset mill chains are available for carbon and stainless steel. Welded steel mill stage chains are recommended for most conveying, driving and lifting applications, where high strength steel, roller-free chains are required. These chains will operate the same sprockets as their casting counterparts. The complete accessory line and optional heat treatment make them easily adaptable to a wide range of applications. • Use automatic welding Make sure the welding is in the same position as the barrel • Carbon steel chains have heat treated pins, barrels and sidebars • Stainless steel series with heat treatment barrels and pins • Induction hardening needles are available in the WHX series

CHAIN NO.	PITCH	Bend Style	AVERAGE ULTIMATE STRENGTH LBS.	RATED WORKING LOAD LBS.	APPROX. LINKS IN 10 FEET	AVERAGE WEIGHT PER FOOT	OVERALL WIDTH JK
WH188	2.609	2	30,000	2,850	46	3.8	2.69
WH78	2.609	2	30,000	3,500	46	4.0	3.00
WH78-4	4.000	2	30,000	3,500	30	4.0	3.00
WH82	3.075	2	36,000	4,400	39	4.8	3.25
WH124 *	4.000	1, 2	69,000	7,200	30	8.3	4.25
WH124 HD	4.063	2	100,000	10,500	30	14.7	4.75
WH111	4.760	1	91,000	8,850	26	9.5	4.88
WH106	6.000	1	69,000	7,200	20	7.0	4.25
WH106 HD	6.000	1	92,500	7,875	20	9.0	4.75
WH106 XHD	6.050	1	100,000	10,500	20	11.8	4.88
WH110	6.000	1	69,000	7,875	20	7.2	4.62
WH132	6.050	1	115,000	15,300	20	14.2	6.25
WH132 HD	6.050	1	139,500	16,200	20	16.4	6.75
WH150	6.050	1	116,000	15,300	20	16.8	6.25
WH150 HD	6.050	1	168,000	16,200	20	19.3	6.75
WH150 XHD	6.050	1	161,000	18,200	20	19.7	6.75
WH155	6.050	1	145,000	17,750	20	20.0	6.50
WH159	6.125	2	230,000	20,250	20	28.0	6.97

* Both bend profiles are available. Please specify if you prefer one style over the other. WHX Series also available with induction hardened pins.

STAINLESS STEEL WELDED MILL CLASS CHAIN

Our standard stainless steel chains in this class are designed with 316 grade sidebars and specialty heat treat 17-4 barrels and pins.

Chain NO.	PITCH	Bend Style	AVERAGE ULTIMATE STRENGTH LBS	RATED WORKING LOAD LBS.	APPROX. LINKS IN 10 FEET	AVERAGE WEIGHT PER FOOT	OVERALL WIDTH JK	LENGTH OF BEARING X
												ULTIMATE	WORKING	APPROX.	AVERAGE	OVERALL	OF
									CHAIN		Bend	STRENGTH	LOAD	LINKS IN	WEIGHT	WIDTH	BEARING
									NO.	PITCH	Style	LBS.	LBS.	10 FEET	PER FOOT	JK	X
WH78 *	2.609	2	11,600	2,300	46	4.0	3.00	2.00
WH82	3.075	2	13,000	2,600	39	4.8	3.25	2.25
WH124	4.000	1,2	21,400	4,250	30	8.3	4.25	2.75
WH106	6.000	1	38,000	7,600	20	7.0	4.25	2.75
WH132	6.050	1	38,000	7,600	20	14.2	6.25	4.38
WH150	6.050	1	56,400	11,200	20	16.8	6.25	4.38
WH155	6.050	1	52,100	10,400	20	20.0	6.50	4.50
