Wholesale Customized Good Quality H60-K1 H78-K1 H Class Mill Chain
  • Wholesale Customized Good Quality H60-K1 H78-K1 H Class Mill ChainWholesale Customized Good Quality H60-K1 H78-K1 H Class Mill Chain

Wholesale Customized Good Quality H60-K1 H78-K1 H Class Mill Chain

Wholesale Customized Good Quality H60-K1 H78-K1 H Class Mill ChainVideo Description00:00/00:00Product DescriptionEver-power “H” Class Mill Chain is an ex- tremely strong, serviceable chain originally de- signed for heavy drives and transfer conveyor purposes in saw mills and the paper and pulp indus......

Wholesale Customized Good Quality H60-K1 H78-K1 H Class Mill Chain

Video Description

00:00/00:00
Wholesale Customized Good Quality H60-K1 H78-K1 H Class Mill Chain
Product Description

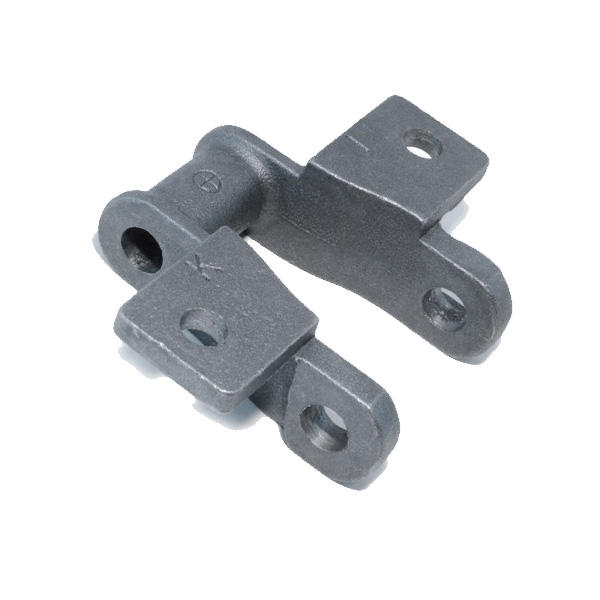

Ever-power “H” Class Mill Chain is an ex- tremely strong, serviceable chain originally de- signed for heavy drives and transfer conveyor purposes in saw mills and the paper and pulp industry. “H” Class Chain has proven itself for innumerable other industrial applications as well, especially for moderate duty in abrasive atmospheres where heavy, rugged chain is re- quired. The sidebars of the “H” Class links are rein- forced with wearing shoes which strengthen and stiffen the links when it is operated in troughs or over floors and runways.
Pin holes are precision cored to assure accu- rate pitch sizes, which range from 2.308 to 4.000 inches. “H” Class Chain is available in both riveted and cottered construction. T-head pins engage two lugs cast on the links’ side- bars. This configuration prohibits pin rotation during chain operation, eliminating abrasive wear and pitch elongation.
Ever-power “H” Class Chain conforms to manufacturer’s standards and is completely in- terchangeable with chains of other manufactur- ers. “H” Class Chain is available in Allied-Locke Promal with tensile ranges of 9,450 to 40,500 pounds.

“H” Class Chain may operate in two direc- tions. As a drive chain, it travels in the direction of the closed barrel; for elevator or conveyor applications, it should travel toward the open ends of the links.
Brutaloy or cast steel sprockets are available to accommodate every “H” Class pitch size. A wide assortment of attachments is also avail- able for varied chain applications.
Wholesale Customized Good Quality H60-K1 H78-K1 H Class Mill Chain
Wholesale Customized Good Quality H60-K1 H78-K1 H Class Mill Chain

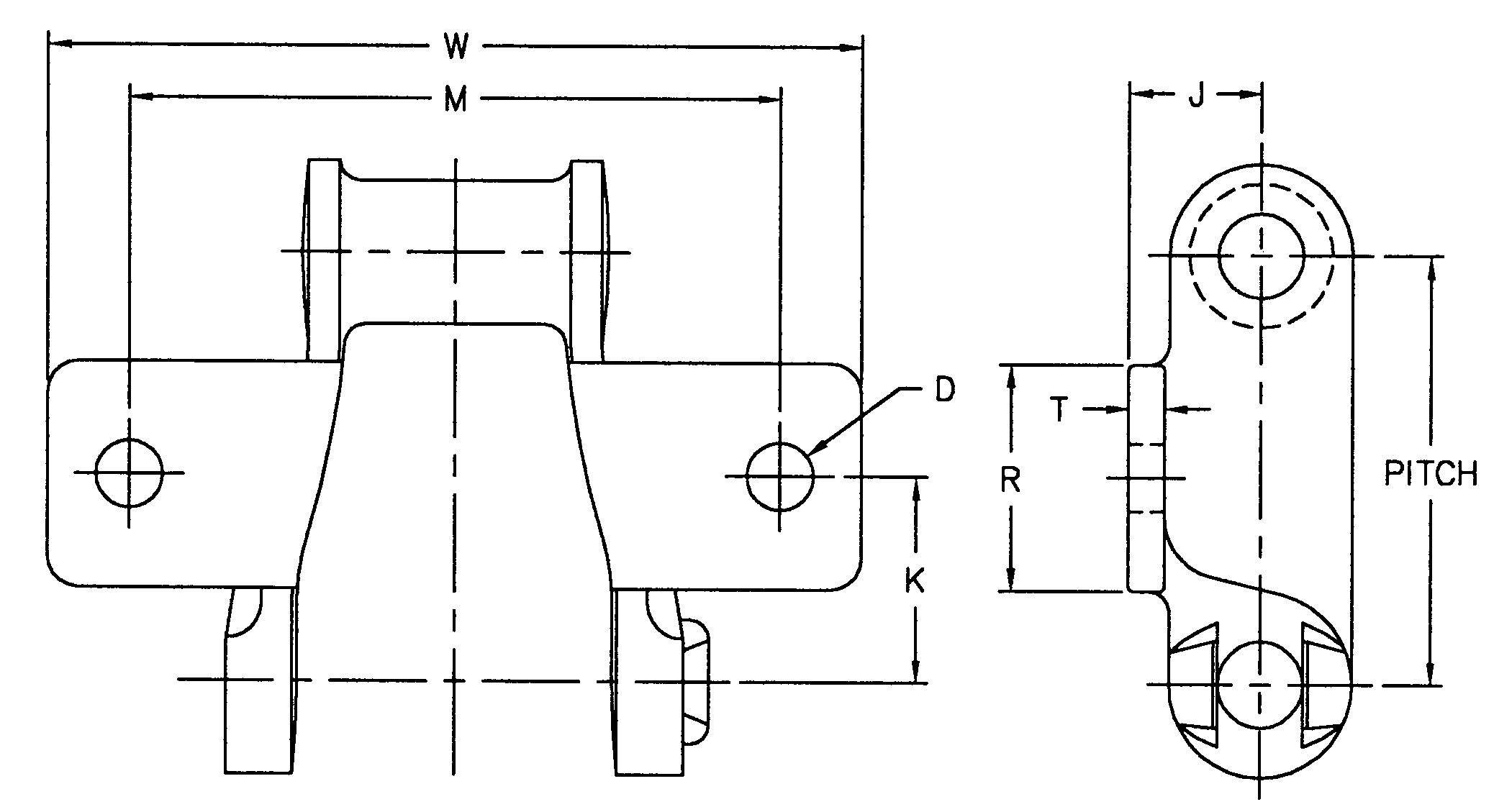

MOLINE ATTACHMENT NO.
DIMENSIONS IN DECIMAL INCHES


PITCH
D


J


K


M


R


T


W
BOLT DIAMETER
HOLE DIAMETER
H 60-K1
2.308
0.31
0.34
0.75
1.06
3.00
1.12
0.19
4.00
H 78-K1
2.609
0.38
0.41
0.81
1.25
4.00
1.38
0.22
5.00
Wholesale Customized Good Quality H60-K1 H78-K1 H Class Mill Chain
