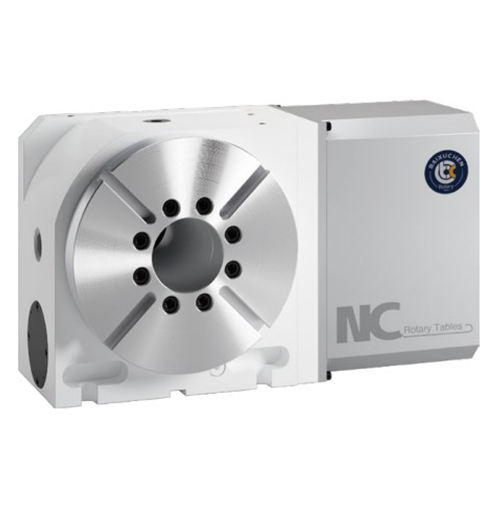

Product Model | WT-255 | Segmentation accuracy | 15 ″ |
Disk Diameter | Φ255mm | Repeat positioning | 4 ″ |
Center Diameter | Φ80H7mm | Locking Mode | 70kg.m |
Spindle Hole | Φ80mm | Servo Motor | β8is;HF-154 |
Center Height | 160mm | Speed Reduction Ratio | 1:120 |
T-Slot Width | 12H7mm | Maximun Speed | 33.3r.p.m |
Positioning Button | 18H7mm | Allowable Work Inertia | 20.3kg.cm.sec2 |
Min lncrement | 0.001° | Allowable Cutting Torque | 55Kg.m |
Weight（Without Motor） | 105Kg | Vertical | 100KG |
Horizontal | 250KG | Tailstock applied | 250KG |
