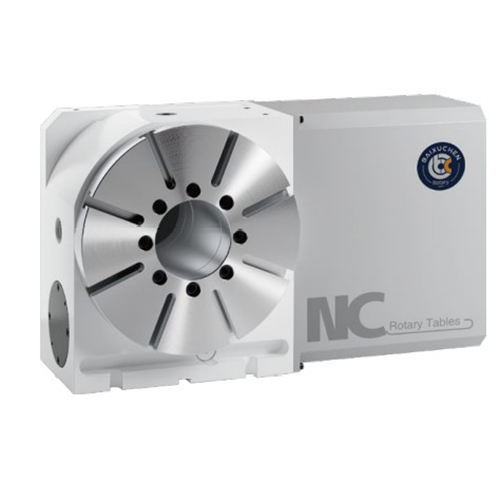

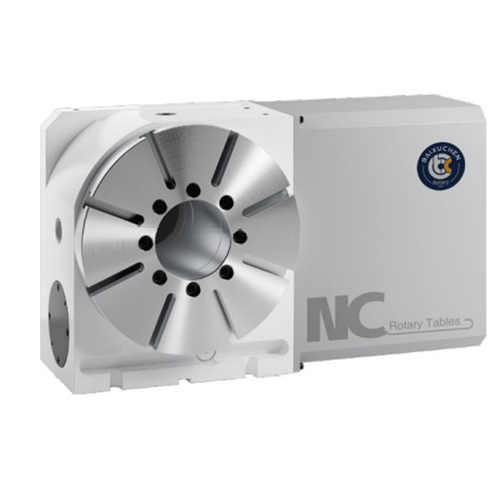

Product Model | WT-320 | Segmentation accuracy | 15 ″ |
Disk Diameter | Φ320mm | Repeat positioning | 4 ″ |
Center Diameter | Φ110H7mm | Locking Mode | 115kg.m |
Spindle Hole | Φ110mm | Servo Motor | β22is;HF-204 |
Center Height | 210mm | Speed Reduction Ratio | 1:120 |
T-Slot Width | 14H7mm | Maximun Speed | 33.3r.p.m |
Positioning Button | 18H7mm | Allowable Work Inertia | 44.8kg.cm.sec2 |
Min lncrement | 0.001° | Allowable Cutting Torque | 80Kg.m |
Weight（Without Motor） | 175Kg | Vertical | 150KG |
Horizontal | 350KG | Tailstock applied | 350KG |
