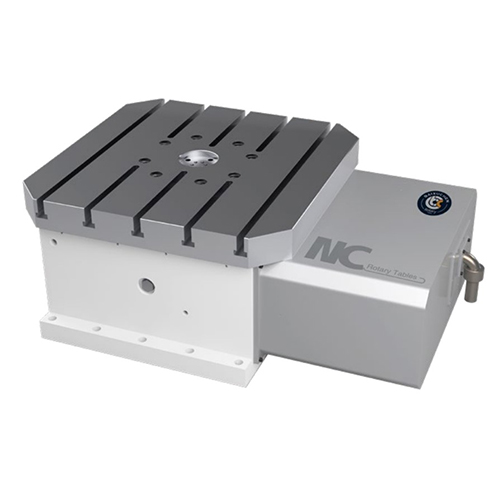

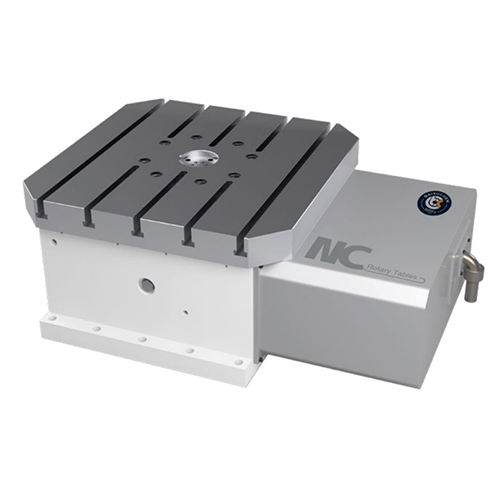

WT-H550 CNC Machining Center Parts CNC Turntable Rotary Table Horizontal Micro-positioning Table

Raydafon Group's WT-H550 CNC Turntable enhances precision with its horizontal micro-positioning, ideal for CNC machining centers, offering durable performance and superior accuracy for engineers and manufacturers seeking reliable automation solutions.

WT-H550 CNC Machining Center Parts CNC Turntable Rotary Table Horizontal Micro-positioning Table

WT-H550 CNC Machining Center Parts CNC Turntable Rotary Table Horizontal Micro-positioning Table

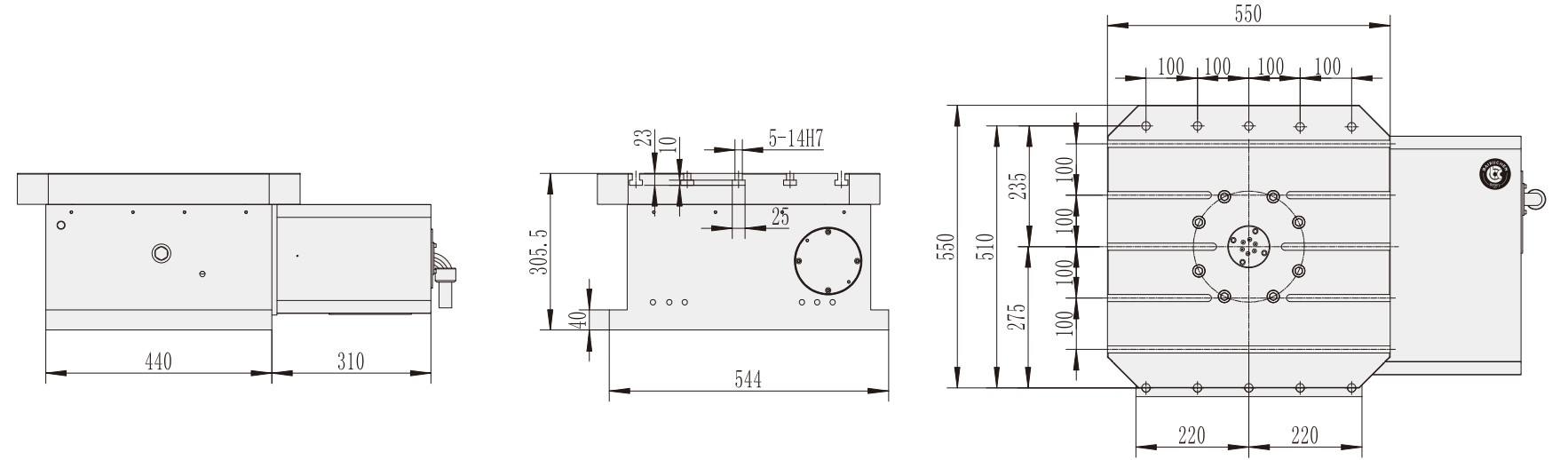

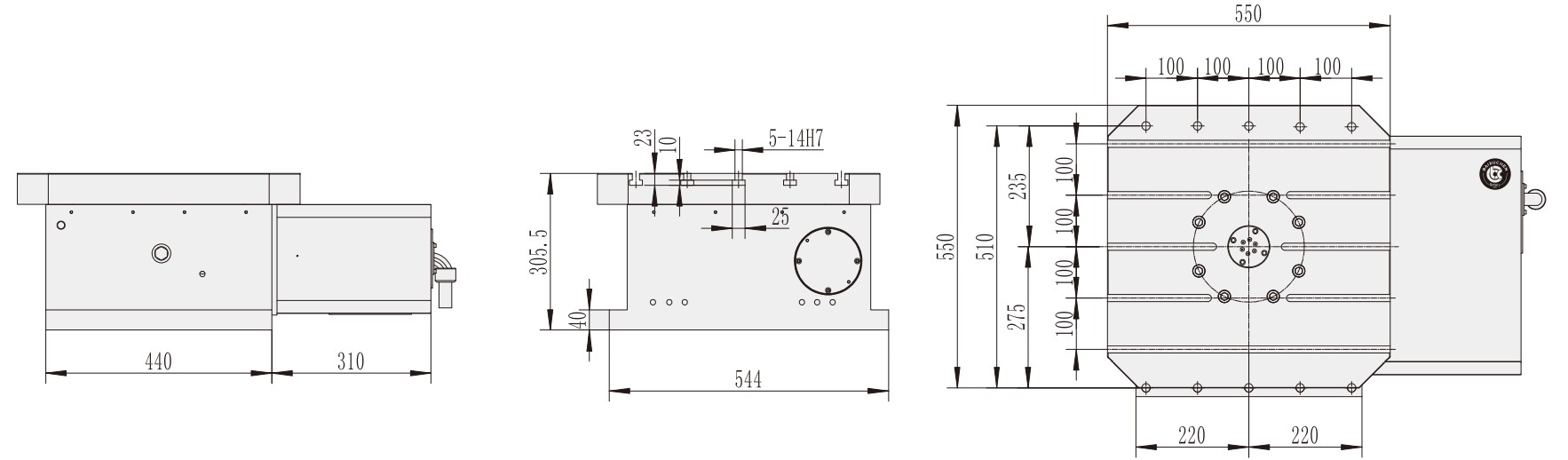

Products Description
Horizontal micro-positioning table
Suitable for horizontal processing machines, hydraulic lock
Heavy-duty cutting, simultaneous machining
Product Model
WT-H550
Servo motor
β22i HF-204
Panel Size
550×550
Total Reduction Ratio
1:120
Disk Aperture
Φ80mm
Maximum Rotation Speed Of Worktable
33.3 r.p.m
Flat Overall Height
290.5mm
Minimum Setting Angle
0.001°deg
Disk T-Slot
12H8mm
Segmentation Accuracy
20″sec
Positioning Button
14H7mm
Repeat Positioning Accuracy
4''sec
Center Height
255mm
Locking Method
oil pressure 35Kg/cm²
Net Weight (about)
300Kg
Allowable Cutting Force
200Kg.m
Max.load  Horizontal
500KG
