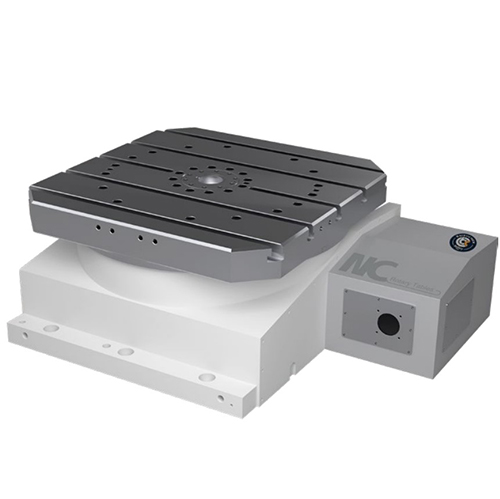

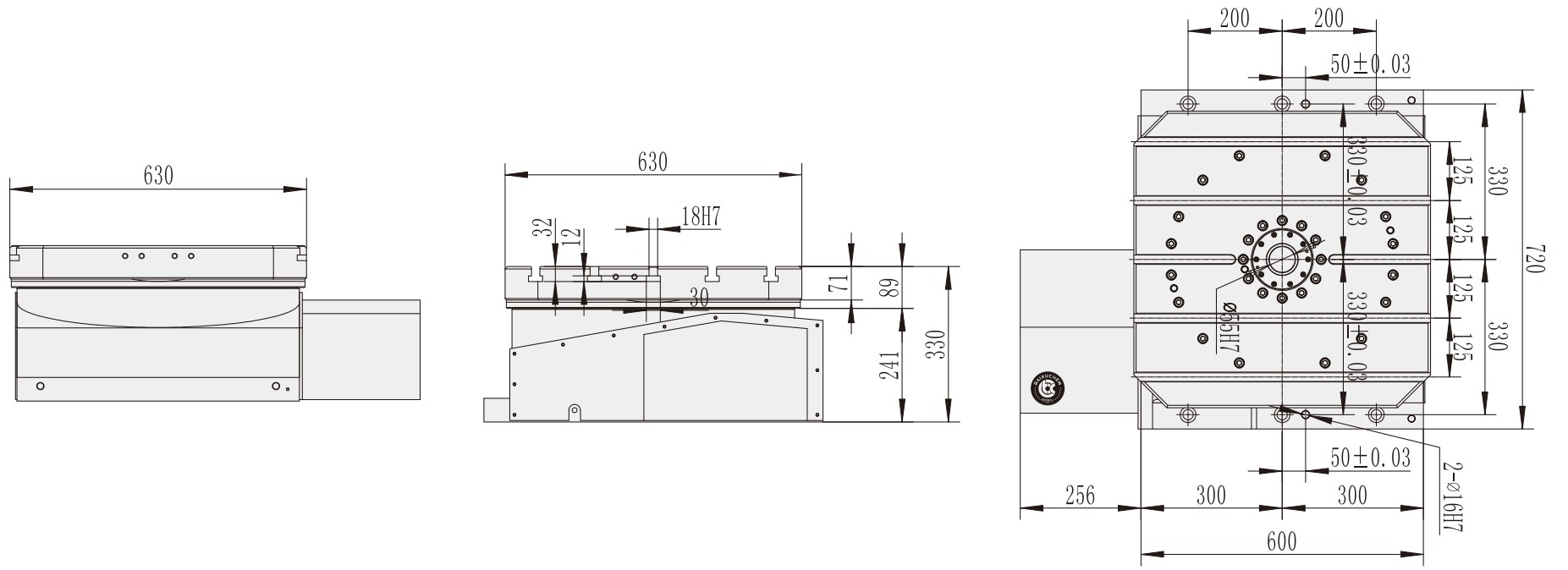

Product Model | WT-H630 | Servo motor | 1FK7083 α22i |
Panel Size | 630×630 | Total Reduction Ratio | 1:180 |
Disk Aperture | Φ55mm | Maximum Rotation Speed Of Worktable | 11r.p.m |
Flat Overall Height | 330mm | Minimum Setting Angle | 1°/5° |
Disk T-Slot | 18H8mm | Segmentation Accuracy | 8″sec |
Positioning Button | 14H7mm | Repeat Positioning Accuracy | 2″sec |
Center Height | 255mm | Locking Method | oil pressure 35Kg/cm² |
Net Weight (about) | 860Kg | Locking Force | 6000Kg |
Max.load Horizontal | 1200KG |
