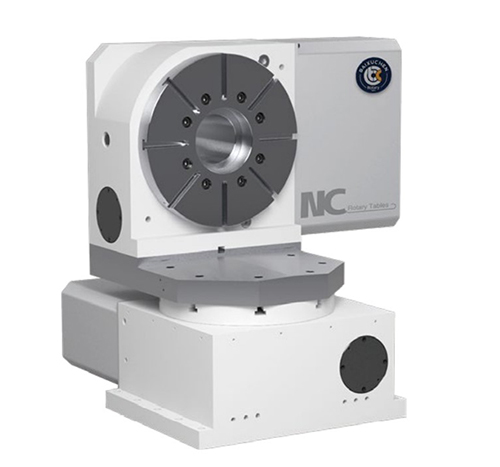

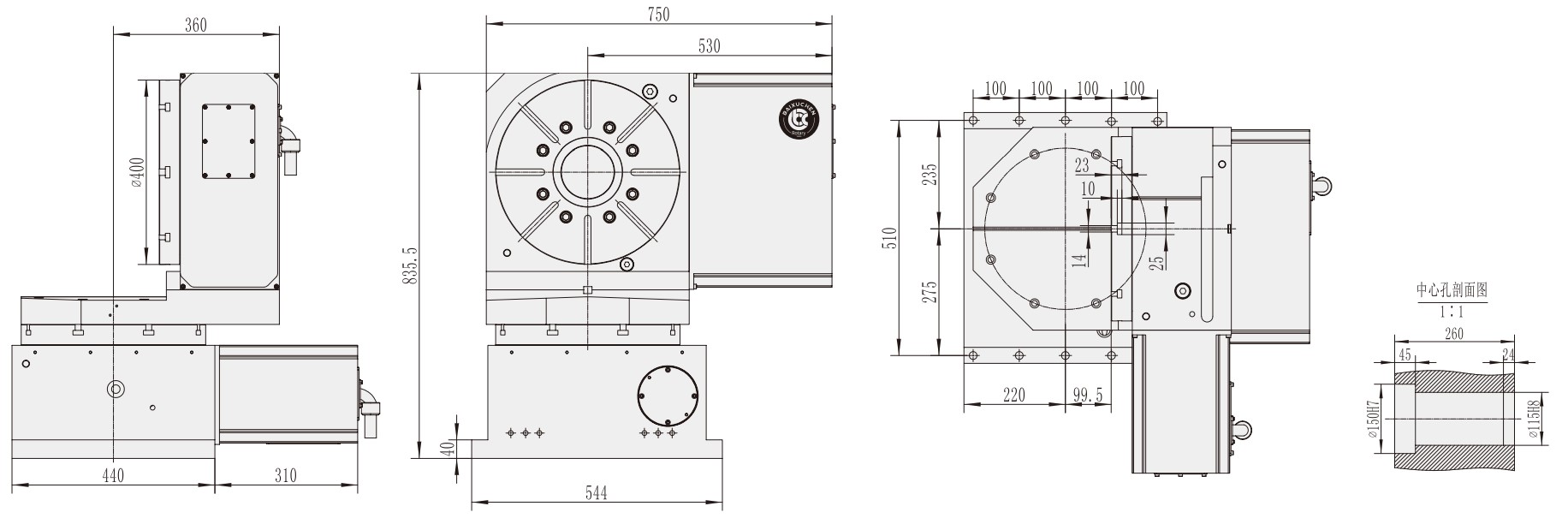

Product Model | WT5S-H400 | Servo motor (optional) | Rotation axis β22iFANUC;Tilt axis β22iFANUC |
Panel Size | 400mm | Reduction Ratio | Rotation axis 1:120 ;Tilt axis 1:120 |
Disk Aperture | 150mm | Maximum Rotation Speed Of Worktable | 33.3 r.p.m |
T-groove Of Disk Surface | 14H8mm | Minimum Setting Angle | 0.001°deg |
Tilt Angle | 360°deg | Segmentation Accuracy | Rotation axis 15″sec;Tilt axis 15″sec |
Rotation Angle | 360°deg | Repeat Positioning Accuracy | Rotation axis 4″sec;Tilt axis 4''sec |
Center Height | 255mm | Locking torque of rotating shaf | Rotation axis 1100N.m;Tilt axis 1100N.m |
Tilt Axis Angle Range | -45 ~110° | Brake Pressure | Rotation axis pressure 35Kg/cm² ;Tilt axis oil pressure 35Kg/cm² |
Net Weight (about) | 600Kg | Allowable Cutting Force | Rotation axis 180Kgf-m ;Tilt axis 180Kgf-m |
Max.load | 200KG |
