Product Description

X5025B Vertical Knee-Type Milling Machine with Box Guideway

Product Description

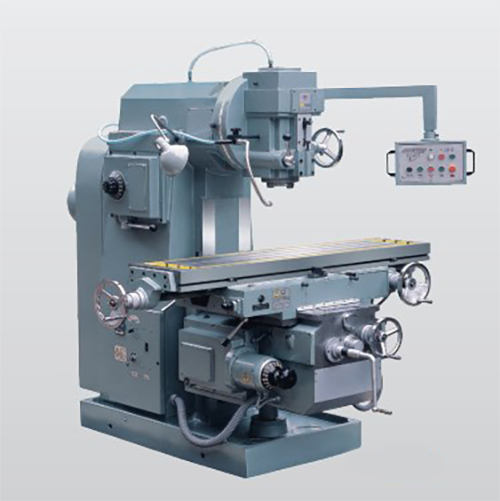

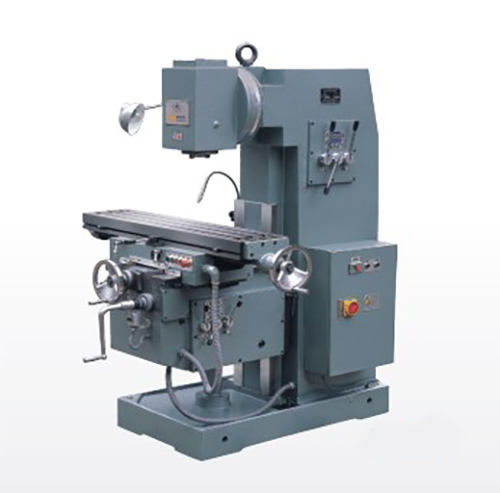

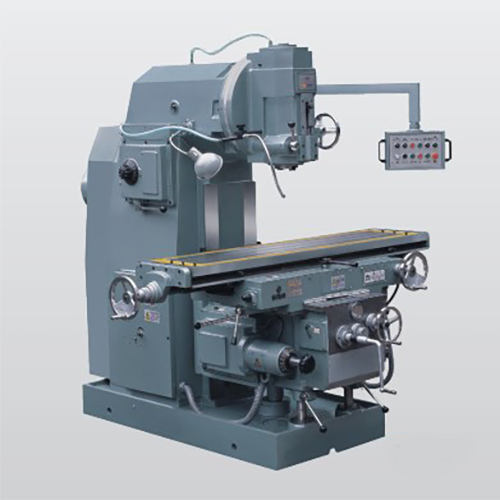

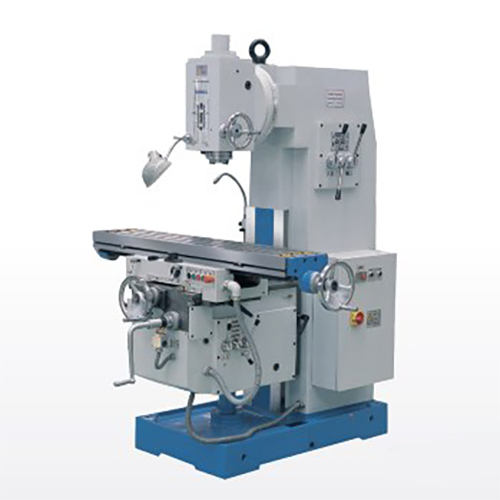

X5025B Vertical Knee-Type Milling Machine

The X5025B Vertical Knee-Type Milling Machine is a specific model of milling machine with a vertical spindle and a knee-type construction.

Specification

Item	Unit	X5025B	X5030C	X5032B	X5036	X5042
Worktable size	mm	250×1100	300×1250	320×1320	360×1600	420×1800
T slot （N×W×D)	mm	3×14×63	3×14×63	3×18×80	3×16×80	3×18×90
Max. load bearing of worktable	kg	200	250	500	500	800
Longitudinal travel (Manual/Power) X	mm	720	800	800/780	1020/1000	1200/1180
Cross travel (Manual/Power) Y	mm	270	265	300/280	300/280	360/350
vertical travel (Manual/Power) Z	mm	410	410	410/400	410/400	470/450
Max.rotary angle of vertical milling head		±45°	±45°	±45°	±45°	±45°
Spindle hole taper	mm	Mt3 或 7:24 30#	7:24 No.40	7:24 No.50	7:24 No.50	7:24 No.50
Arbor diameter	mm	Φ22 Ø27	Φ22 Ø27	Ф32 Ф40	Ф32 Ф40	Φ32 Φ50
Distance from spindle end to worktable surface	mm	60 ～ 470	60 ～ 470	60 ～ 460	60 ～ 460	60 ～ 510
Distance from spindle center to vertical guide way	mm	160-430	152 ～ 417	235 ～ 535	235 ～ 535	275 ～ 655

Spindle hole taper		7:24 NO:40	7:24 No.40	7:24 No.50	7:24 No.50	7:24 No.50
Spindle quill travel	mm	/	70	75	75	85
Spindle speed steps	steps	12	12	18	18	18
Spindle speed range	r/min	35 ～ 1600	35 ～ 1600	30 ～ 1500	30 ～ 1500	30 ～ 1500
Feed speed steps	steps	12	12	18	18	18
Feed speed range (X/Y/Z)	mm/ min	12 ～ 560 12 ～ 560 5 ～ 226	15 ～ 800 15 ～ 800 6 ～ 270	15 ～ 750 15 ～ 750 5.7 ～ 280	15 ～ 750 15 ～ 750 5.7 ～ 280	22 ～ 1100 22 ～ 1100 8.3 ～ 410
Rapid feed speed range (X/Y/Z)	mm/ min	1780/1780/720	2100/2100/880	2250/2250/844	2250/2250/844	2400/2400/900
Main motor power	Kw	4	4	7.5	7.5	11
Feed motor power	Kw	0.75	0.75	1.5	1.5	3
Machine dimension	mm	1670/1350/1800	1750/1500/1800	2307/1707/2096	2307/2067/2096	2522/2265/2432
Package dimension	mm	1660/1570/2180	1660/1570/2180	2200/1770/2270	2200/1770/2270	2450/2280/2460
Machine weight	Kg	1800	1800	3200	3370	4450
Voltage/ Frequency	V/Hz	380/50	380/50	380/50	380/50	380/50

Features: 1. Vertical Spindle: The machine is equipped with a vertical spindle, which allows for vertical milling operations. This spindle orientation is suitable for tasks such as face milling, end milling, drilling, and reaming. 2. Knee-Type Design: The knee-type construction provides stability, rigidity, and versatility to the machine. The knee can be adjusted vertically to accommodate different workpiece heights, allowing for precise positioning and easy setup. 3. Diverse Speed Range: The X5025B typically offers multiple speed options, allowing operators to choose the appropriate speed for various machining operations. This flexibility enables the machine to handle different materials and cutting requirements. 4. Swiveling Milling Head: The machine features a milling head that can be swiveled, providing additional flexibility in machining angles and compound angles. This feature allows for the production of complex parts and contours. 5. Versatile Tooling Options: The X5025B is compatible with a wide range of tooling options, including different types of cutters, end mills, drills, and more. This versatility allows for the machining of various materials and the execution of different milling operations. Applications: 1. General Metal Machining: The X5025B is suitable for general metal machining applications. It can perform tasks such as face milling, end milling, drilling, and more on a variety of materials, including steel, aluminum, and brass. It finds application in industries such as general machinery manufacturing, automotive, and fabrication shops. 2. Prototyping and Small-Scale Production: The machine is commonly used for prototyping and small-scale production. Its versatility and ease of use make it suitable for quickly machining parts and creating prototypes for testing and evaluation. 3. Toolroom Operations: The X5025B is often utilized in toolrooms for prototyping, repair work, and maintenance. Its flexibility and ability to handle diverse machining tasks make it a valuable asset for tool and die makers, enabling the production and repair of various tooling components. 4. Education and Training: The machine is frequently used in educational institutions and training facilities for teaching milling operations and providing hands-on experience to students and trainees. Its knee-type design and ease of use make it suitable for learning the fundamentals of milling. In summary, the X5025B Vertical Knee-Type Milling Machine offers features such as a vertical spindle, knee-type construction, diverse speed range, swiveling milling head, and versatile tooling options. It finds application in general metal machining, prototyping, small-scale production, toolroom operations, and educational environments where stability, versatility, and precision are required for vertical milling operations.

Vertical head: Vertical head can rotate ± 45 ° The spindle sleeve can move 75mm

Three axes driven by servo motor and ball screw:Three AIX are driven by servo motors and ball screws. They are controlled by a CNC system and can improve efficiency.

Transmission: The main shaft is driven by hardened gears, with a speed range of 18 levels. It provides a high rigidity process. The maximum torque can reach 2800N. M.

Optional accessories at extra cost(For conventional machines)

System and tool magazine
