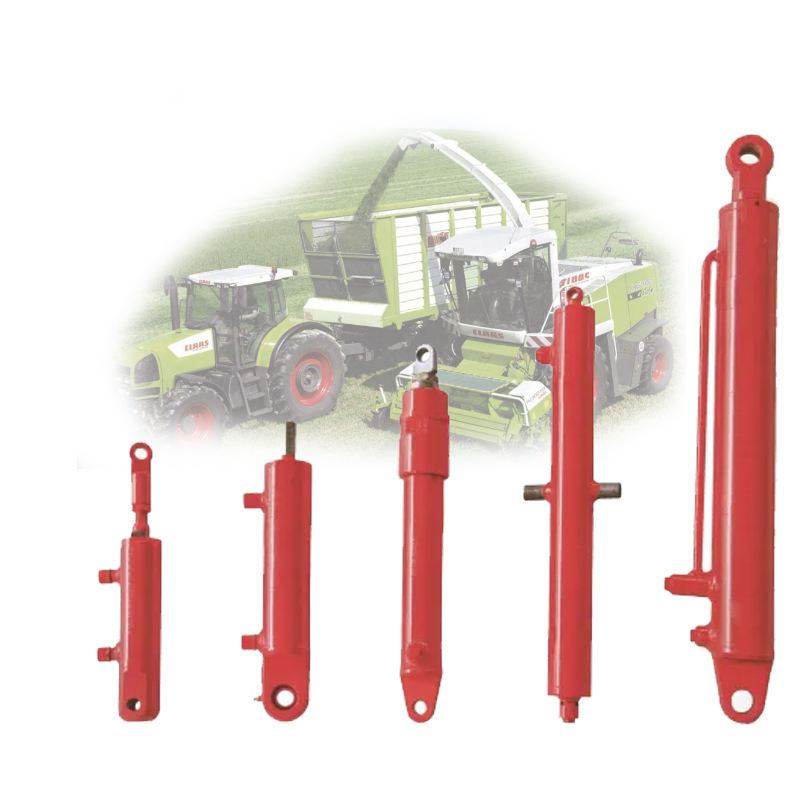

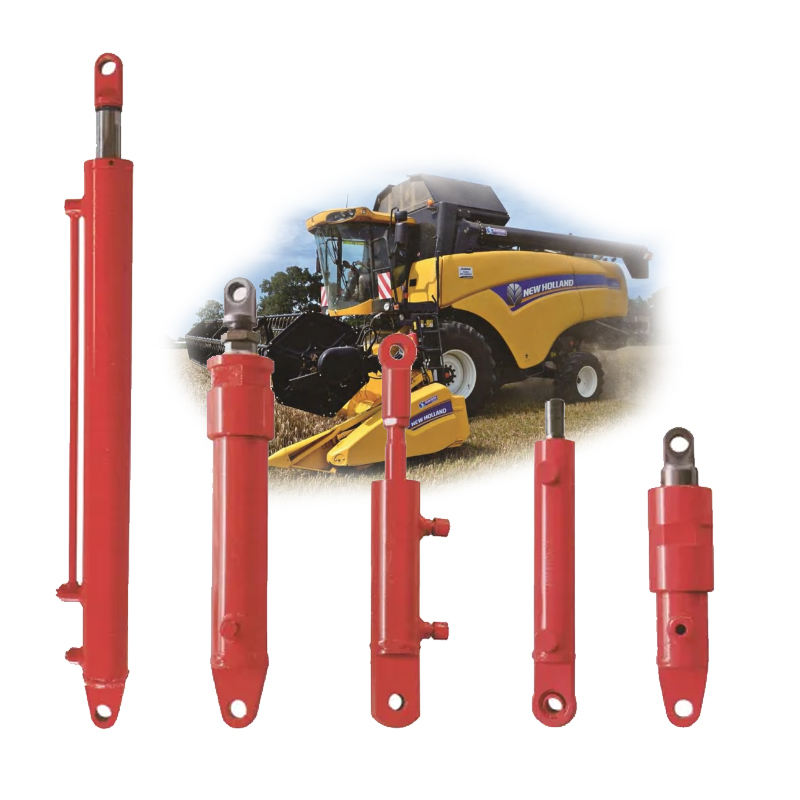

ZG & HSG Series Hydraulic Cylinder for Harvester

There are two major series of hydraulic cylinders for harvesting machinery, namely ZG and HSG. According to their functions, they are divided into harvesting table cylinders, ear box cylinders, crusher cylinders, bridge cylinders, speed cylinders, rear axle cylinders and steering cylinders, etc. They are mainly used in harvesting machinery such as wheat harvesters, corn harvesters, rice harvesters, and forage harvesters.

Basic Parameters

Model	Nominal pressure	Cylinder diameter	Speed ratio 1.33			Speed ratio 1.46			Speed ratio 2
Model	Nominal pressure	Cylinder diameter				Rod diameter	Maximum stroke	Rod diameter	Maximum stroke	Rod diameter	Maximum stroke
HSGL02-40/dE	16Mpa	40	20	1000	22	1000	25	1000
HSGL02-50/dE		50	25	1000	28	1000	32	1000
HSGL02-63/dE		63	32	2000	35	2000	45	2000
HSGL02-80/dE		80	40	2000	45	3000	55	3000
HSGL02-80/dE		80	40	3000	45	3000	/	/
HSGL02-90/dE		90	45	3000	50	3000	63	3000
HSGL02-100/dE		100	50	3000	56	3000	70	3000
HSGL02-110/dE		110	55	3000	63	3000	80	3000
HSGL02-125/dE		125	63	3000	70	3000	90	3000
HSGL02-140/dE		140	70	3000	80	3000	100	3000
HSGL02-150/dE		150	75	3000	85	3000	105	3000
HSGL02-160/dE		160	80	3000	90	3000	110	3000
HSGL02-180/dE		180	90	3000	100	3000	125	3000
HSGL02-200/dE		200	100	3000	110	3000	140	3000
HSGL02-220/dE		220	110	3000	125	3000	160	3000
HSGL02-250/dE		250	125	3000	140	3000	180	3000

Note:

1. Speed ratio: refers to the ratio of the effective area of the piston to the effective area of the piston rod cavity. 2. The rod diameter size of the speed ratio 1.46 rod is the preferred series. 3. When the user requires S> the maximum stroke specified in the table, it should be resolved through negotiation between the two parties. 4. The minimum stroke of the hinge shaft and the middle flange connection is selected according to Tables 5, 6, 7, and 8. 5. 1Mpa is approximately equal to 10kgf/cm?.
