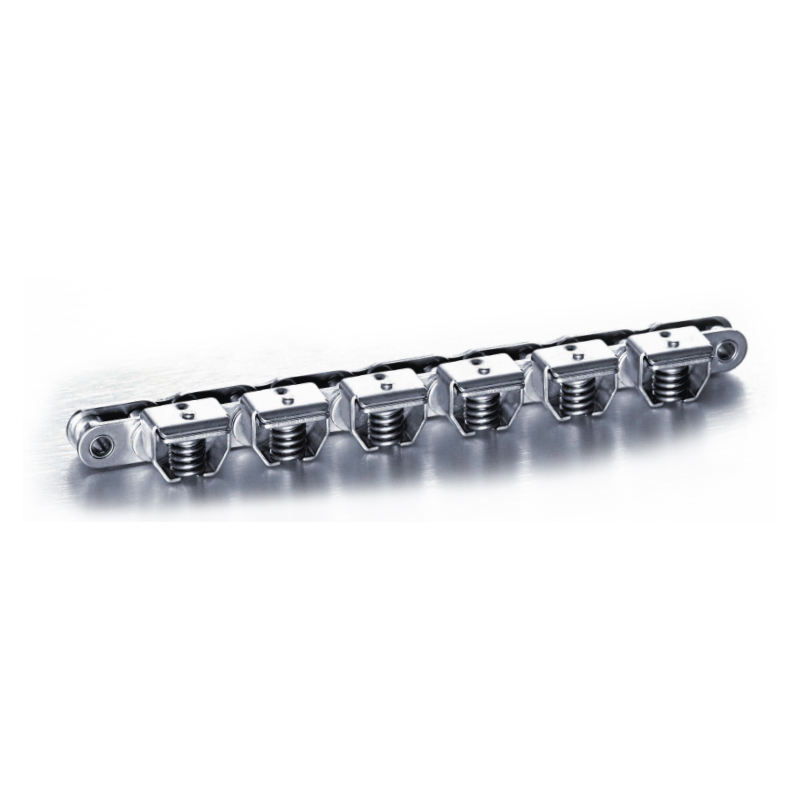

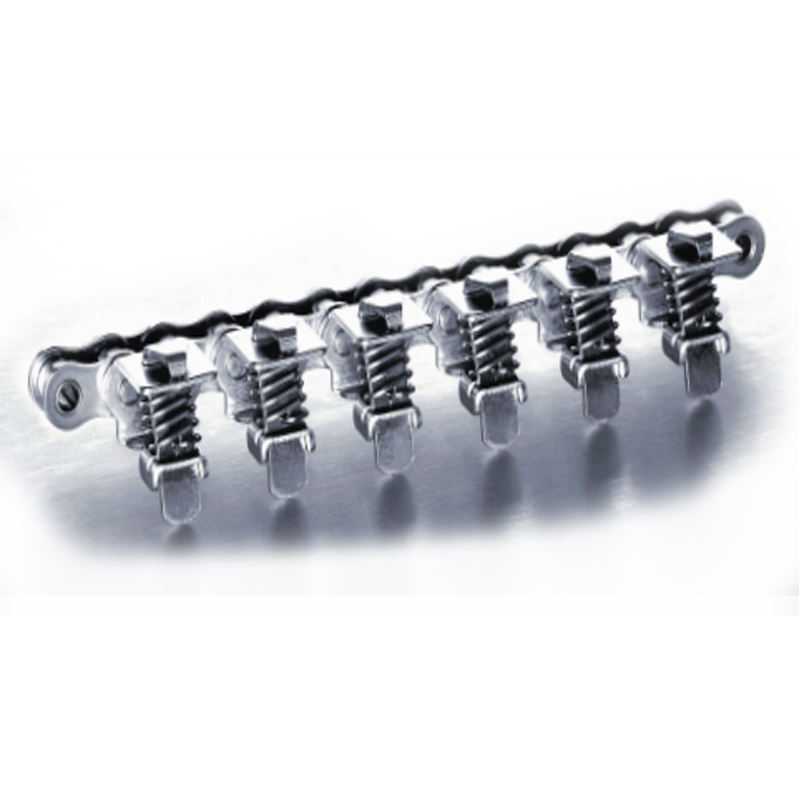

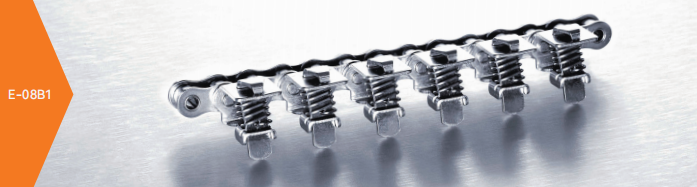

1 Tip Clamp (Type E) 08B1GC-E Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

Raydafon Group's 1 Tip Clamp (Type E) 08B1GC-E Stainless Steel Gripper Roller Chain is essential for form fill and vacuum seal wrapping, offering superior durability and precision. Ideal for industrial professionals, it enhances efficiency and reliability, solving sealing challenges with unmatched quality and performance.
Send Inquiry
Product Description

1 Tip Clamp (Type E) 08B1GC-E Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

Product Description
1 Tip Clamp (Type E) 08B1GC-E Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping
08B
1
GC
A
SS
Chain Size
Strand
Gripper Chain
Type
Base Chain Material
1 Tip Clamp (Type E) 08B1GC-E Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

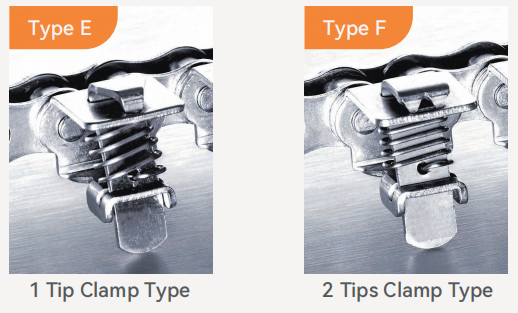

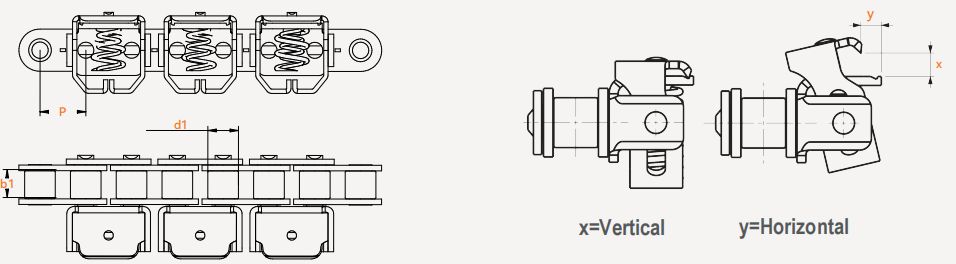

1 Tip Clamp (Type E)
Gripper with 1 Tip - The holding force depends on the material and the Spring coils & Dia. of Spring.
Code
DIN / ISO
Material
Pitch
Inside Width
Roller Dia.
Clamp Force
Tensile Strength
Base Chain
Clamp
Spring
P mm
b1 Max
mm
d1 Max
mm
Q-C
N
Q Min
kN
08B1GC-E
08B-1
SS
SS
SS
12.700
7.75
8.51
15
15.0
08B-1
NP
SS
SS
12.700
7.75
8.51
15
18.0
With more than 20 years experience of stainless steel chains production, we are becoming one of the leading manufacturers in China. After continuous study and investment, we now have almost all popular Gripper Chain models. Those high-performanced chains are widely welcomed by both OEM and after-market, domestic and overseas customers.
1 Tip Clamp (Type E) 08B1GC-E Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

Gripper Chain Features

1.Gripper Chains with Base Chains available both in Nickel Plated and Stainless Steel, for excellent corrosion
resistance;
2.Stainless springs are made of Japan-imported material which ensure the clamping force always;
3.For stainless steel base chain, Pin & Bush are made of AISI 630HT which provides outstanding wear-resistance;
4.Supplied in Pre-streched and matched strands which guarantee trouble-free machine set-up;
5.Furthermore, Lube-free Nickel Plated chain version is also available upon request.
Applications
1 Tip Clamp (Type E) 08B1GC-E Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping
1 Tip Clamp (Type E) 08B1GC-E Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

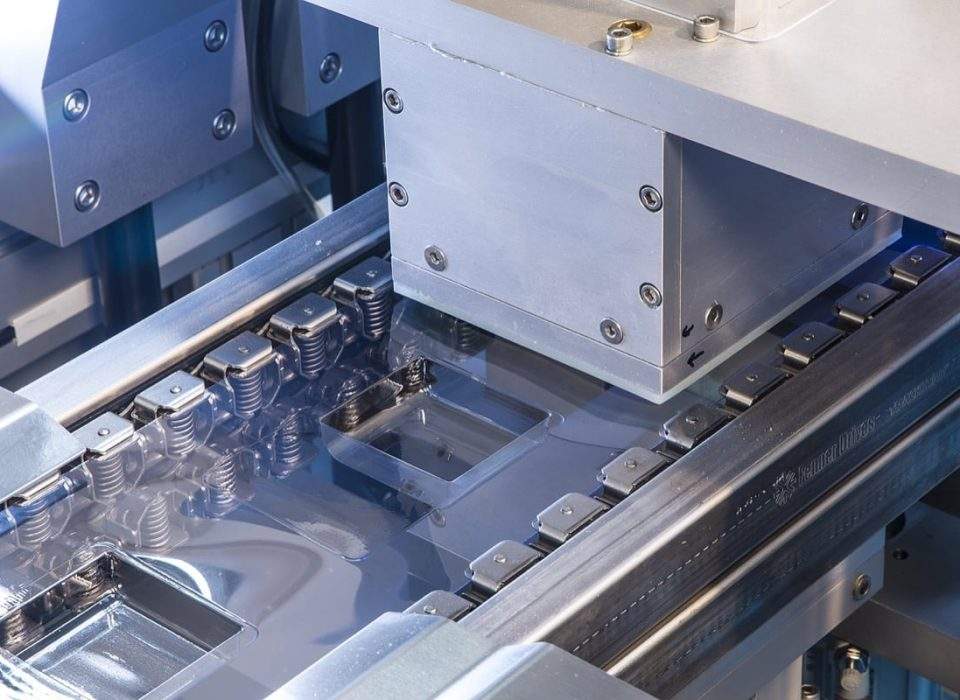

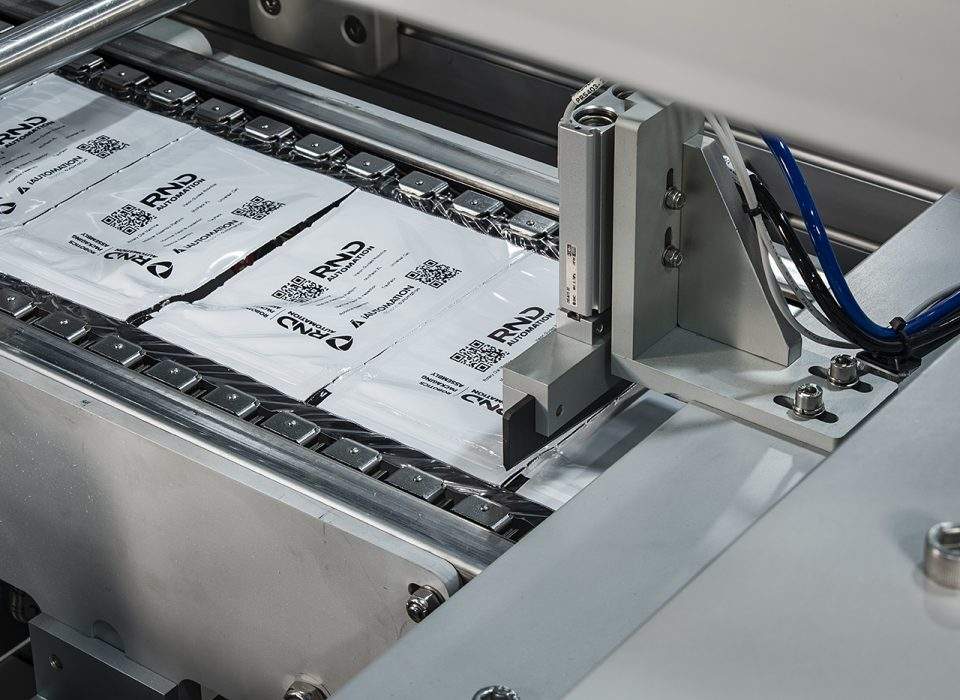

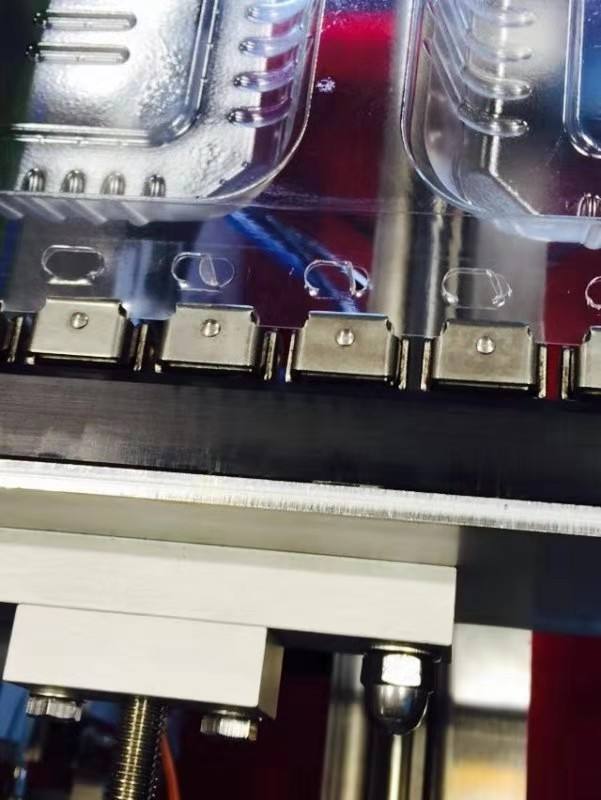

Gripper chains are widely used in various industries for Form, Fill and Vacuum Seal wrapping applications

--Food Industry: Packaging for Ham, sausage, cheese, bread, fish etc.
--Electronics Industry: Packaging for wires etc.
--Medical Industry: Packaging for injection syringe, pharmaceutical etc.
For more types，Please click here！

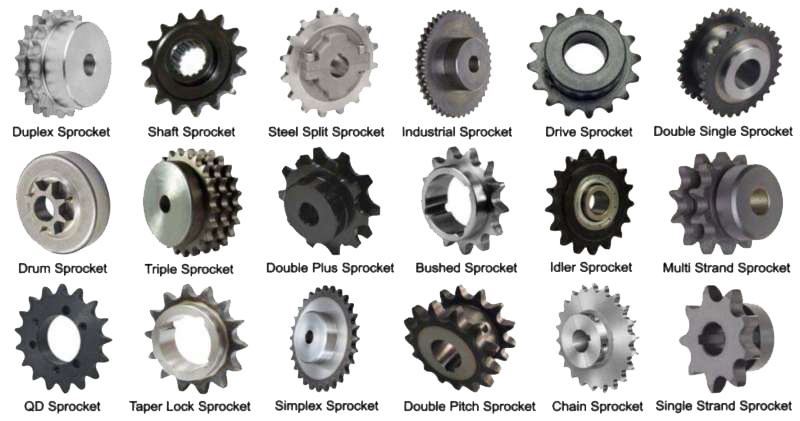

We provide chain matching sprockets with various specifications, which can be customized according to your drawings
1 Tip Clamp (Type E) 08B1GC-E Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping
