Product Description

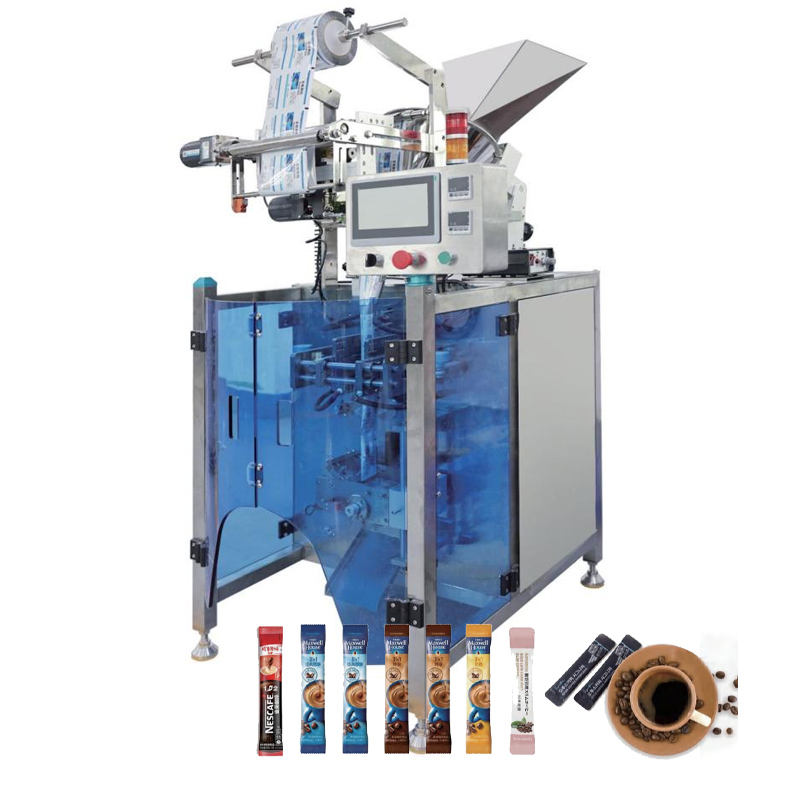

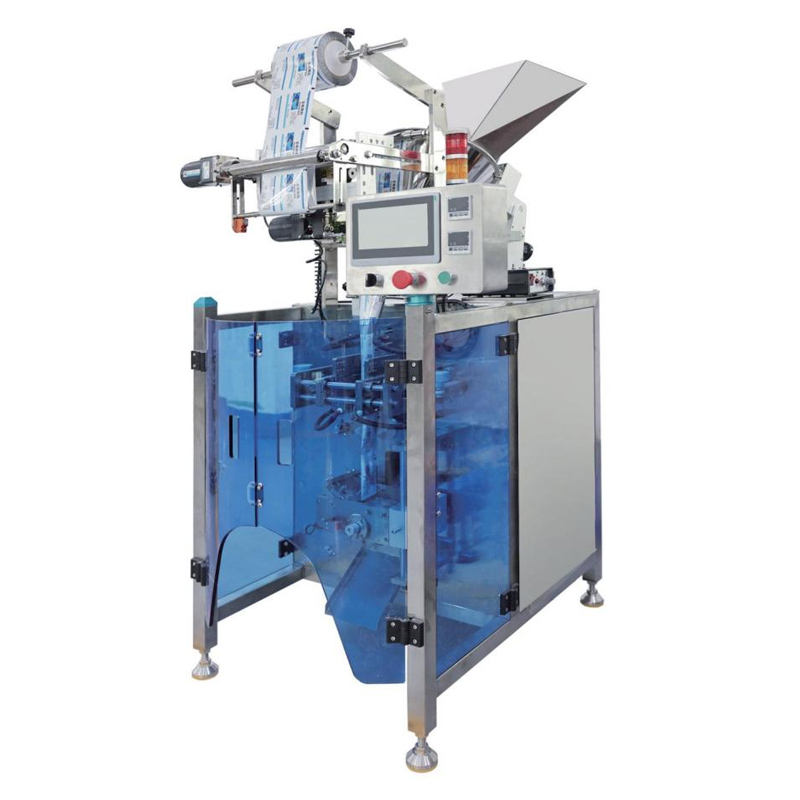

220GSFB High Speed Powder Packing Machine for Powder Products With Poor Fluidity

Products Description

High Speed Powder Packing Machine

This machine is suitable for industries such as chemical, daily chemical, food, medicine, and health products, such as liquid
glue, hot melt adhesive, syrup, honey, enzyme solution, shampoo, seasoning sauce, mouthwash, toothpaste, ointment, etc.

Equipment Characteristic

1. filing、 metering、 bag making、 seaing、 cuting、 hot pressing、 batch number etc. can be automatically completed during thepackaging process, and the positioning of the photoelectric tracking mark does not need to be adjusted.

2. Pure electric, using three stepping motors, lighter in action, more streamlined in structure, easy to maintain and easy to maintain

3. nteligent controlsvstem, chinese and Enolish loD display, 0nlv need to set the parameters to precisely controlthe operation of thesystem.

4、 The heat sealer controls the uniform heating of the bag side, and the temperature of the upper and lower sides can be adjustedseparately. 5、 Replacing the cutter can realize one-line, pattern-shaped cuting, one-line joint cutting, stable and reliable bag cuting without bagjamming, easy operation, and can be equipped with a wheel type coding machine to arrange batch numbers, shelf life, etc.

Features

1. Pure electric, using a three-step motor, with lighter movement, simpler structure, easy maintenance and upkeep.

2. The speed can be adjusted by pressing the up and down keys on the PLC screen display without adjusting any parameters 3. Low noise reduction, high precision, and easy cleaning. 4. The chassis is customized with 304 stainless steel, not wrapped with stainless steel plates 5. The device has high compatibility, and different specifications can be achieved by changing the mold. Solid state cooling seats are used

Basic Parameters

Product name	220GSFB
Filling volume range	1-30g
Bag width	(back seal)L:20-145mm;W:20-100mm (side seal)L:20-145mm;W:30-100mm
Dose range	screw feeder
Control system	PLC Control system
Voltage	220V50-60HZ/2KW
Speed	80-150bag/min
Weight	280KG
Dimension	L900W700H1720 mm
Packing material	BOPP/PE/PET,any heat sealing laminated fim roll
