4 Grooves SPZ Gear Shaft and Belt Pulley Generator Pulley

4 Grooves SPZ Gear Shaft and Belt Pulley Generator Pulley4 grooves SPZ gear shaft and belt pulley generator pulleyProduct DescriptionApplicationPulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, pro......

4 Grooves SPZ Gear Shaft and Belt Pulley Generator Pulley

4 grooves SPZ gear shaft and belt pulley generator pulley

Product Description

4 Grooves SPZ Gear Shaft and Belt Pulley Generator Pulley

Application

Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.

4 Grooves SPZ Gear Shaft and Belt Pulley Generator PulleyBelt SectionSPZ
SpecificationSPZ140-04
Product CodeCP049841
Groove Number4
Pitch Diameter (P)140mm
Outside Diameter (O)144mm
J111mm
L32mm
M20mm
F52mm
Match Taper Bush2012
Weight3Kg
Surface TreatmentBlack E-coat
BalanceStatic

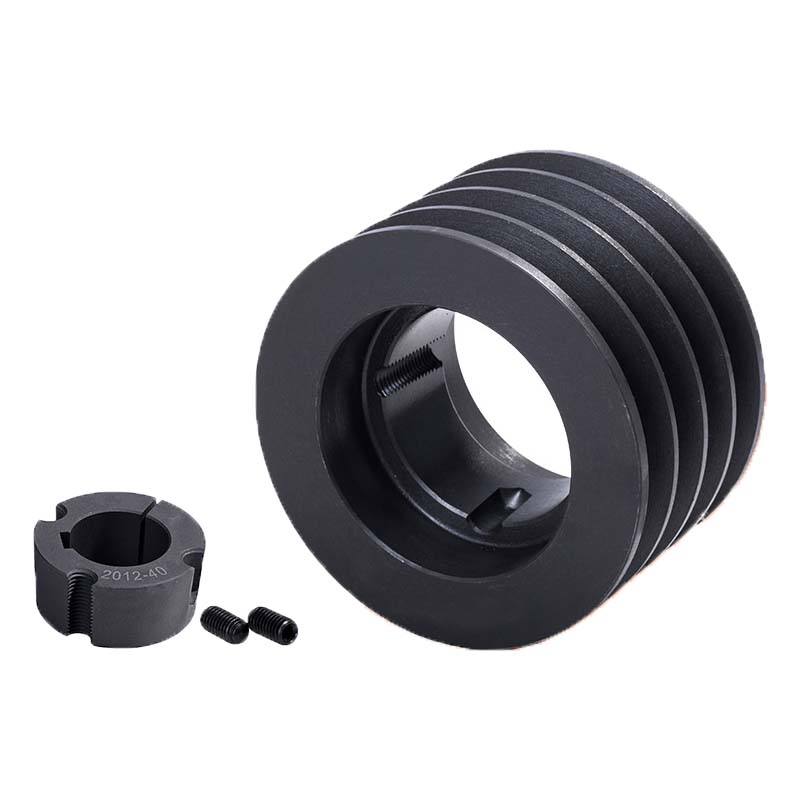

Pulley Detail Photo

4 Grooves SPZ Gear Shaft and Belt Pulley Generator Pulley

Grooved pulley belt pulley Drawing & Belt pulley 3D model

4 Grooves SPZ Gear Shaft and Belt Pulley Generator Pulley4 Grooves SPZ Gear Shaft and Belt Pulley Generator Pulley

SPZ 4 grooves v pulley Dimensions / Catalog

Product Name:V Belt Pulley

Belt Section:SPZ

Grooves:4

4 Grooves SPZ Gear Shaft and Belt Pulley Generator Pulley

Equipped with Bush:

European standard taper bush
BushBore Range (mm)
161014,15,16,18,19,20,22,24,25,28,30,32,35,38,40,42
201218,19,20,22,24,25,28,30,32,35,38,40,42,45,48,50
251720,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60
302025,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75
303025,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75
4 Grooves SPZ Gear Shaft and Belt Pulley Generator Pulley353535,38,40,42,45,48,50,55,60,65,70,75,80,85,90

Package&Shipping

4 Grooves SPZ Gear Shaft and Belt Pulley Generator Pulley

Other Products

4 Grooves SPZ Gear Shaft and Belt Pulley Generator Pulley

Please contact us or go to homepage for more product information.
