7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank
  • 7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank
  • 7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank
  • 7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank
  • 7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank
  • 7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank

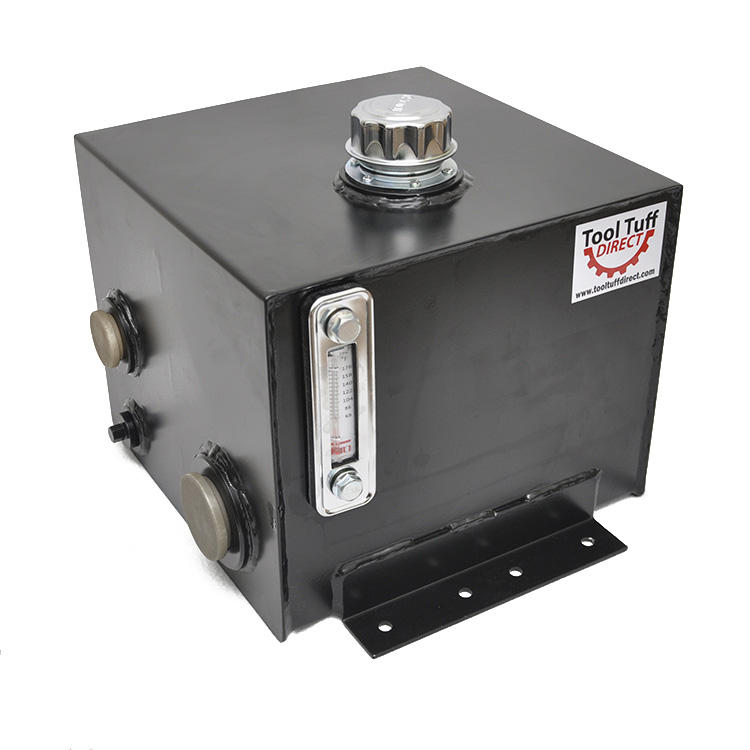

7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank

7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir TankProduct Description7-Gallon Hydraulic Fluid Reservoir TankBrand Name:7-Gallon Hydraulic Fluid Reservoir TankFeatures & Specs:?7-Gallon Fluid CapacityHeavy duty steel constructionBuilt-in Sight Gauge/Temp Gauge ComboFactory Leak-TestedHeavy D......

7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank

Product Description
7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank

7-Gallon Hydraulic Fluid Reservoir Tank


7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank
Brand Name:
7-Gallon Hydraulic Fluid Reservoir Tank

Features & Specs:



?7-Gallon Fluid Capacity

Heavy duty steel construction

Built-in Sight Gauge/Temp Gauge Combo

Factory Leak-Tested

Heavy Duty 12 ga Sheet Metal Construction

2" wide fill port

Dual 2" NPT threaded ports

1.25" NPT threaded port

4-hole mounting plates on each side (max 7.875" apart between the two outer holes, and the holes in between are 2" apart). Center-Center Distance between the two mounting brackets across the tank is 16"

40 micron breather cap with 1/4-turn release

Magnetic, sealed drain plug

Internally baffled

Dimensions: 17.5" wide (including bracket width)x 14" long x 12" high (14.5" high with cap)

Weight: 41.5 lb

Comes with poly plugs for all ports (may not be rated for use in all applications, but it'll keep it from leaking on it's way to you)

Our Company
7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank
7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank

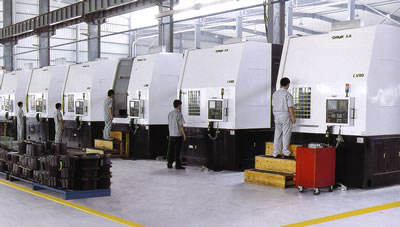

Grinding Workshop

7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank

CNC Teeth Machine

7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank

CNC Lathe Workshop

7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank

Figuring Center

7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank

CNC Workshop

7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank

Heat Treatment Machine

7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank

3D Measurement Machinery

7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank

Gear Teeth Profile Test Machines

7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank

Heat Treatment Workshop

7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank

Tooth Profile Workshop

Material available

Low carbon steel, C45, 20CrMnTi, 42CrMo, 40Cr, stainless steel. Can be adapted regarding customer requirements.

Surface treatment

Blacking, galvanization, chroming, electrophoresis, color painting, ...

Heat treatment

High frequency quenching heat treatment, hardened teeth, carbonizing, nitride, ...

Certifications
7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank
FAQ

Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.

Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.

If you have another question, please feel free to contact us.

Packing & Delivery
7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank
Services

Also I would like to take this opportunity to give a brief introduction of our Ever-Power company:

Our company is a famous manufacturer of agriculture gearbox,worm reduce gearbox, PTO shafts, Sprockets ,rollar chains, bevel gear, pulleys and racks in china.

We have exported many products to our customers all over the world, we have long-time experience and strong technology support.

Some of our customer :
Italy: COMER,GB GEABOX ,SATI, CHIARAVALLI, AMA , Brevini
Germany: SILOKING ,GKN ,KTS
France: Itfran, Sedies
Brazil: AEMCO ,STU
USA: John Deere , BLOUNT, Weasler, Agco, Omni Gear, WOODS
Canada: JAY-LOR , CANIMEX ,RingBall
......

-Ø Our Company with over twelve year's history and 1000 workers and 20 sales.
-Ø With over 100 Million USD sales in 2017
-Ø With advance machinery equipments
-Ø With large work capacity and high quality control, ISO certified.
......


you also can check our website to know for more details, if you need our products catalogue, please contact with us.

7-Gallon Hydraulic Parts Hydraulic Fluid Reservoir Tank
Hot Tags: 7-Gallon Hydraulic Fluid Reservoir Tank, Hydraulic Parts Supplier, Hydraulic Fluid Tank Manufacturer, Raydafon Transmission, China Hydraulic Factory
