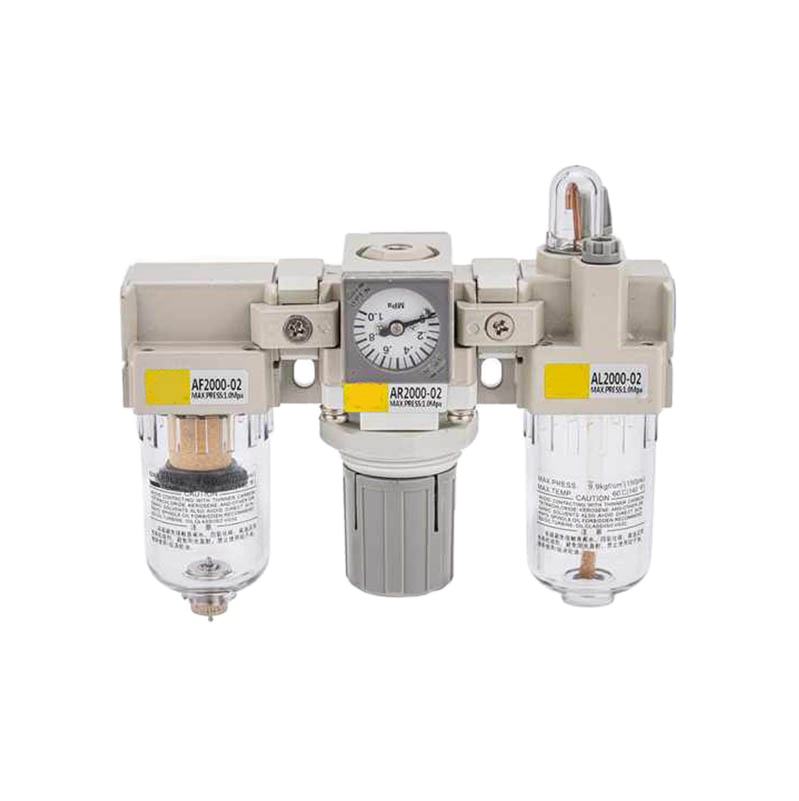

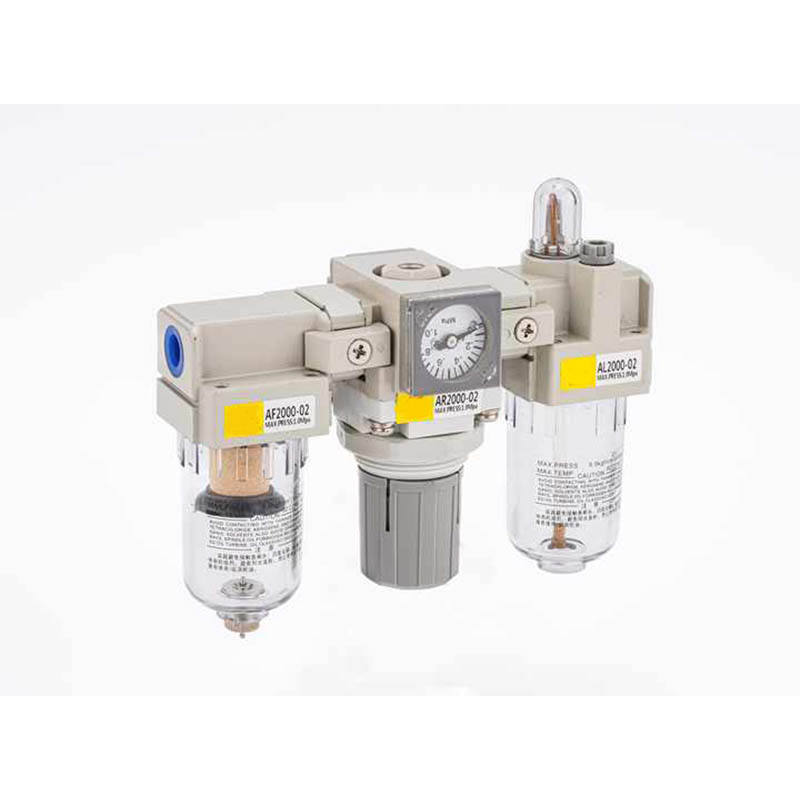

AC Series AC2000-01/02 Air Filter Combination F.R.L Combination Source Treatment Unit Pneumatic for Compressed Air System

Raydafon Group's AC Series AC2000-01/02 Air Filter Combination F.R.L Combination Source Treatment Unit optimizes compressed air systems with superior filtration and reliability. Ideal for industrial users, it ensures clean air, enhances efficiency, and reduces maintenance costs through advanced design and durable materials, offering a trusted solution for peak performance.

Send Inquiry

Product Description

AC Series AC2000-01/02 Air Filter Combination F.R.L Combination Source Treatment Unit Pneumatic for Compressed Air System

Products Description

Advantages of AC Series Air Source Treatment Unit
Automatic Lubrication:
Adds precise amounts of oil to compressed air, ensuring proper lubrication of pneumatic tools and equipment, reducing friction and wear.

Extended Equipment Lifespan:
Prevents rust and corrosion in pneumatic components, prolonging the operational life of machinery and tools.

Improved Efficiency:
Enhances the performance of pneumatic tools by reducing mechanical resistance and ensuring smooth operation.

Adjustable Lubrication Rate:
Equipped with a user-friendly adjustment mechanism to control the amount of oil supplied, allowing customization based on specific application needs.

Compact Design:
Easily integrates with other air source treatment components such as filters and regulators, saving space without compromising functionality.

AC1000-5000 series three-stage air source processor 1. Prepare air correctly for all types of compressed air tools and equipment 2. Filter removes solid particles and condenses them Use compressed air 3. Stepless adjustment to maintain air pressure over a wide flow range 4. Protect your pneumatic tools and extend their lifespan

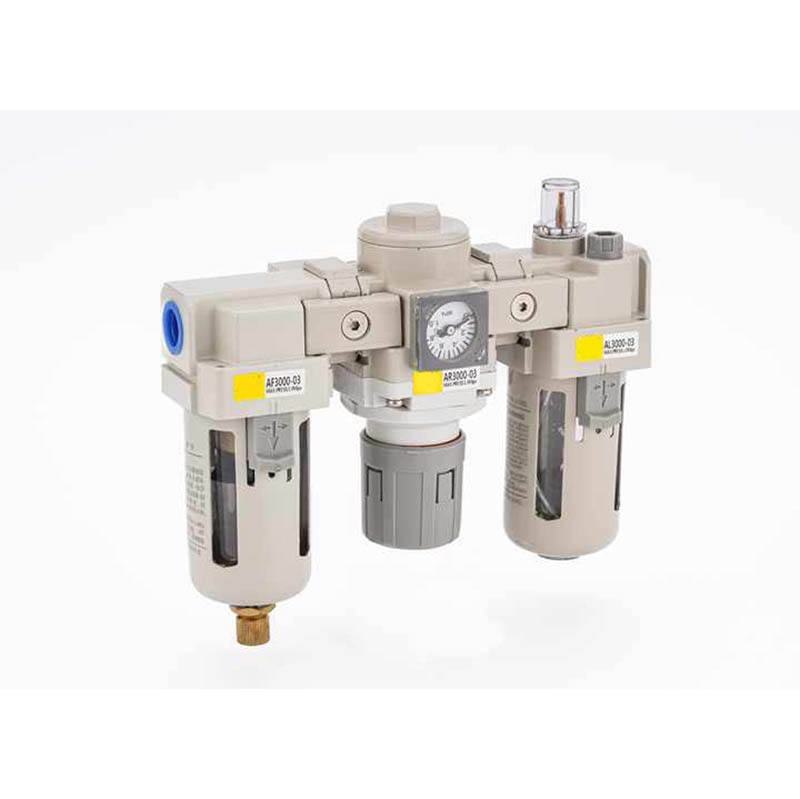

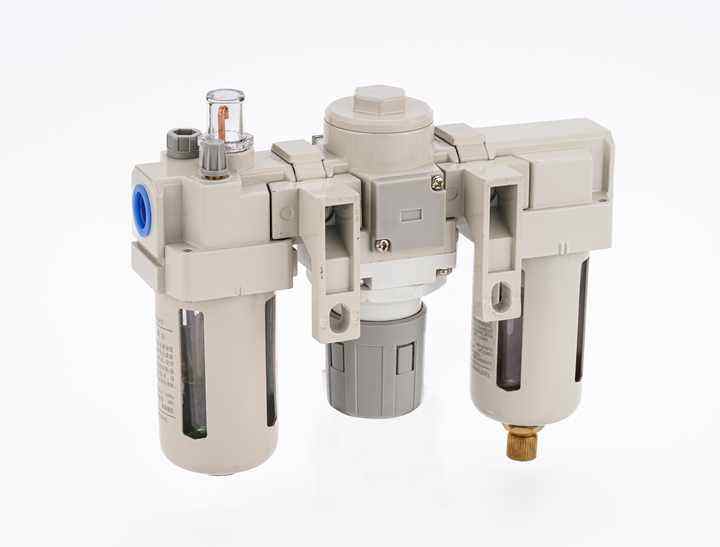

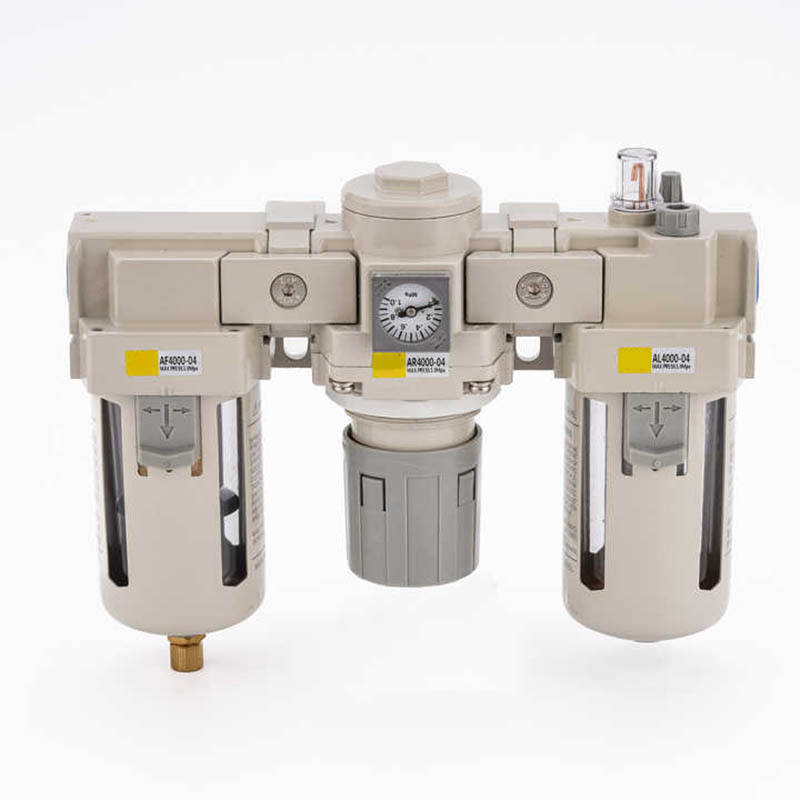

AC1000-5000 Series Air Filter Combination （F、R、L Combination）
Proof Pressure	1.5Mpa (15.3kgf/cm²)
Max. Working Pressure	1.0Mpa (10.2kgf/cm²)
Working Temperature	5-60℃
Filter aperture	5 um (2/10/20/40/70/100um is optional)
Suggest oil	ISOVG32 Turibine 1 oil
Cup material	PC
Cup hood	Only available for AC3000-5000 (iron material)
Pressure regulating range	AC1000: 0.05-0.7Mpa (0.51-7.1kgf/cm²) AC2000-5000: 0.05-0.85Mpa (0.51-8.7kgf/cm²)

Applications of AC Series Air Source Treatment Unit
Pneumatic Tools:
Provides lubricated air to tools such as drills, grinders, nail guns, and impact wrenches, ensuring optimal performance and durability.

Industrial Automation:
Ensures smooth operation of pneumatic cylinders, actuators, and valves in automated production lines.

Manufacturing and Assembly Lines:
Commonly used in industries like automotive, electronics, and machinery production to guarantee reliable lubrication for
pneumatic systems.

Air Compressors:
Enhances the air output quality by introducing necessary lubrication, protecting downstream equipment from damage.

Construction Tools:
Supplies lubricated air to pneumatic tools used in construction, such as jackhammers and air hammers, reducing downtime and maintenance.

Textile Industry:
Ensures seamless operation of pneumatic machines in textile manufacturing by providing clean and lubricated air.

Packaging Equipment:
Maintains efficient functioning of pneumatic-based packaging machinery, such as sealing and cutting tools, by delivering lubricated air.

Painting and Coating Systems:
While lubrication is not directly applied to the painting process, some pneumatic systems require lubricated air to maintain smooth operation.

For more details, please click here to contact us！
