Advanced hydraulic telescopic cylinder with multi-stage working width adjustment controlled from the cab. Integrated sub-plow device delivers stubble coverage above 95% in high-residue fields. Fits Category II / III tractors in the mid to heavy horsepower range.

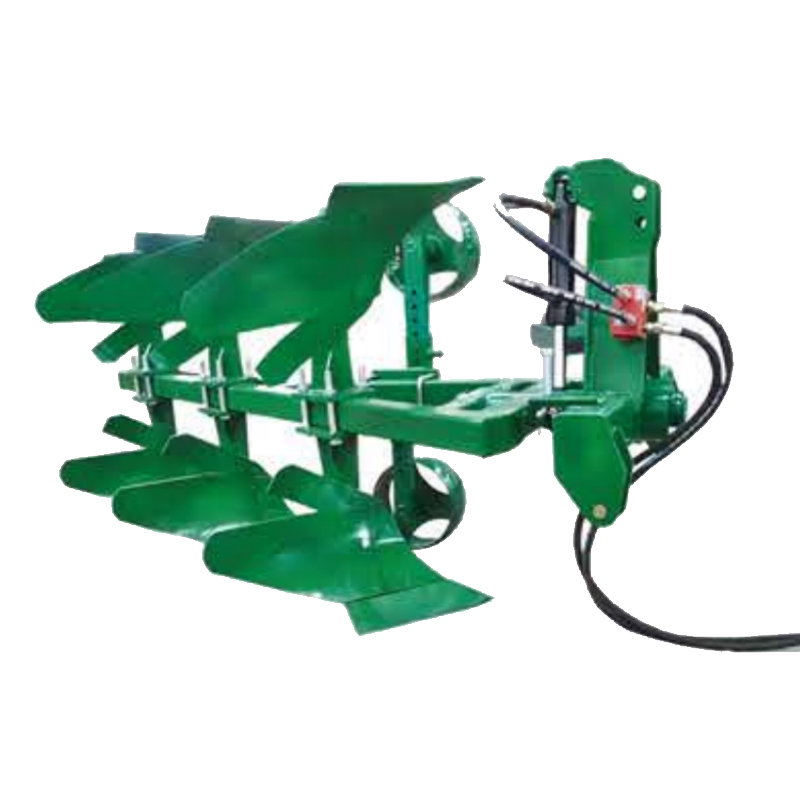

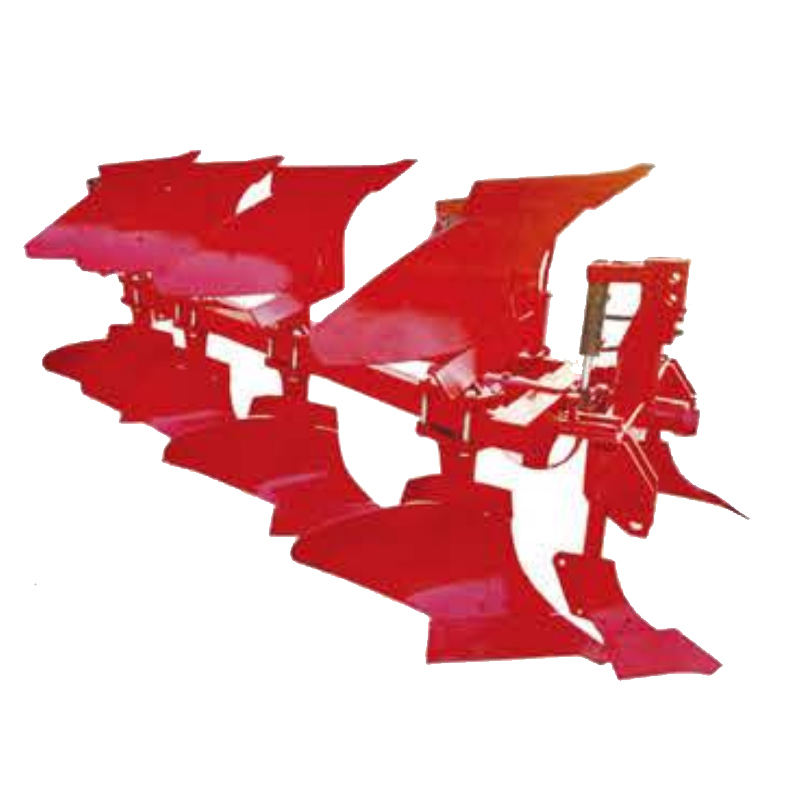

The 1LF hydraulic reversible plow uses an advanced hydraulic telescopic cylinder to reverse the plow body at the headland and to adjust the working width in multiple stages. The operator selects the desired width from the cab without leaving the seat, so the tractor hydraulic reversible plow can match different soil conditions and field layouts in a single pass. The integrated sub-plow device is mounted as one piece with the main plow body, which is what drives the high stubble coverage rate.
Not every field is the same. In lighter soils, a wider working width means fewer passes and lower fuel consumption per hectare. In heavy or wet soils, narrowing the working width reduces draft load on the tractor and prevents wheel slip. The hydraulic telescopic cylinder on the 1LF series allows the operator to shift between width settings in stages, without a tool change and without leaving the cab.
Residue management is one of the main reasons buyers choose a hydraulic reversible plow. In high-stubble fields the sub-plow device is designed as an integrated part of the main frame, so both the main body and the sub-plow work on the same pass. This construction delivers a stubble coverage rate above 95%, which supports moisture retention and reduces the risk of residue interference in the next seedbed preparation pass.
Drives both the plow reversal and the multi-stage width adjustment. Central to the reversible function of the 1LF series.
The soil-engaging components that cut and invert the furrow slice. Ground and heat-treated for wear resistance in abrasive soils.
Mounted as one piece with the main frame. Handles residue in high-stubble fields and delivers the >95% coverage rate.
Welded steel frame designed to carry the combined load of the main plow body and the integrated sub-plow device under continuous draft.
Turns the plow body at the headland so the operator can work the field in either direction without lifting and repositioning the tractor.
Standard Category II / III mounting for tractors in the mid to heavy horsepower range. Matched to the plow's draft requirements.
The primary scenario the 1LF series was designed for. After wheat, corn or rice harvest, the field carries a heavy residue load that a conventional plow cannot cover cleanly. The integrated sub-plow device works alongside the main body on the same pass, giving over 95% stubble coverage. That coverage matters for the next crop: it holds soil moisture, suppresses weeds, and reduces the risk of residue interfering with the following seeding operation.
On light or medium soils where draft load is low, the operator can widen the working width to reduce the number of passes per hectare. Fewer passes means lower fuel consumption and less soil compaction from tractor traffic. The multi-stage width adjustment lets the operator find the widest setting the tractor can pull comfortably in the current soil condition, without having to buy a second plow with a different fixed width.
Heavy clay and wet soils impose the highest draft load on the tractor. In these conditions the 1LF plow can be narrowed in stages to match the tractor's available drawbar pull, so the tractor maintains traction without excessive wheel slip. This is a key reason buyers choose a hydraulic reversible plow over a fixed-width unit: the same plow covers both the light-soil and heavy-soil ends of the working range.
The 1LF hydraulic reversible plow is manufactured under a documented process covering frame welding, hydraulic cylinder assembly, plow body machining and final functional test. The hydraulic telescopic cylinder and the reversing mechanism are bench-tested before the plow body is mounted. Each unit ships with an operation sheet covering plow width setting and hydraulic pressure guidance. OEM and private-label production available. Review our factory, inspection equipment and why customers choose us.
A hydraulic reversible plow turns the plow body at the headland using a hydraulic cylinder, so the operator can work the field in either direction without lifting and repositioning the tractor. Compared with a fixed plow, the hydraulic reversible plow saves time at the headland, reduces soil compaction in the headland area, and — in the 1LF series — also allows the working width to be adjusted in multiple stages from the cab.
In high-stubble fields the 1LF hydraulic reversible plow delivers a stubble coverage rate above 95%. This is achieved through the integrated sub-plow device that is mounted as one piece with the main frame, so both the main body and the sub-plow work on the same pass. Higher coverage supports moisture retention and cleaner seedbed preparation.
Different soil conditions require different working widths. In light soils a wider width reduces the number of passes and saves fuel. In heavy or wet soils a narrower width lowers the draft load and prevents wheel slip. The hydraulic telescopic cylinder on the 1LF plow lets the operator move between these width settings in stages, without leaving the cab and without a tool change.
The 1LF plow uses a standard three-point hitch linkage that fits Category II / III tractors in the mid to heavy horsepower range. The correct plow width setting depends on tractor horsepower, tire type, soil texture and moisture at the time of plowing. Send us your tractor model and typical soil type and we will recommend the closest 1LF configuration from the current production range.
MOQ depends on the specific width configuration and whether the plow is ordered as a single unit or as part of a consolidated agricultural machinery order. Send us your required model, quantity and destination port, and our sales team will confirm MOQ, unit price and production schedule in writing. Standard configurations generally ship faster than customized builds.
Yes. OEM and private-label production is available. We can apply your brand nameplate, custom paint colour and branded packaging. Share your branding requirement and we will confirm feasibility and any additional lead time.
Send us your tractor model, tire size and typical soil type. We will reply with the recommended 1LF configuration, plow width options, unit price and lead time.
