Product Description

American Standard 8V Series Cast Iron Ten-Groove Pulley Sheaves With Split Taper Bushings

Products Description

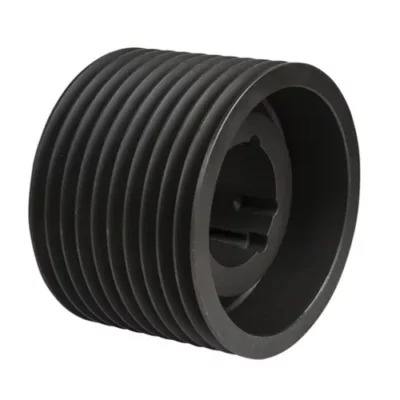

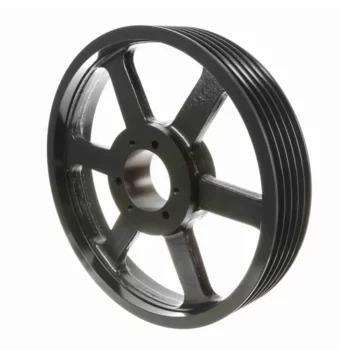

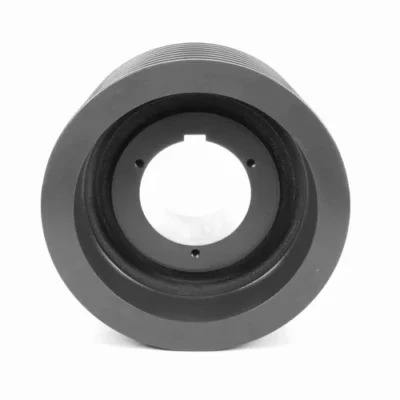

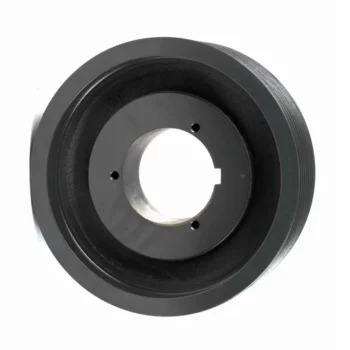

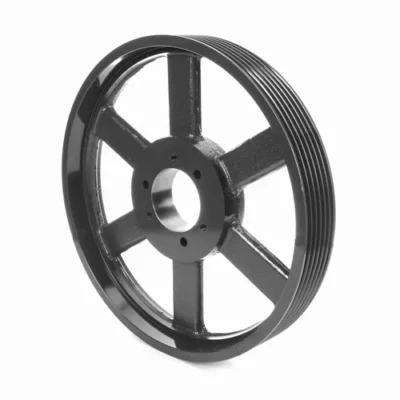

8V Series Cast Iron Ten-Groove Pulley Sheaves with Split Taper Bushings

The 8V series ten groove tapered bushing pulley is used for 8V and 8V V-belt. They range in diameter from 12.5 "to 64.0". According to the pulley size, they use U1 or W1 split taper bushings, which we also have in stock. Most of our ten groove 8V split taper pulleys are made of high strength grade 35 cast iron, coated with phosphate coating and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

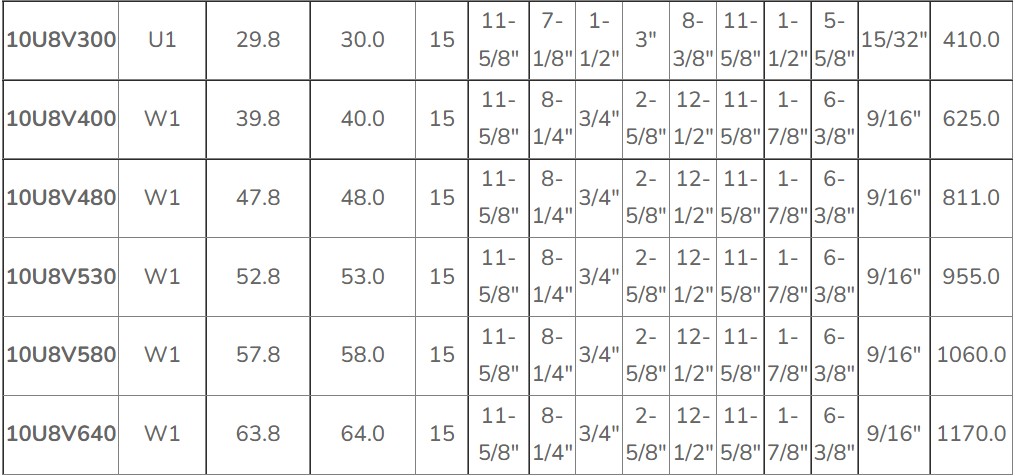

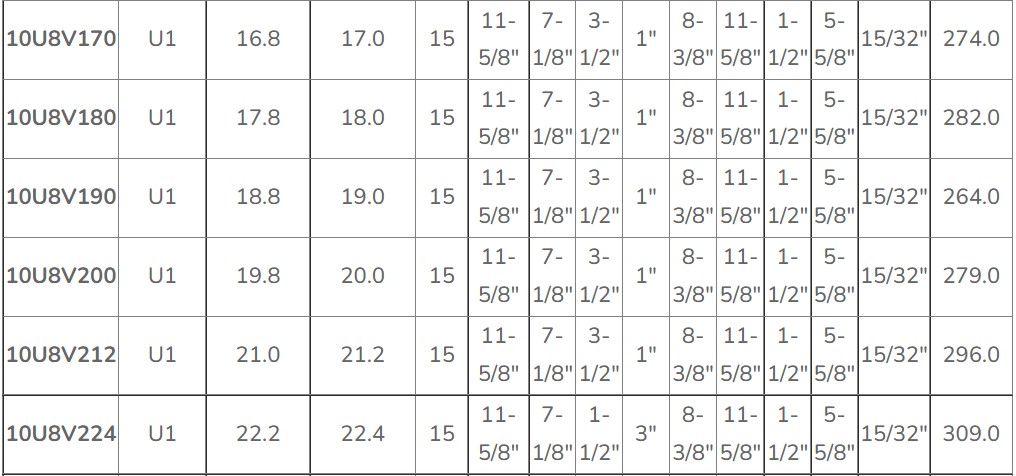

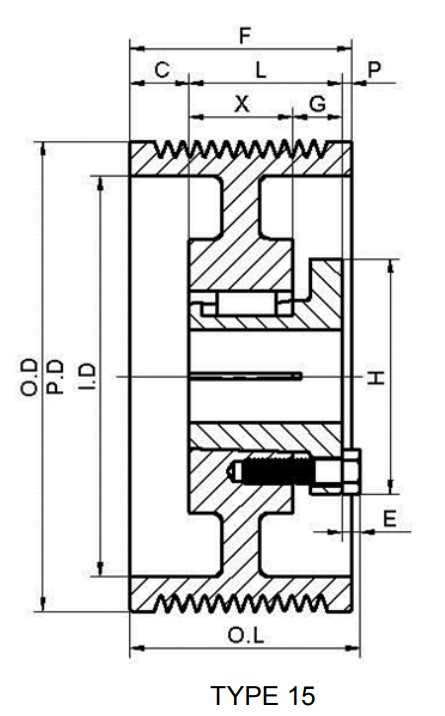

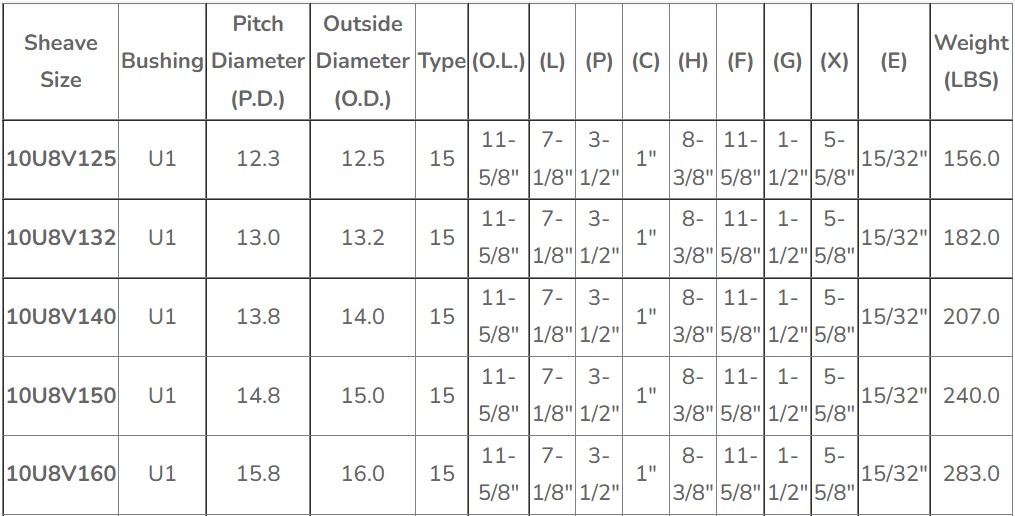

Ten-Groove 8V Split Taper Sheave Size Chart

For more details, please click here to contact us！

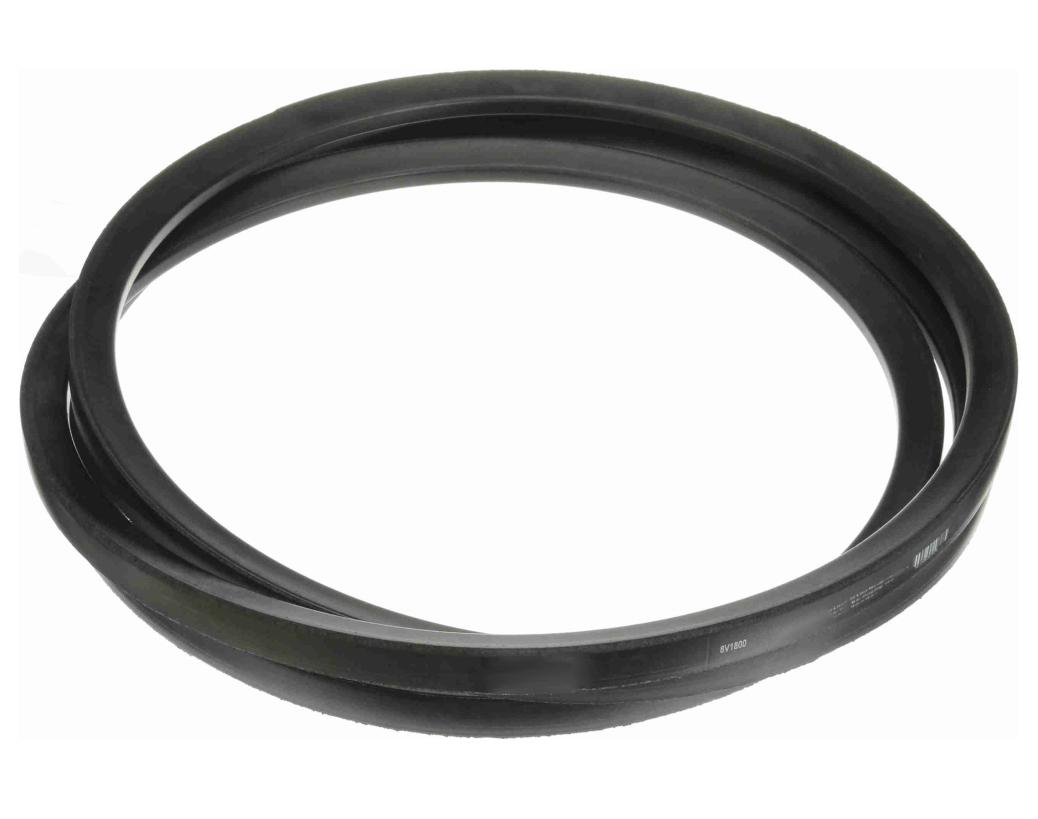

Relevant supporting 8V, 8V belt series V-belt (1) 8V series V-belt Classic 8V series V-belts have a top width of 0.63 ", a thickness of 0.53", and an angle of 38 °. In addition, the 8V V-belt is one of the oldest V-belts in the industry. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 8V series v-belts we provide are manufactured according to ISO 9001 specifications, which are oil and heat resistant and can be directly interchanged with other brands. They are composed of natural rubber compound and polyester rope, and are covered with a mixture of cotton and polyester, with high durability.

(2) 8V series ribbon V-belt The 8V series v-belts are part of the "classic" series of v-belts because they are one of the oldest styles used and one of the most common styles. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each belt (belt/rib) of 8V series v-belt is 1.0 inch.

Relevant open tapered bushing Split tapered bushes are one of the most commonly used bushes because of their high overall strength, ease of installation and unloading, and high retention for successfully connecting the shaft to the drive or idler gear assembly. The open tapered bushing is used for various pulleys, conveyor pulleys, and sprockets. Our high-quality split taper bushing is made of high-quality steel or casting material and can be interchanged with any other brand. It is designed as a flange bushing with a tapered cylinder and a slit on each side. We have G series to W2 series split tapered bushings, and 0.375 inch to 7.438 inch inch inch and metric hole diameters. For more information or to get a quote for our high-strength open taper bushing, please contact our customer support team and we will be happy to help you.

Working principle and characteristics of pulley The working principle of the belt pulley is that the belt connects the driving belt pulley and the driven belt pulley, and the power is driven by the friction generated by the friction between the belt pulley and the belt. The belt pulley drive operates stably, with low noise, small vibration, simple structure and convenient maintenance. The disadvantage is that it is difficult to install, easy to slip after a long time of use, and the transmission efficiency cannot be guaranteed. The taper sleeve pulley is a new type of pulley widely used in Europe and America. It consists of two parts. A conical sleeve is connected between the belt pulley and the mounting shaft, and then locked with an Allen wrench to fix the screw. The belt pulley solves the complicated problem of traditional belt pulley installation. It doesn't need external force as before. Pullers, hammers and other items only need an Allen wrench to complete the installation. After installation and use, even if the pulley is worn and slippery, it is not necessary to replace the entire pulley at the same time. The utility model can continue to be used only by replacing a mounting cone sleeve, which can greatly reduce the use cost.

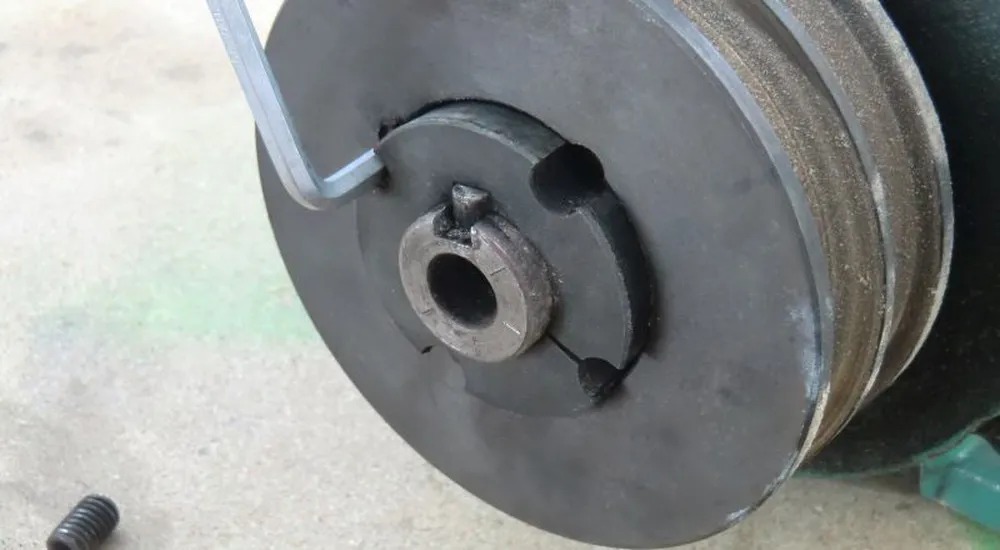

How do I remove the tapered bushing pulley? As the pulley is a commonly used transmission component in the manufacturing industry, there are European, American and national standards. Because of its unique physical structure, the tapered bushing pulley is easy to install and remove. It can play a very good auxiliary role in maintaining enterprise equipment and improving production capacity. How do I remove the tapered bushing pulley?

It is easy to remove the tapered bushing pulley, and all the prepared tools are relatively simple, such as a hexagon wrench corresponding to the screw type, a plastic or wood hammer, and some lubricants. I believe that manufacturing companies usually provide these three things. 1. Remove the screw from the mounting hole. 2. Remove the removed screws and lock them on the other side of the clamping seam. If it is found that it cannot be tightened when closing, it is necessary to take it out and add a little lubricating oil, or use the prepared rubber hammer to gently knock it out. 3. At this time, the belt pulley and taper sleeve have been separated; Just push the belt pulley forward a little, then twist the clamping seam with a screwdriver, loosen the opening of the clamping seam, and take out the key inside to easily remove the conical sleeve. Finally, remove the belt pulley to complete the removal of the conical sleeve belt pulley.

Applications of 8V Series Sheaves Belt pulley is generally used for long-distance power transmission, so it is widely used, such as the power output of small diesel engines such as tractors and automobiles. It is also suitable for mechanical transmission, such as processing equipment, textile machinery, lathes, forging presses, etc. It has a wide range of applications and obvious characteristics. Pulley drive has overload protection function; The center distance between the two shafts driven by the belt pulley has a wide adjustment range.

Technological Processing

Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.

Our also provides belts matching pulleys：https://planetary-gearboxes.en.Raydafon.com/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11
