Big Size Cast Iron v Belt Drive Pulley SPB Pulley
  • Big Size Cast Iron v Belt Drive Pulley SPB PulleyBig Size Cast Iron v Belt Drive Pulley SPB Pulley
  • Big Size Cast Iron v Belt Drive Pulley SPB PulleyBig Size Cast Iron v Belt Drive Pulley SPB Pulley
  • Big Size Cast Iron v Belt Drive Pulley SPB PulleyBig Size Cast Iron v Belt Drive Pulley SPB Pulley
  • Big Size Cast Iron v Belt Drive Pulley SPB PulleyBig Size Cast Iron v Belt Drive Pulley SPB Pulley
  • Big Size Cast Iron v Belt Drive Pulley SPB PulleyBig Size Cast Iron v Belt Drive Pulley SPB Pulley
  • Big Size Cast Iron v Belt Drive Pulley SPB PulleyBig Size Cast Iron v Belt Drive Pulley SPB Pulley
  • Big Size Cast Iron v Belt Drive Pulley SPB PulleyBig Size Cast Iron v Belt Drive Pulley SPB Pulley

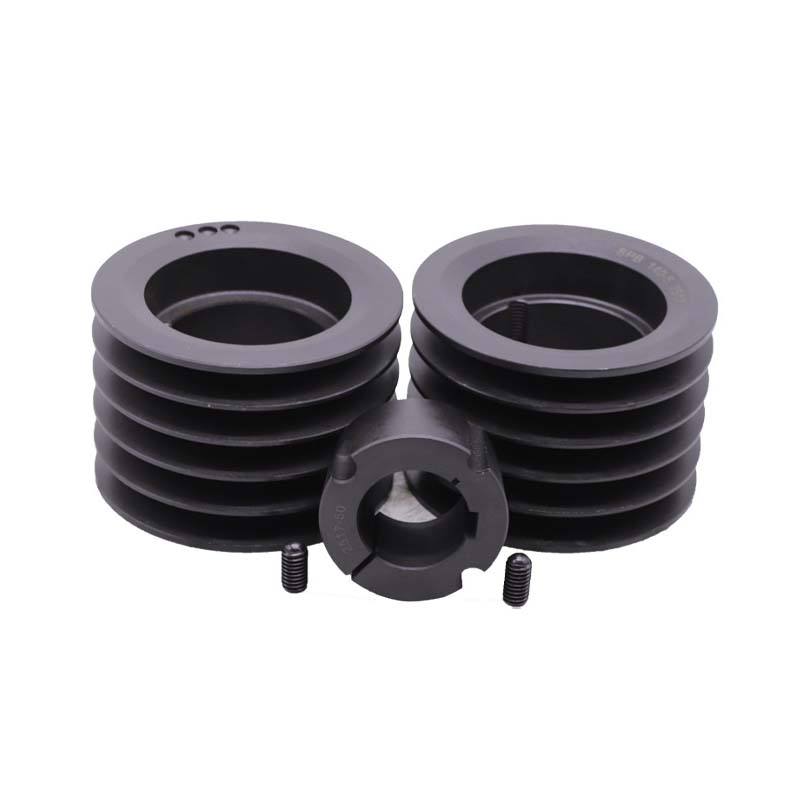

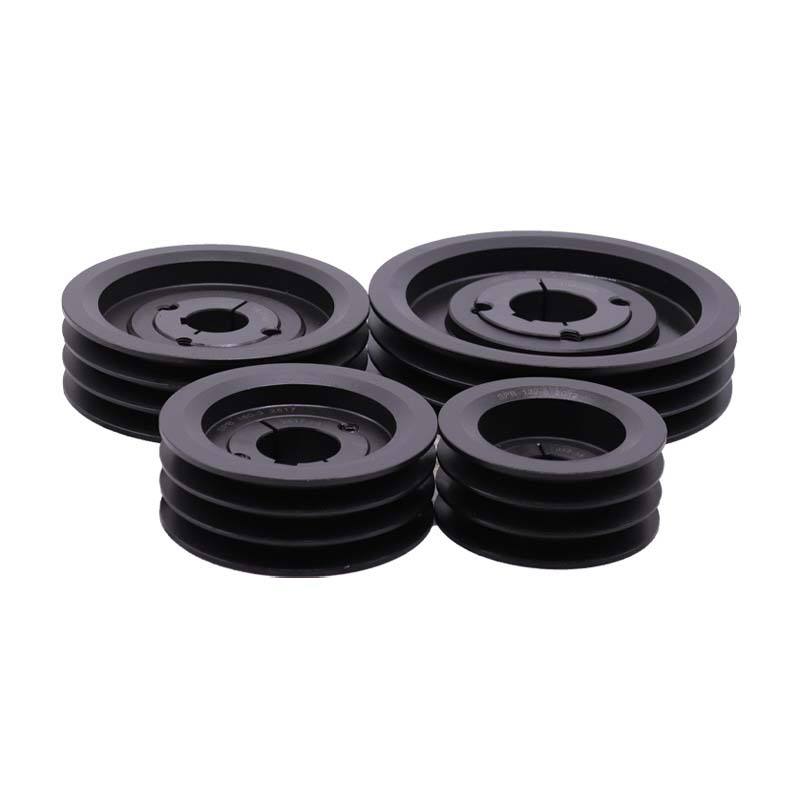

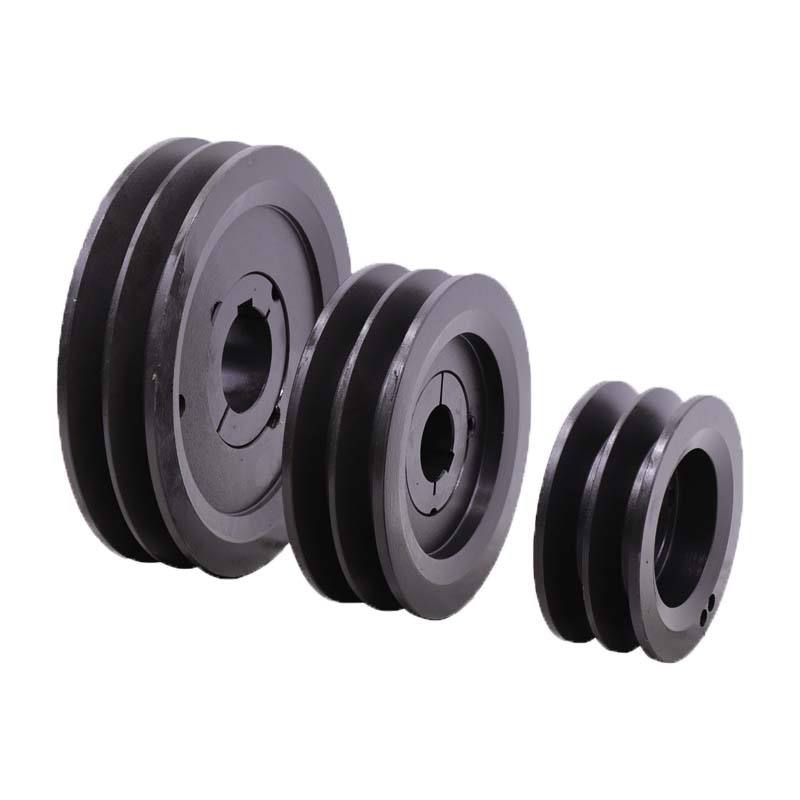

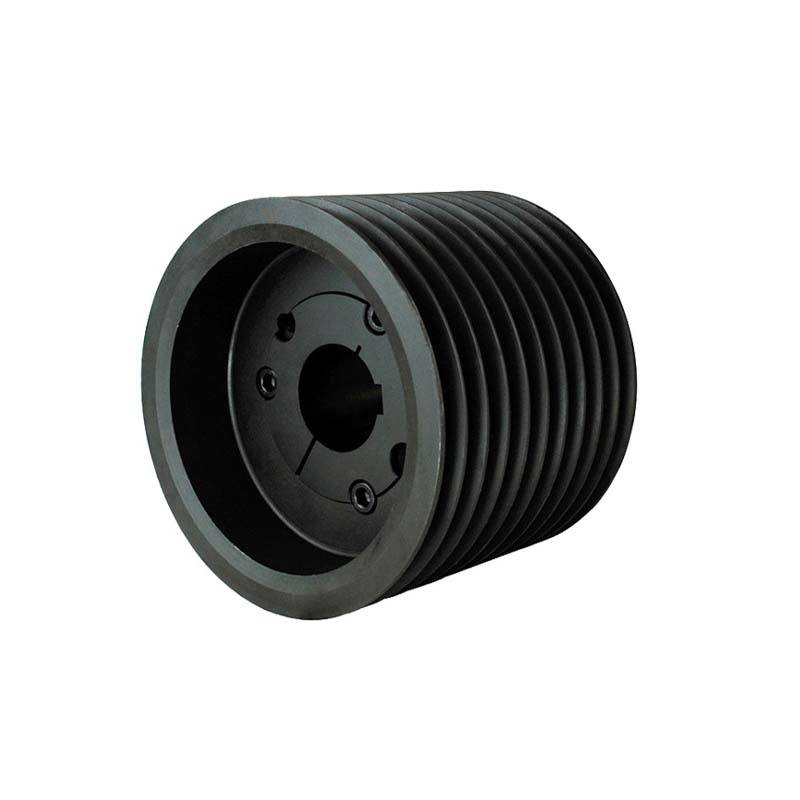

Big Size Cast Iron v Belt Drive Pulley SPB Pulley

Big Size Cast Iron v Belt Drive Pulley SPB PulleyBig size cast iron v belt drive pulley SPB pulleyProduct DescriptionApplication Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipme......

Big Size Cast Iron v Belt Drive Pulley SPB Pulley

Big size cast iron v belt drive pulley SPB pulley

Product Description

Application



Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.



              Big Size Cast Iron v Belt Drive Pulley SPB PulleyBelt SectionSPB
Product CodeCP039049
Groove number3
Pitch Diameter (P)250mm
Outside Diameter (O)257mm
J207mm
L51mm
M18mm
N144mm
F63mm
k-
Weight(kg)9.53

 Big Size Cast Iron v Belt Drive Pulley SPB Pulley

Big Size Cast Iron v Belt Drive Pulley SPB Pulley



V belt pulleys drawing

Big Size Cast Iron v Belt Drive Pulley SPB Pulley

Big Size Cast Iron v Belt Drive Pulley SPB Pulley

SPB-03 Belt Pulley Specifications

Product Name:V Belt Pulley

Belt Section:SPB

Grooves:3

 Big Size Cast Iron v Belt Drive Pulley SPB Pulley

Big Size Cast Iron v Belt Drive Pulley SPB Pulley

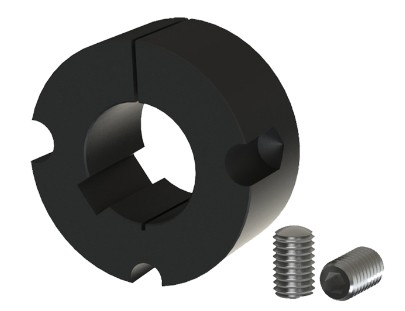

Equipped with Bush:



European standard taper bush
 Big Size Cast Iron v Belt Drive Pulley SPB PulleyBush NoBore Range (mm)
302010, 11, 12, 14, 15, 16, 17, 18, 19, 20, 22, 24, 25, 28, 30, 32, 33, 34, 35, 36, 38, 40, 42, 43, 45,47, 48, 50, 52, 54, 55, 56, 57, 58, 60, 63, 65
Pulley & Belt Select

Pulley Selection Guide

Big Size Cast Iron v Belt Drive Pulley SPB Pulley
