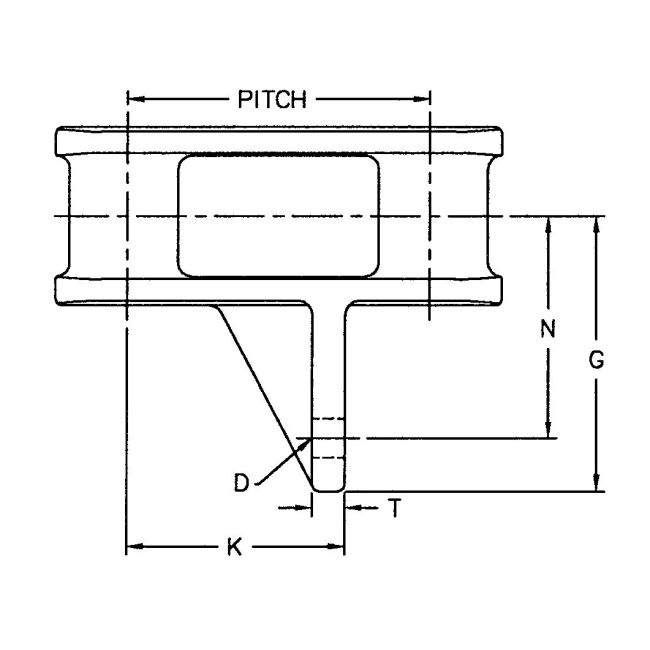

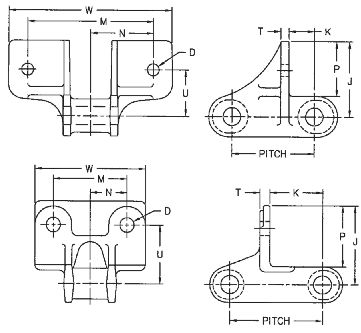

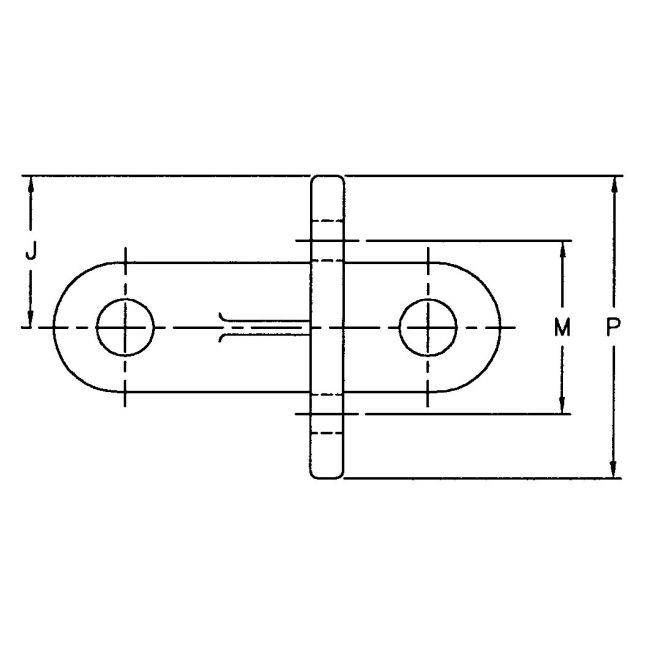

MOLINE ATTACHMENT NO. | PITCH | D | J | K | M | N | P | ||
PITCH | BOLT DIAMETER | HOLE DIAMETER | |||||||
C 77-F2 | 2.308 | 0.31 | 0.34 | 1.94 | 1.31 | 1.75 | 0.88 | 1.50 | |
C 131-F2 | 3.075 | 0.38 | 0.44 | 2.75 | 0.94 | 4.69 | 2.34 | 2.00 | |
C 188-F2 | 2.609 | 0.31 | 0.34 | 2.19 | 1.25 | 2.00 | 1.00 | 1.62 | |
MOLINE ATTACHMENT NO. | T | U | W | AVERAGE WEIGHT PER FOOT LBS.* |
C 77-F2 | 0.25 | 1.38 | 2.56 | 3.0 |
C 131-F2 | 0.31 | 1.69 | 6.12 | 9.0 |
C 188-F2 | 0.31 | 1.50 | 2.75 | 4.5 |
