Product Description

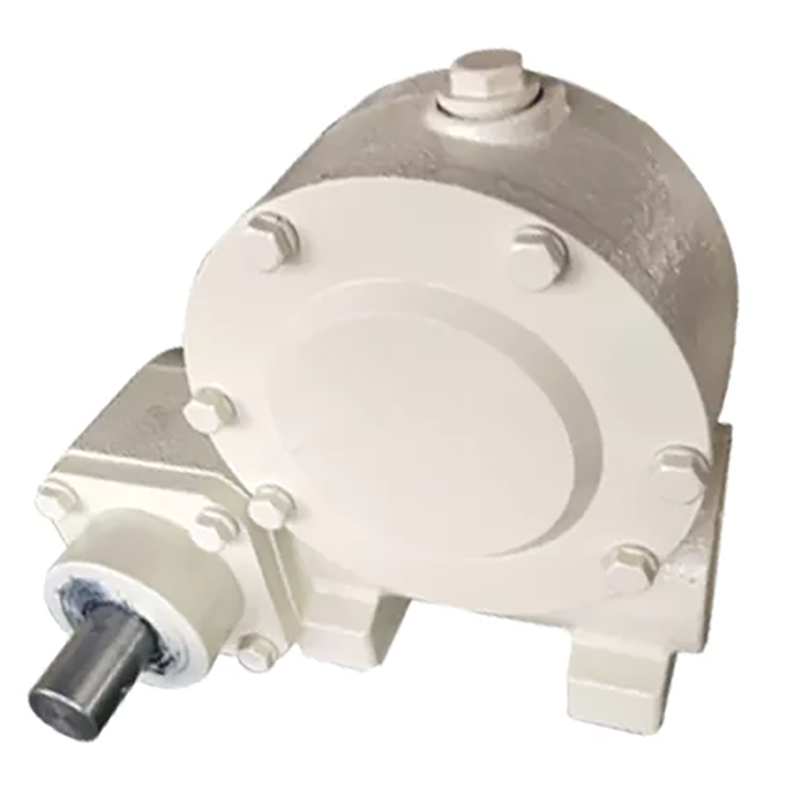

Cement Mixer ZL-2810 Gearbox Reducer for Concrete Mixing Innovative Drive System

Products Description

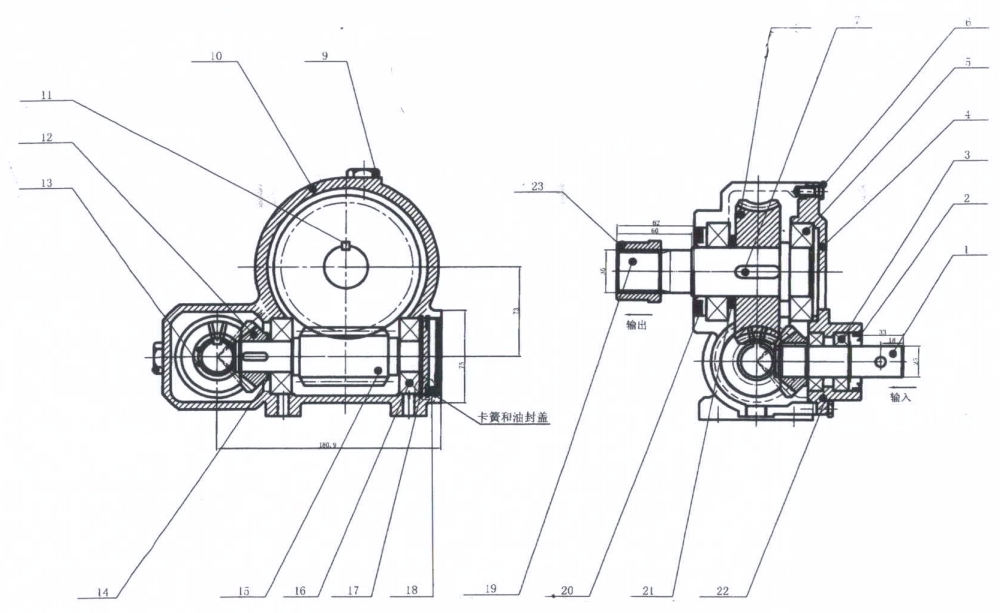

1. Input shaft 2. Oil seal 3. Deep groove ball bearing 4. Door cover 5. Deep groove ball bearing 6. Hexagonal head bolt 7. Flat key 8. Worm gear 9. Oil plug screw 10. Box 11. Flat key 12. Bevel gear 13. Circlip 14. Shim 15. Worm 16. Deep groove ball bearing 17. Circlip 18. Oil seal 19. Spline shaft 20. Oil seal 21. Retaining ring 22. Door cover 23. Spline sleeve
Notes：
1. All parts must be cleaned before assembly.
2. During assembly, the bearing must be tightly against the shoulder of the shaft
3. Use WA460 lubricating oil or select the corresponding oil according to the ambient temperature.
4. Conduct a no-load test, and the operation should be flexible and free. After running for 1 hour, the temperature rise should be ≤ 45 ℃

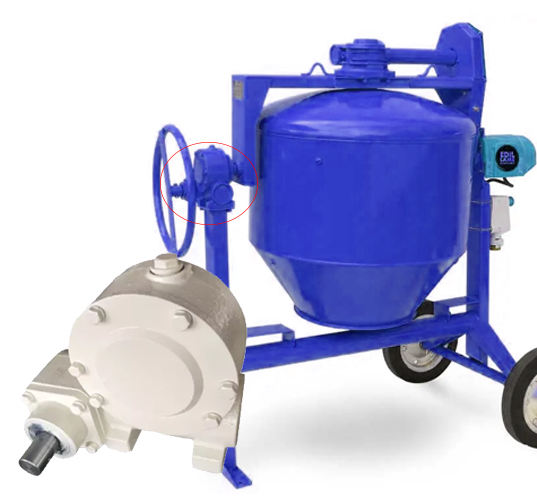

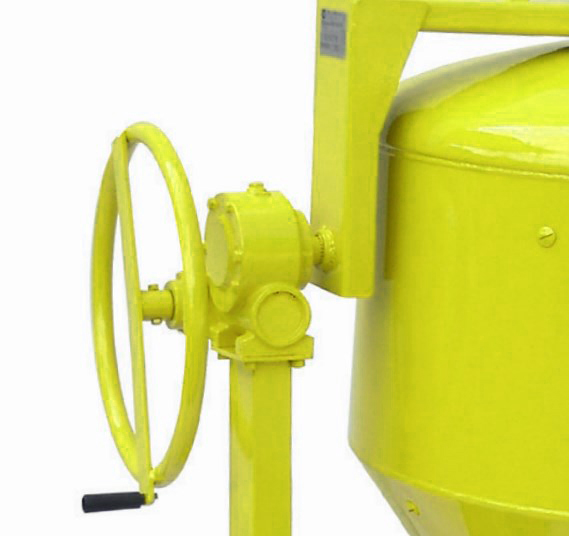

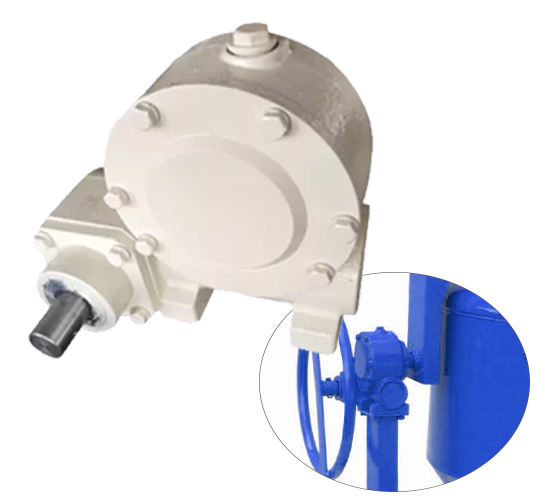

Application of ZL-2810 Gearbox

The 2810 Gearbox is a specific model number often associated with cement mixer gearboxes, and its exact installation location can vary depending on the design of the particular cement mixer model. However, in general, gearboxes in cement mixers are typically installed between the power source (engine or electric motor) and the mixing drum.
In most cases:
* The gearbox would be mounted securely to the frame or chassis of the cement mixer.
* It's connected to the input shaft of the gearbox via a coupling, belt, or chain from the engine or motor.
* On the output side, the gearbox would have an output shaft that connects directly to the drive mechanism of the mixing drum. This could involve a series of gears, chains, or belts to transfer the torque generated by the gearbox to rotate the mixing drum at the appropriate speed for effective mixing of the cementitious materials.

For more details, please click here to contact us！
