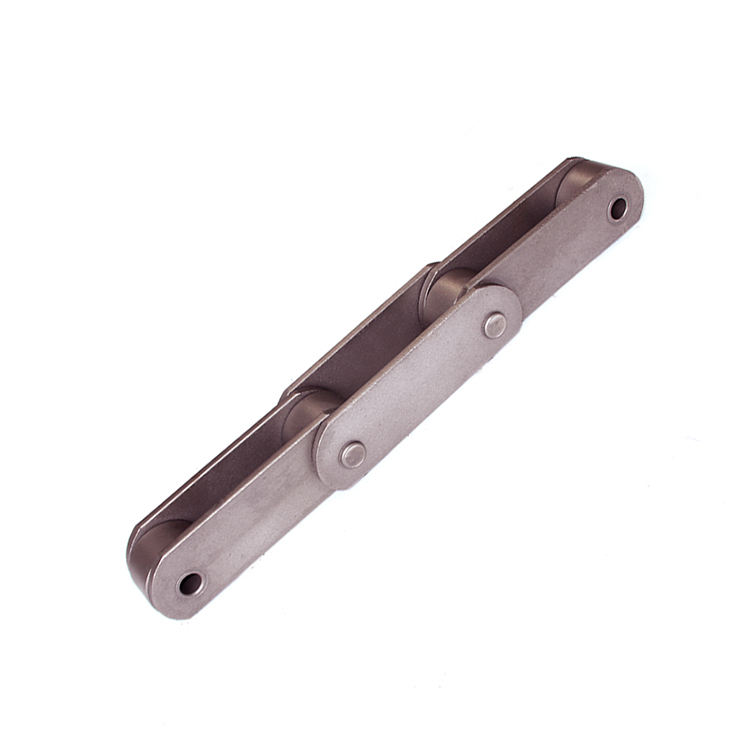

Conveyor chains with inch pitch ZC-40-C-50.8 Stainless steel
| Part No.: | 1900122102 |
| CHAIN: | ZC40 N. |
| Pitch (P): | 2.0 inches |
| Pitch (P): | 50.8 mm |
| Inner width (L): | 15 mm |
| Roller diameter (D2): | 31.75 mm |
| Flange diameter (D4): | - mm |
| From flange to center roller (G): | - mm |
| Bush diameter (D5): | - mm |
| Pin diameter (D6): | 14.0 mm |
| Hollow pin (D7): | 10.2 mm |
| Height of sideplate (H): | 25.0 mm |
| From centre pin to top sidepla (H1): | - mm |
| Thickness of innerplate (S1): | 4.0 mm |
| Thickness of outerplate (S2): | 4.0 mm |
| Total length of pin (F1): | 36 mm |
| Centre chain to end conn. pin (F2): | 19.5 mm |
| Centre chain to end conn. pin (F3): | - mm |
| Breaking load: | 40000 N |
| Breaking load: | 50000 N* |
