Products Description
DST Series Horizontal Dual Spindle Turret Turning Center CNC Machining Center for Process Complex Bar Shaft Disc

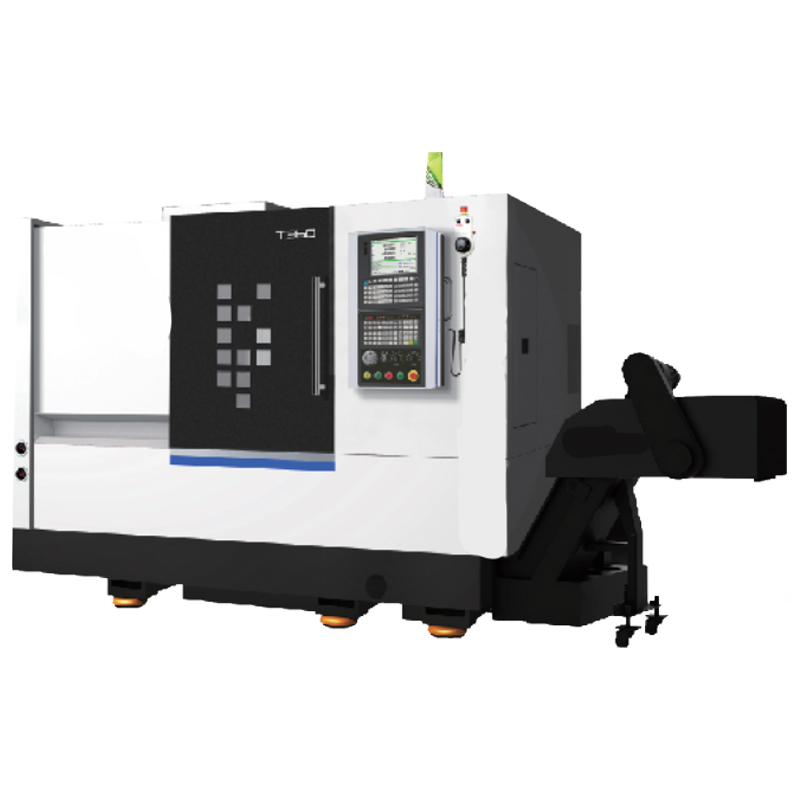

DST Series  Turning Center
The DST series is a horizontal dual spindle dual turret turning center that embodies the requirements of high-speed and efficient machining and composite machining. Whether in automotive components, connectors, hydraulic components, or electronic industrial devices, this machine tool can ensure complete machining of complex bar, shaft, or disc workpieces.

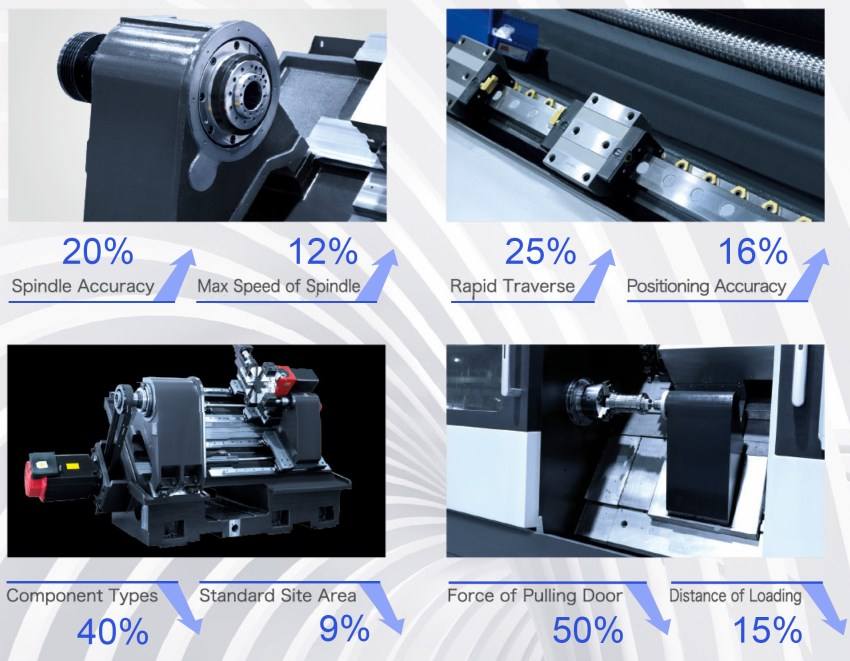

Good acceleration performance, suitable for efficient processing High rigidity ensures stability during re cutting Ensure complete machining of disc workpieces
DST3285
DST3285M
DST3285MY
Maximum cutting diameter
mm
320
320
320
Maximum cutting length
mm
850
850
850
Stroke X-axis
mm
200
200
200
Stroke Z-axis
mm
-
-
±55
Stroke Z-axis
mm
850
850
850
Spindle end type
-
A2-8/A2-6
A2-8/A2-6
A2-8/A2-6
Spindle speed
r/min
4500(A2-6)
4000(A2-8)
4500(A2-6)
4000(A2-8)
4500(A2-6)
4000(A2-8)
Main motor power
kw
11/15(A2-6)
15/18.5(A2-8)
11/15(A2-6)
15/18.5(A2-8)
11/15(A2-6)
15/18.5(A2-8)
Spindle torque
N.m
178(A2-6)
221(A2-8)
178(A2-6)
221(A2-8)
178(A2-6)
221(A2-8)
Knife holder
-
Dual servo tool holder
Dual power knife holder
Dual power knife holder
Fast movement speed XZ
m/min
30/-/30
30/-/30
30/15/30
Host size
mm
3900*2650*2350
3900*2650*2350
3900*2650*2350
Related Products
DST Series Horizontal Dual Spindle Turret Turning Center CNC Machining Center for Process Complex Bar Shaft Disc

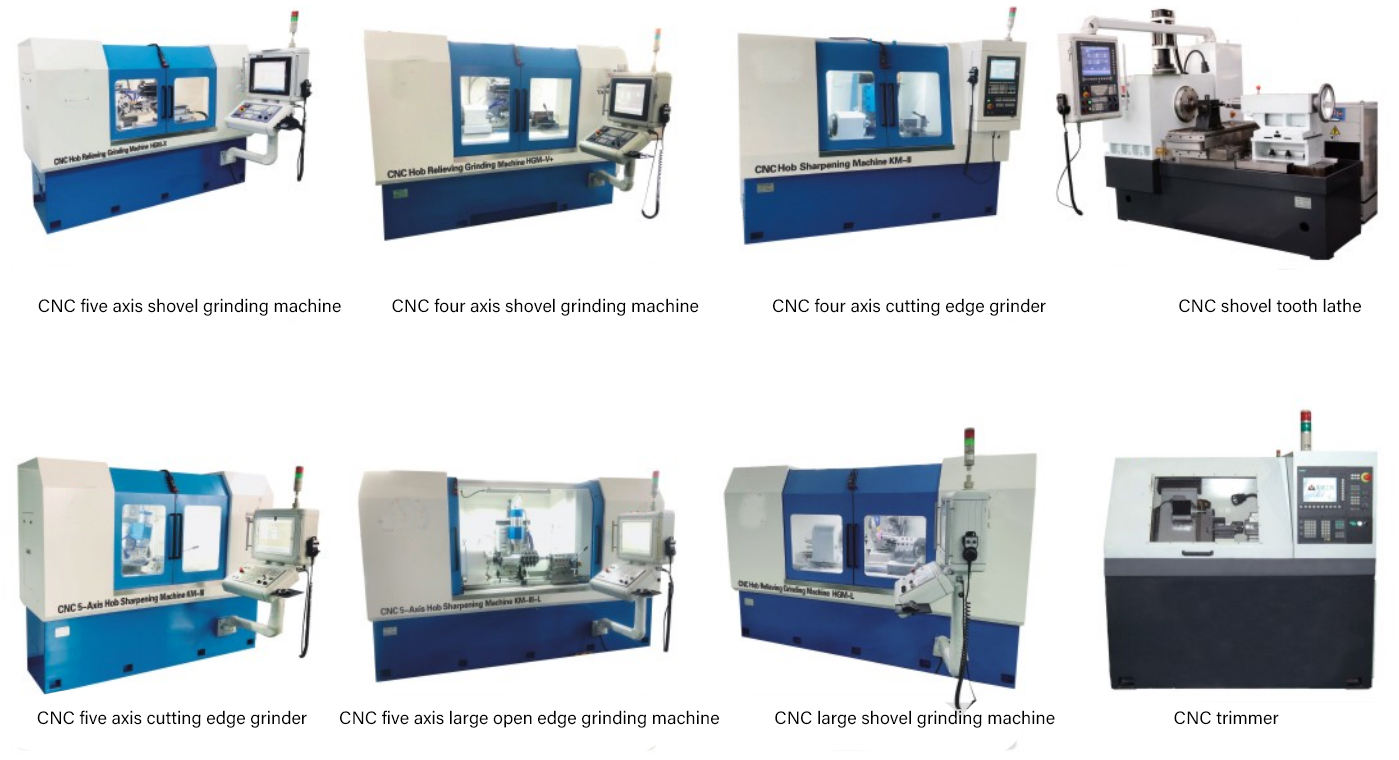

CNC machines
