Engineering Chains W78 W82 W106 W110 W111 W124 W124h W132 Welded Steel Chains

Raydafon Group's Engineering Chains W78 W82 W106 W110 W111 W124 W124h W132 are premium welded steel chains, ideal for industrial use with superior durability and precision welding. Perfect for engineers and heavy-duty applications, these chains ensure reliability and safety, solving lifting and securing challenges effortlessly. Trust Raydafon for unmatched quality and performance.

Send Inquiry

Product Description

Engineering Chains W78 W82 W106 W110 W111 W124 W124h W132 Welded Steel Chains

Product Description

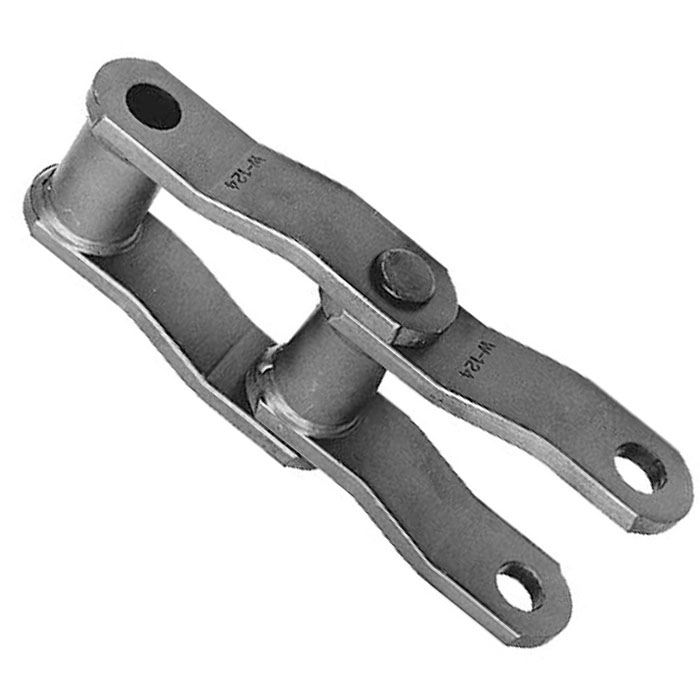

Welded Steel Chains

Industry: Grain Processing, Car Wash Conveyor, Forest Products

Raydafon Industry Chain offer the full range of welded steel chains including narrow series and wide series.Such as WH series,WR series,WDH series and WDR series.It is found throughout the world in lumber mills, paper pulp mills, and any industry where severe applications require strength and reliability. Welded Steel Chain is designed and manufactured to offer strength, precision, impact resistance, and wear resistance. This versatile chain is built to withstand punishing shock loads and abrasive conditions.Each component is engineered to close tolerances.These power transmission product or conveyor part are engineered from special alloy steels with a lower cost. Our years of experience provide unique expertise in material selection, heat treatment, and chain design for improved chain strength and long wear life. What this means to you is superior value and greater productivity. Welded Steel Mill and Drag Chains are available with a variety of attachments,can meet the needs for diversity of different production lines.

Features & Benefits: 1.Optional Selectively Induction Hardened (SIH) sidebars available. 2.Solid bushings on narrow-mill and one-piece formed barrel on wide-mill chains. 3.Advanced design features are furnished as standard on all chains. 4.Available with customized attachment configurations and hard-facing. 5.Heat treatment and process controls provide consistent wear life. 6.Selectively Induction Hardened (SIH) pins for unmatched toughness and wear. 7.36 standard sizes in both narrow series and wide series welded steel chain available. 8.Durable hard-facing and attachments. 9.Optimum interference fits between pin and sidebar. 10.Cottered & Riveted construction available.

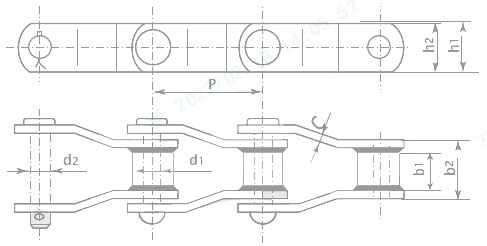

Chain No.	Pitch p (mm)	Bush Diameter d1 Max (mm)	Dia. of Pin d2 Max (mm)	Chain Path Depth h1 Max (mm)	Chain Path h2 Max (mm)	Inner Width of Small End b1 Min (mm)	Outer Width of Small End b2 Max (mm)	Thickness of Link S(Max) (mm)	Breaking Load Q Min (daN)
W78	66.27	22.90	12.78	30.00	28.40	28.40	51.00	6.40	9340
W82	78.10	31.50	14.35	33.50	31.80	31.80	57.40	6.40	10010
W106	152.40	37.10	19.113	39.60	38.40	41.20	71.60	9.70	16900
W110	152.40	32.00	19.13	39.60	38.10	46.70	76.50	9.70	16900
W111	120.90	37.10	19.13	39.60	38.10	57.20	85.90	9.70	16900
W124	101.60	37.10	19.13	39.60	38.10	41.20	71.60	9.70	16900
W124H	103.20	41.70	22.30	52.30	50.80	41.20	76.50	12.70	27580
W132	153.67	44.70	25.40	52.30	50.80	76.20	111.80	12.70	27580
