Factory Heavy duty cast v-ribbed pulley for SPZ belt

Heavy duty cast v-ribbed belt pulley for SPZ belt

Product Description

Application

Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.

Product Features

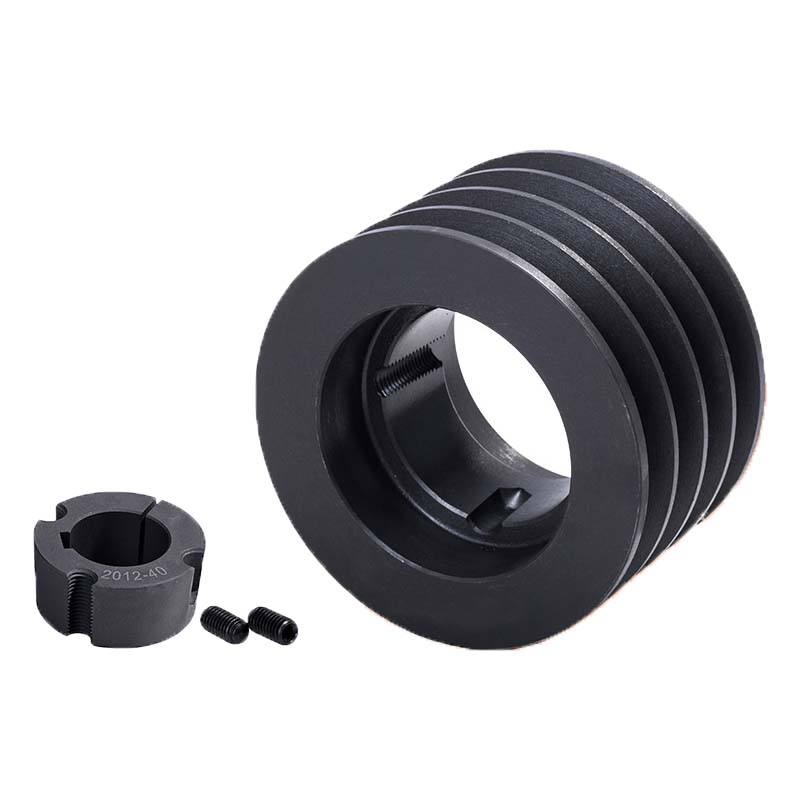

Easy Mount and Rmoval Taper Bush Pulley
High Grade cast iron material
Statically balanced
Anti-rust surface

Our Advantages

23 years Pulley manufacturer with rich exporting experience
Factory direct sale
ISO 9001 certified Top Quality
Effecient & Responsible Resolution Service

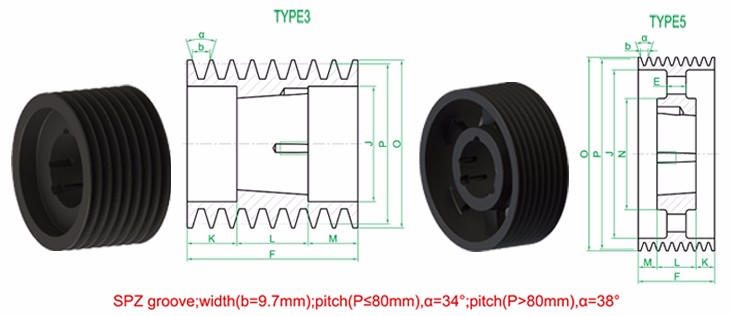

Product Structure type

Factory Heavy duty cast v-ribbed pulley for SPZ belt

V belt pulley Dimensions

Product Name:V Belt Pulley

Belt Section:SPZ

Grooves: 8

Product Code	Product Model	Grooves	P	O	TYPE	BUSH	MAX Bore	F	J	K	L	M	N	Weight (Kg)
CP041292	SPZ140-08	8	140	144	3	2517	60	100	111	27.5	45	27.5	—	4.49
CP041311	SPZ150-08	8	150	154	3	2517	60	100	121	27.5	45	27.5	—	5.3
CP041330	SPZ160-08	8	160	164	3	2517	60	100	131	27.5	45	27.5	—	6.15
CP041366	SPZ180-08	8	180	184	3	2517	60	100	151	27.5	45	27.5	—	8.92
CP041386	SPZ190-08	8	190	194	3	3020	75	100	161	24.5	51	24.5	—	8.6
CP049864	SPZ200-08	8	200	204	3	3020	75	100	171	24.5	51	24.5	—	9.75
CP041470	SPZ224-08	8	224	228	3	3020	75	100	195	24.5	51	24.5	—	13
CP041519	SPZ250-08	8	250	254	5	3020	75	100	221	24.5	51	24.5	146	11.49
CP041562	SPZ280-08	8	280	284	5	3020	75	100	251	24.5	51	24.5	146	12.44
CP041614	SPZ355-08	8	355	359	5	3030	75	100	326	12	76	12	146	18.79
CP041629	SPZ400-08	8	400	404	5	3030	75	100	371	12	76	12	146	21.75
CP041644	SPZ450-08	8	450	454	5	3535	90	100	421	5.5	89	5.5	175	27.85
CP041663	SPZ500-08	8	500	504	5	3535	90	100	471	5.5	89	5.5	175	30.2
CP081531	SPZ630-08	8	630	634	5	3535	90	100	601	5.5	89	5.5	175	41
CP041785	SPZ800-08	8	800	804	5	3535	90	100	771	5.5	89	5.5	178	53

Equipped with Taper Bush:

European standard bush
	Bush No	Bore Range(mm)
	1008	10,11,12,14,15,16,18,19,20,22,24,25
	2517	20,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60
	3020	25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75
	3030	25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75
	3035	35,38,40,42,45,48,50,55,60,65,70,75,80,85,90
