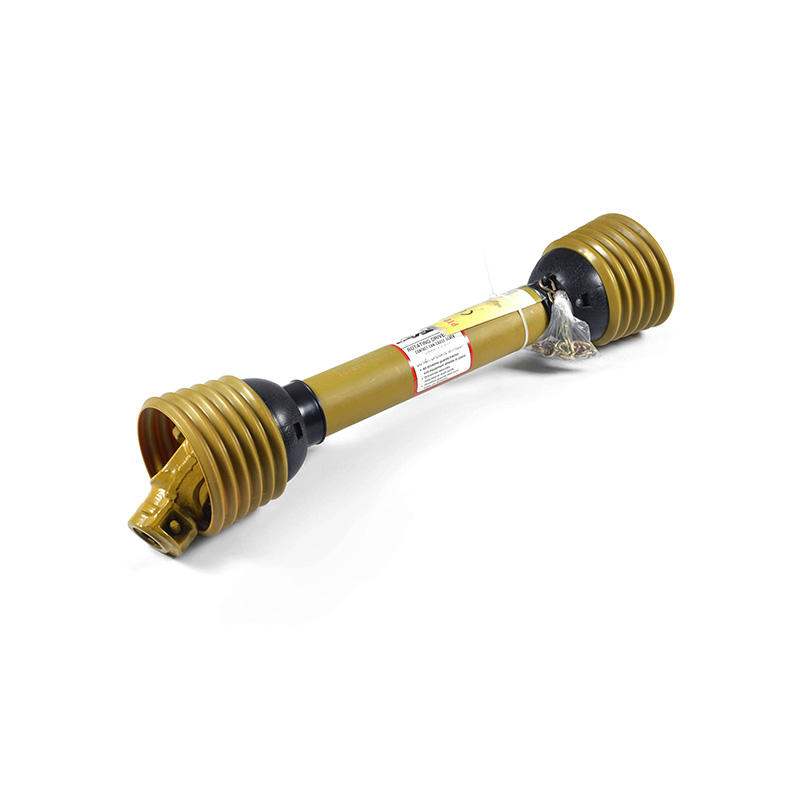

The Wide Angle Joints PTO Shaft for Tractor is a Series T60 drive shaft built for high-angle power transmission between a tractor PTO and an implement that swings through a wide turning arc. The wide angle joint at the tractor end allows the shaft to run smoothly even at high articulation angles, where a standard single-cardan PTO shaft would vibrate or fail. Universal joint options are 27×94 and 32×76. Tractor-side spline is 1-3/8" Z6 or 1-3/8" Z21. Total shaft length L is 350 mm with L1 at 105 mm and D at 166 mm.
Raydafon supplies the Series T60 Wide Angle Joints PTO Shaft as an ISO 9001 certified factory in Ningbo, China, with CE certificate, OEM brand marking and flexible MOQ from 10 sets. Standard delivery is 45 to 50 days. The shaft is packed in cartons or pallets, and the profile can be produced in lemon, triangle, star or splined section to match the original equipment being replaced.
A Wide Angle Joints PTO Shaft for Tractor is a constant-velocity agricultural drive shaft that transfers engine power from a tractor PTO to an implement such as a mower, tedder, baler or slurry tanker. The wide angle joint — sometimes called a CV joint or a double-cardan joint — allows the shaft to transmit full torque smoothly even when the implement is at a sharp turn angle to the tractor. A standard single-cardan PTO shaft starts to vibrate when the articulation angle exceeds about 15 to 20 degrees; the wide angle joint on the Series T60 shaft extends that range substantially, which is why wide angle joints are the standard choice for trailed implements that swing through wide steering arcs.

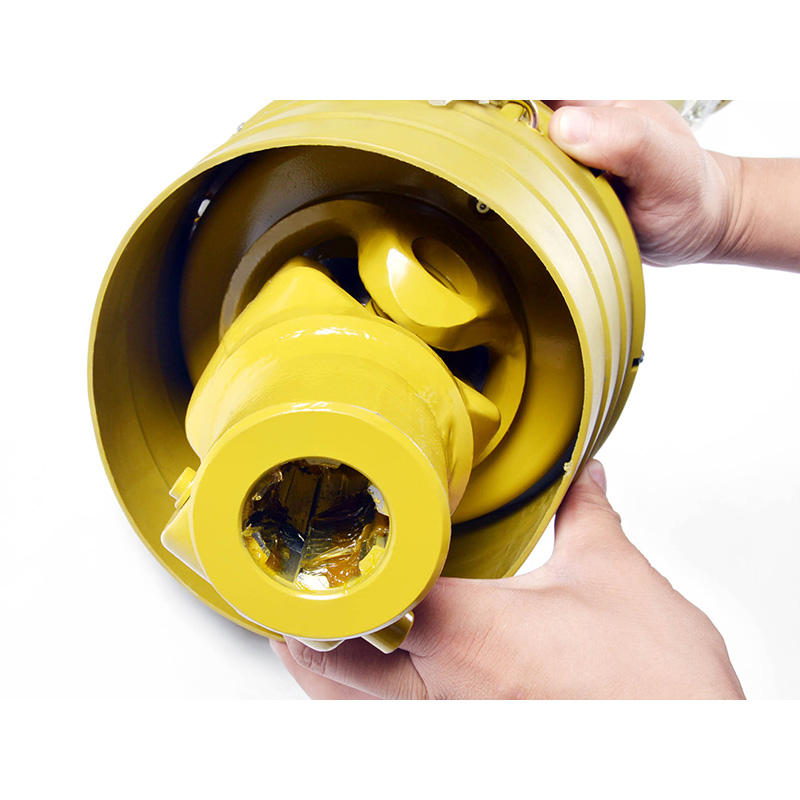

The Series T60 wide angle PTO shaft consists of a tractor-side yoke with the wide angle joint, an inner and outer telescoping profile tube, and an implement-side yoke. The telescoping section absorbs length changes when the implement moves up and down or turns, and the profile tube transmits torque through a lemon, triangle, star or splined cross-section, depending on the load and the OEM specification.
The table below lists the full dimensional and configuration specification of the Series T60 Wide Angle Joints PTO Shaft for Tractor. Cross reference the model type and shaft code below against the original equipment before ordering to confirm the universal joint size and spline configuration match.
| Shaft Type | Series T60 wide angle joint PTO shaft |
| Universal Joint Size Options | 27×94 / 32×76 |
| Tractor-Side Spline | 1-3/8" Z6 or 1-3/8" Z21 |
| L1 (from yoke to profile start) | 105 mm |
| L (overall length) | 350 mm |
| D (max profile diameter) | 166 mm |
| Cross Journal Reference | V622138 or V622121 |
| Complete Shaft Code | 800622138 or 800622121 |
| Profile Tube Options | Lemon / triangle / star / splined (per OEM spec) |
| Certification | CE |
| Brand Marking | ZJWC or customer brand |
| MOQ | 10 sets |
| Packaging | Cartons or pallets |
| Delivery Time | 45–50 days |
The Series T60 wide angle PTO shaft is available in two cross-journal variants. The table below cross-references the model type against the corresponding shaft code so that buyers can match the original equipment part number directly.
| Cross Journal Type | Universal Joint | Tractor Spline | Shaft Code |
|---|---|---|---|
| V622138 | 27×94 | 1-3/8" Z6 | 800622138 |
| V622121 | 27×94 / 32×76 | 1-3/8" Z6 or Z21 | 800622121 |
Cross-reference the original equipment shaft code before ordering. Where the original part number is not listed, send the tractor model and implement model and Raydafon will confirm the correct Series T60 configuration. Custom lengths and spline combinations can be produced to a drawing or sample.
A wide angle joint PTO shaft costs more than a standard single-cardan shaft, so the choice is driven by the implement type and the working angle. The four advantages below are the reasons wide angle joints are specified on trailed implements.
Where a standard single-cardan PTO shaft starts to vibrate above about 15 to 20 degrees, the wide angle joint on the Series T60 shaft maintains smooth rotation at higher angles. This is what allows trailed mowers, tedders and slurry tankers to keep working through sharp turns.
The wide angle joint is effectively two universal joints in series that cancel out the velocity fluctuation of a single cardan joint. The implement-side shaft speed stays constant through the full rotation, which reduces wear on the implement gearbox input bearing and seal.
The telescoping lemon, triangle, star or splined profile tube absorbs length change as the implement lifts, drops or turns. The Series T60 profile is selected against the load and the OEM specification so the tube does not bind or wear excessively in service.
The Series T60 wide angle PTO shaft is the standard interface on trailed mowers, tedders, hay rakes, slurry tankers, fertiliser spreaders, balers and other trailed implements that need to swing through a wide steering arc. Cross reference the original shaft code before ordering.
The Series T60 wide angle PTO shaft is specified wherever a trailed implement has to follow the tractor through a wide steering arc while still transmitting full PTO torque. The application categories below are the ones most often ordered with this shaft.
To confirm the correct Series T60 Wide Angle Joints PTO Shaft for Tractor and issue a quotation, Raydafon needs the five items below. For a straight replacement of an existing shaft, the original shaft code alone is usually enough.
Send the five items below and Raydafon will confirm the specification, brand marking and lead time within one working day.
The Wide Angle Joints PTO Shaft for Tractor is used to transmit PTO power from a tractor to a trailed implement when the implement runs at a high steering angle to the tractor. It is the standard drive shaft on trailed mowers, tedders, hay rakes, slurry tankers, fertiliser spreaders and balers where a standard single-cardan shaft would vibrate.
The Series T60 wide angle PTO shaft has a universal joint size of 27×94 or 32×76, a tractor-side spline of 1-3/8" Z6 or 1-3/8" Z21, L1 of 105 mm, overall length L of 350 mm, and profile diameter D of 166 mm. Cross journal reference is V622138 or V622121 and the complete shaft code is 800622138 or 800622121.
A wide angle PTO shaft uses a wide angle (CV) joint that maintains smooth torque transmission at high articulation angles, where a standard single-cardan PTO shaft starts to vibrate above about 15 to 20 degrees. The wide angle joint cancels out the velocity fluctuation of a single cardan joint, so the implement-side shaft speed stays constant through the full rotation.
Yes. Send the original shaft code, nameplate photo or a dimensioned drawing and Raydafon will confirm whether the universal joint size, spline, length and profile type match. Where the original is obsolete, a functionally equivalent Series T60 shaft can be produced against the same tractor and implement configuration.
MOQ is 10 sets. Delivery time is 45 to 50 days. Packaging is cartons or pallets. Custom brand marking and custom lengths are available when the customer provides a drawing or sample.
Yes. The Series T60 wide angle PTO shaft is CE certified and produced in an ISO 9001 certified factory. A CE certificate can be provided with the shipment. Additional documentation including outline drawing and material certificates can be supplied on request.
The Series T60 wide angle PTO shaft is available with lemon, triangle, star or splined profile tube. The correct profile is selected against the load and the OEM specification. Custom profiles can be produced to a drawing or sample when the required profile is not in the standard range.
Yes. Raydafon produces a full range of agricultural PTO shafts, agricultural gearboxes, PTO drive gearboxes, hydraulic cylinders and other power transmission components. The Series T60 wide angle PTO shaft is one of more than 30 PTO shaft models; custom configurations are produced to drawing or sample.
Whether you are replacing a worn wide angle PTO shaft on a trailed mower, specifying a new Series T60 drive for a slurry tanker program, or sourcing wide angle PTO shafts in volume for a distributor network, Raydafon can quote the Series T60 Wide Angle Joints PTO Shaft or a custom equivalent to your joint size, spline, length and profile requirements. OEM and project quantities supplied directly from the Ningbo factory.
