Factory SPA Small Motor Drive Pulleys and belts

Application

Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.

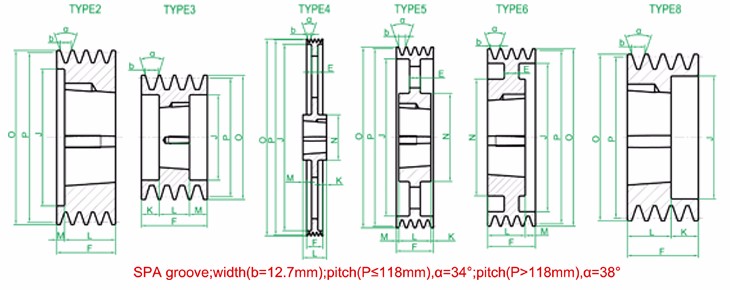

V belt pulley drawing

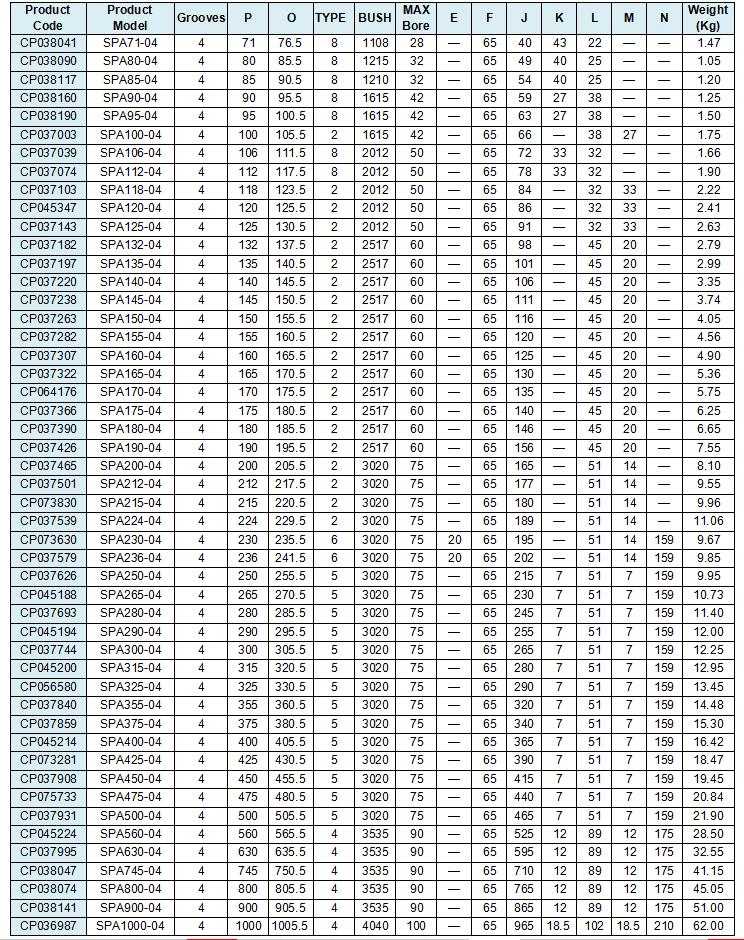

SPA-04 V drive belt pulley Specifications

Product Name: V Belt Pulley

Belt Section: SPA

Grooves: 4 grooves

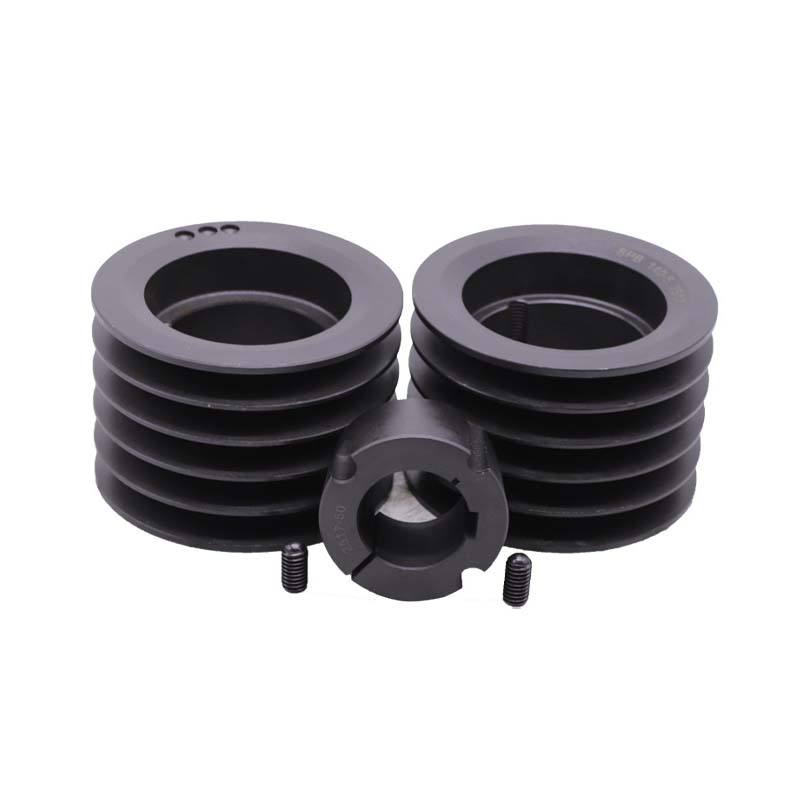

Equipped with Bush:

European standard bush
	Bush NO	Bore Range(mm)
	1210	11,12,14,15,16,18,19,20,22,24,25,28,30,32
	1615	14,15,16,18,19,20,22,24,25,28,30,32,35,38,40,42
	2012	18,19,20,22,24,25,28,30,32,35,38,40,42,45,48,50
	2517	20,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60
	3020	25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75
	3535	35,38,40,42,45,48,50,55,60,65,70,75,80,85,90
	4040	40,42,45,50,60,65,70,75,80,85,90,95,100
