Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.
Product Features

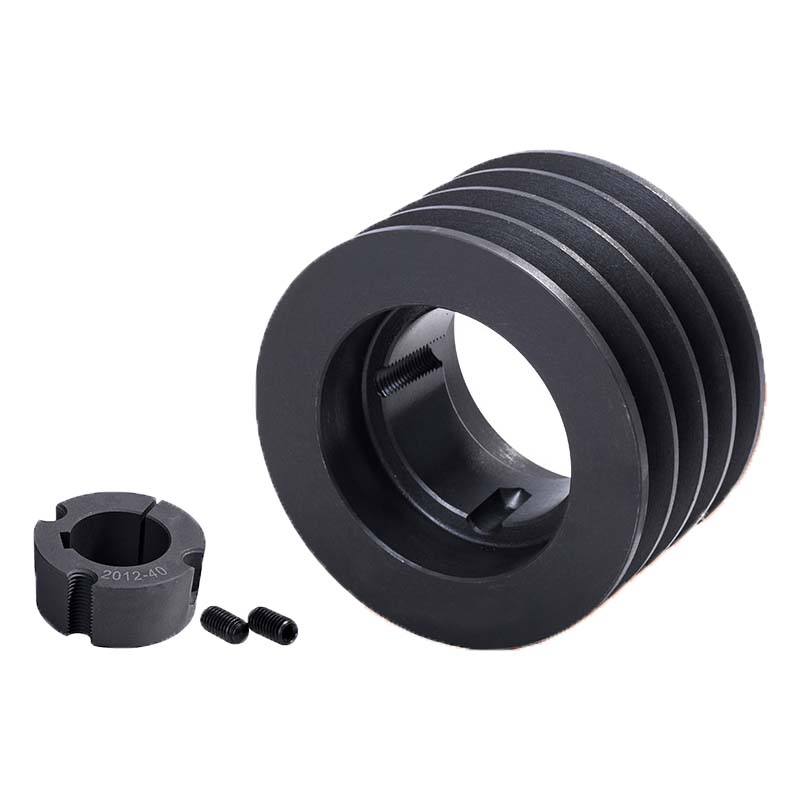

Easy Mount and Rmoval Taper Bush Pulley
High Grade cast iron material
Statically balanced
Anti-rust surface
Our Advantages
22 years Pulley manufacturer with rich exporting experience
Factory direct sale
ISO 9001 certified Top Quality
Effecient & Responsible Solution Service

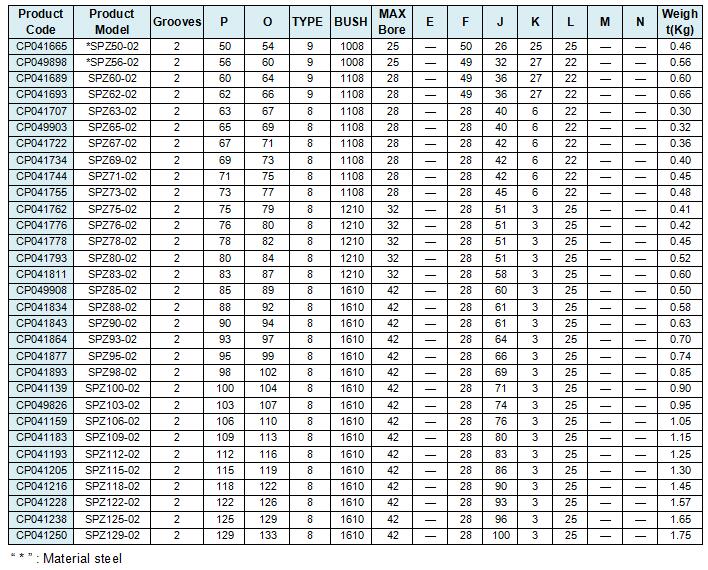

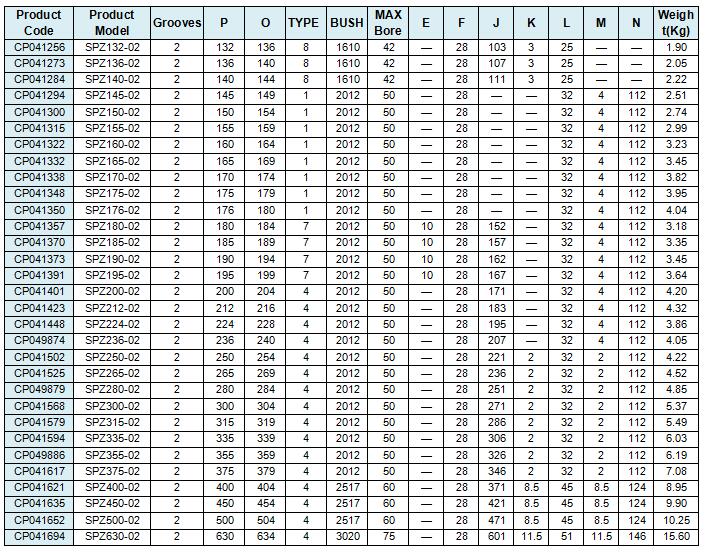

Drive Pulley Drawings

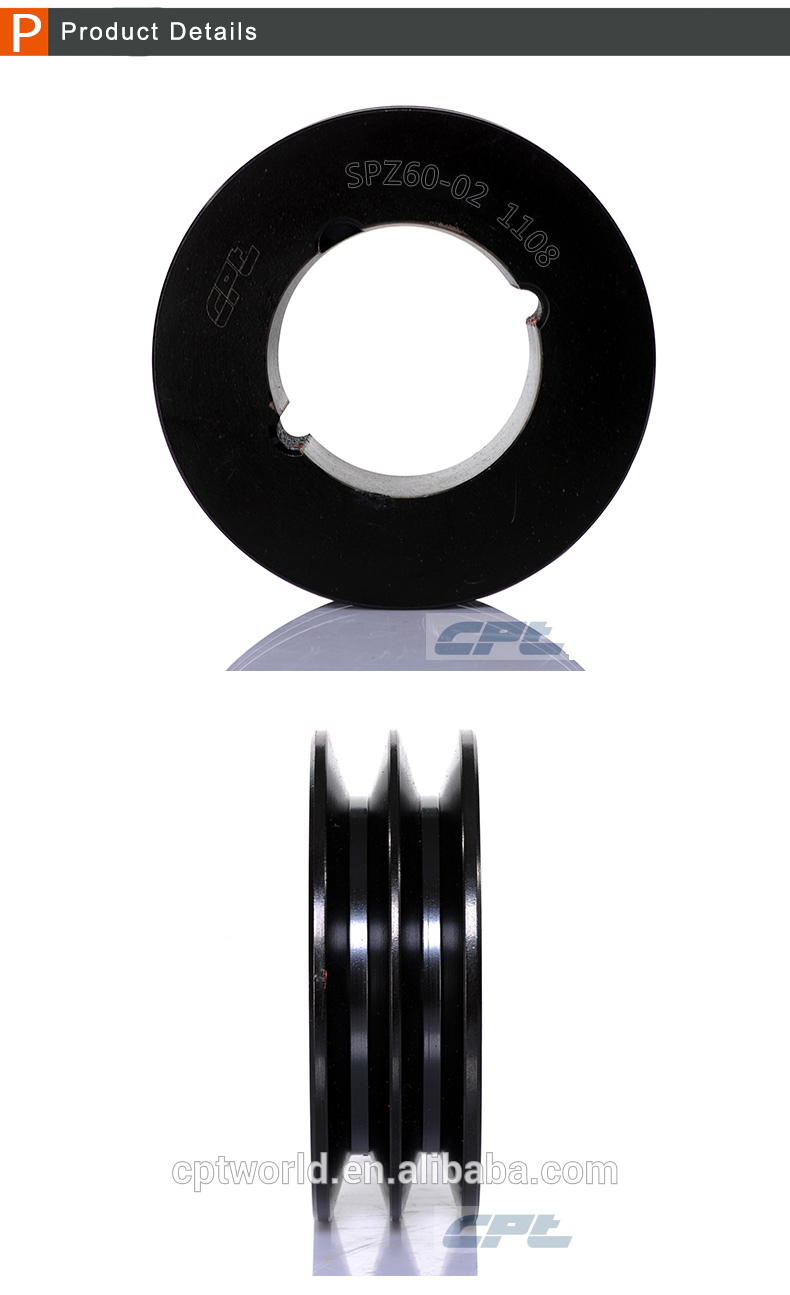

Product Name:V Belt Pulley
Belt Section:SPZ
Grooves: 2 grooves / Double grooves
Equipped with Bush:
| European standard taper bush | ||
| Bush | Bore Range(mm) | |
| 1008 | 10,11,12,14,15,16,18,19,20,22,24,25 | |
| 1108 | 10,11,12,14,15,16,18,19,20,22,24,25,28 | |
| 1210 | 11,12,14,15,16,18,19,20,22,24,25,28,30,32 | |
| 1610 | 14,15,16,18,19,20,22,24,25,28,30,32,35,38,40,42 | |
| 2012 | 18,19,20,22,24,25,28,30,32,35,38,40,42,45,48,50 | |
| 2517 | 20,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60 | |
| 3020 | 25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75 | |
Please contact us or go to homepage for more product information.
