Factory Supply Attractive Price Crankshaft pulley

Factory Supply Attractive Price Crankshaft pulleyProducts DescriptionCrankshaft pulleyMany modern cars use belts that interact with generators. For this type of belt, use pulleys of fully cast or welded construction with grooves that follow the shape of the belt.By design, the pulley is secured with......

Send Inquiry

Product Description

Factory Supply Attractive Price Crankshaft pulley

Products Description

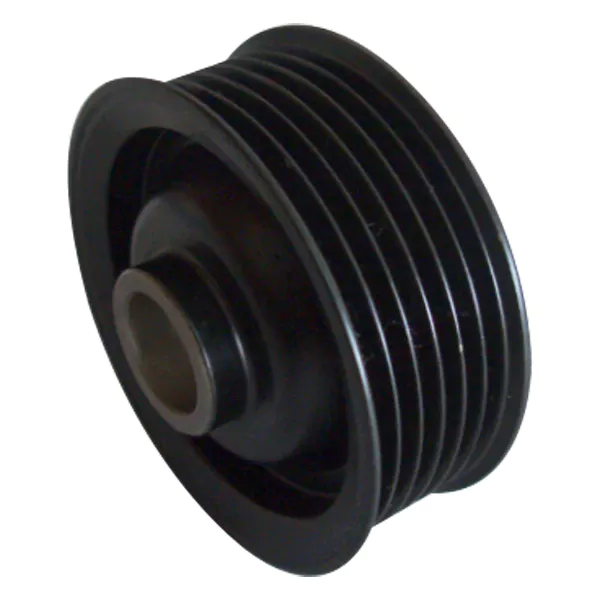

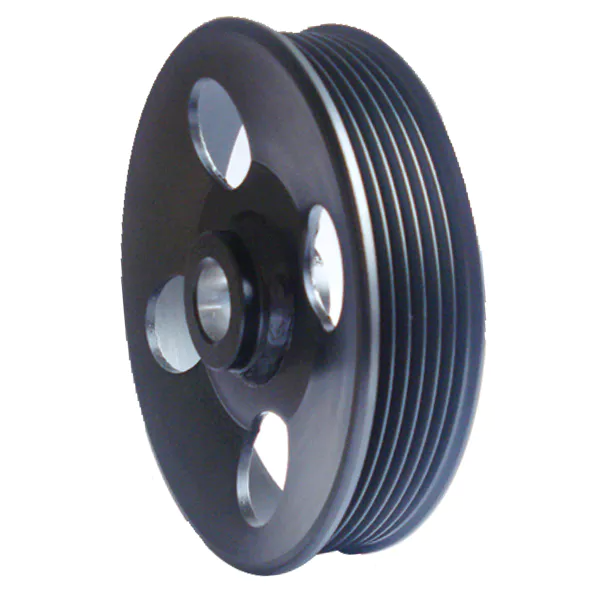

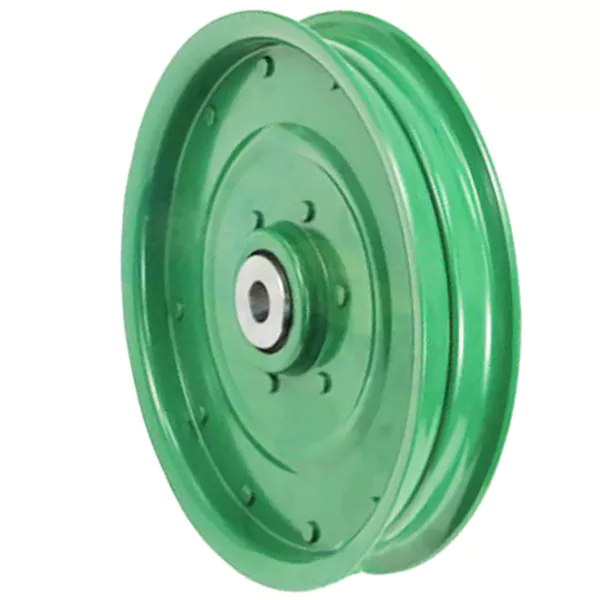

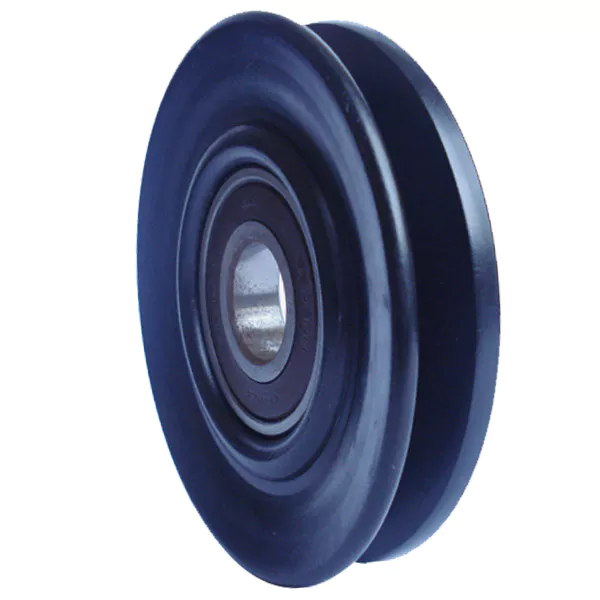

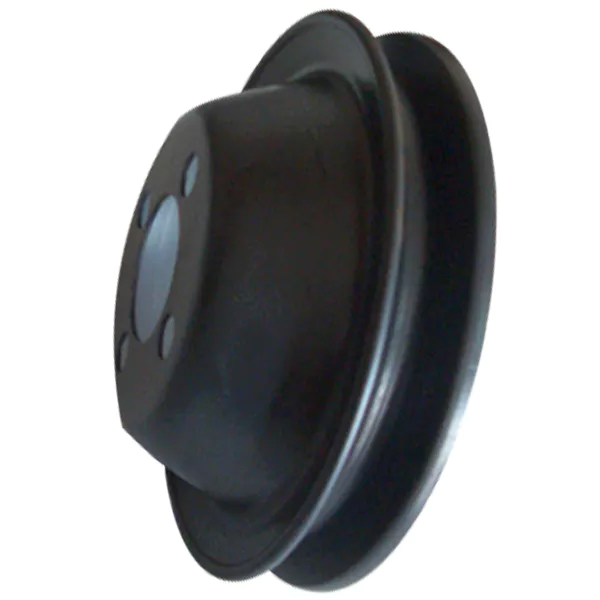

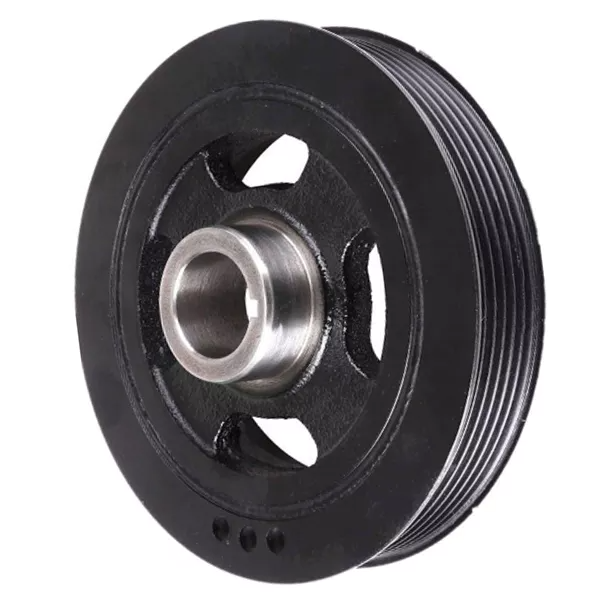

Crankshaft pulley

Many modern cars use belts that interact with generators. For this type of belt, use pulleys of fully cast or welded construction with grooves that follow the shape of the belt. By design, the pulley is secured with a nut or bolt and slides to the end of the shaft with a key. Due to its simple design and very long pulley, it can easily bear the entire service life of the motor.

Nissan 12303-ED001 12303-CJ40A	Nissan 12303-0W001	Nissan 12303-0M300 OM210	Nissan 12303-43G01	Nissan 12303-VJ260
Nissan 12303-9S100	Nissan 12303-VB501	NISSAN 12303-ED50A 12303EN20C	Nissan 12303-EB70B	Nissan 12303-03J00
Nissan 12303-7Y000	Nissan 12303-62J20 12303-62J00	Nissan 12303-21V11	Nissan 12303-19D11	Nissan 12303-8J101
Nissan 12303-85G05	Nissan 12303-62T20	Nissan 12303-41B00	Nissan 31U00-31U1A 1230331U10	Nissan 12303-VC200
Nissan12303-4M710 12303-4M400	Nissan 12303-AG001	Nissan 12303-VB002	Nissan 12303-2J200	Nissan 8200048486

for TOYOTA 13408-17919 13408-17010	TOYOTA 13408-74010 13408-74020	TOYOTA 13470-BZ030	TOYOTA 13408-17030	TOYOTA 13470-23030 13470-BZ010 13470-BZ011
TOYOTA 13408-17010	TOYOTA 13408-74010 13408-74020	TOYOTA 13470-BZ030	TOYOTA 13408-75030 13408-74031	TOYOTA 13408-67020
TOYOTA 13470-BZ030	TOYOTA 13470-BZ030	TOYOTA 13470-BZ030	TOYOTA 13470-BZ030	TOYOTA 13470-BZ030
TOYOTA 13470-22020 13470-0D010 13470-22021	TOYOTA 13470-87317	TOYOTA 13470-36010 13470-0V030	TOYOTA 13407-21030	TOYOTA 13407-70090
TOYOTA 13407-50091 13407-0F010 SK594203	TOYOTA 13408-62030 SK594227	TOYOTA 13408-74031 13408-74041 SK594139	TOYOTA 13470-28020 0H030	TOYOTA 13470-35020 13408- 38010 SK594073

MITSUBISHI MD074403	MITSUBISHI MD306158	MITSUBISHI ME202496	MITSUBISHI MD376609 MD376608 MD300517	MITSUBISHI MD141468
MITSUBISHI MD145525 MD145529	MITSUBISHI MD368262 MD311472	MITSUBISHI MN149765	MITSUBISHI MD356151	MITSUBISHI 4G63 MD377602

PEUGEOT 0515.K6 9624345280	PEUGEOT 0515.R4	PEUGEOT 0515.S2	PEUGEOT 0515.S6 0515.N3
PEUGEOT 0515.R8 0515.S1 0515.P1 0515.N0	PEUGEOT 0515.J3 9611804880	PEUGEOT 405 0515.H6 9617891980	PEUGEOT J9 0515.C8

HONDA 13811-P00-U00	HONDA 13810-P8A-003 90704-PT0-000	HONDA 13810-R1A-G01	HONDA 13810-RCA-A01	HONDA 13810-P2K-003	HONDA 13810-RNA-A02
HONDA 13810-RBD-E01	HONDA 13810-P3F-003	HONDA 13810-PNA-013	HONDA 13810-T2K-003 13811-P2A-000	HONDA 13810-R40-A01	HONDA 13810-PT1-003
HONDA 13810-PLM-A01 90704-634-000	HONDA 13810-P2K-J01 13810P2KJ01	HONDA 13810-RZP-003	HONDA 13810-POA-003	HONDA 13810-RZA-003	HONDA 13810-PWA-013 13810PWC013

For more details, please click here to contact us！

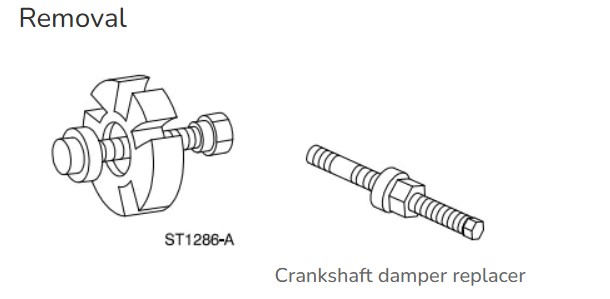

Crankshaft Pulley Removal and Installation

Crankshaft damper remover BMW, Ford, Toyota Automobile Repair Crankshaft Belt Pulley Replacement Parts Crankshaft Damper Replacement Tool 1. Remove engine cooling fan and fan shield (8146). For more information, see Section 303-03. 2. Remove the drive belt (8620). For more information, see Section 303-05. 3. Lift the vehicle with a crane. For more information, see section 100-02. 4. Remove crankshaft pulley bolt (6A340). 5. Use crankshaft damper remover to remove crankshaft pulley (6312)

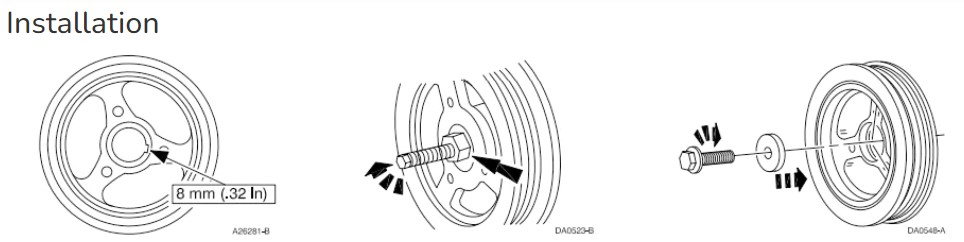

1. Note: If it is not fixed within 4 minutes, these sealants must be removed, and the sealing area must be cleaned with metal surface cleaner F4AZ-19A536-RA or equivalent product conforming to Ford specification WSE-M5B392-A. Dry until there is no sign of moisture, or 4 minutes, whichever is shorter. Failure to follow this procedure may result in future oil leakage. Apply silicone on the half moon keyway of the crankshaft handle. Use silicone gasket and sealant F7AZ-19554-EA or equivalent according to FordspedflcatlonWSE-M4G323-A42

2. Stall the crankshaft pulley with the crankshaft damper replacer

3. Tighten the crankshaft pulley bolts in four stages Stage 1: Tighten to 90 Nm (66 lbf ft) Stage 2: Loosen 360 degrees Stage 3: Tighten to 47-53 Nm (35-39 lbf ft) Stage 1: Tighten again to 85-95 degrees

4. Lower the vehicle 5. Install the engine cooling fan and fan housing

We also provides belts matching pulleys：https://planetary-gearboxes.en.Raydafon.com/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11

Technological Processing

Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
