Product Description

Factory Y3120CNC10 5 module CNC gear Hobbing machine with integrated chamfering station

Products Description

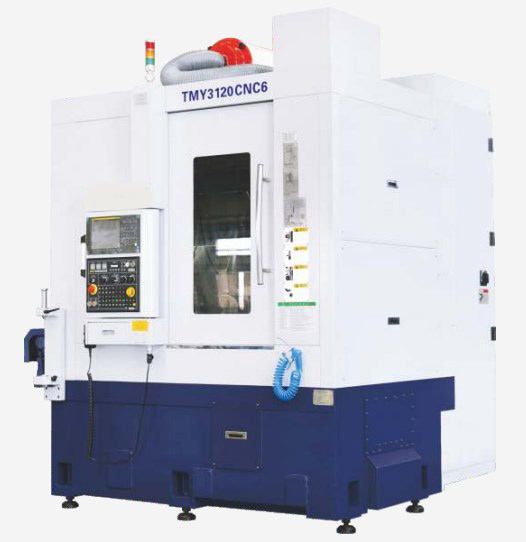

Y3120 CNC Hobbing machine with integrated chamfering station

The gear composite machine series products can meet the personalized needs of various customers in the gear industry, and can be freely selected by customers to meet the processing needs of small and medium-sized module gears in industries such as passenger vehicles, new energy vehicles, and small and medium-sized engineering machinery.

Modular design is adopted, for every functional components, for example: chamferingassembly、hydraulic station、pneumatic assembly、electrical cabinet and chipconveyor, which can be quickly combined according to customers' needs, withcompact overall layout, small floor area, meeting customerspersonalized、fastdelivery requirements.

Using two independent control systems to control the hobbing station and chamfering station processing, compared to the traditional dual channel control method, human-machine engineering is friendly and the operation is more convenient.

Special control software, special operation interface, without programming, only need to input the gear, tool and related cuttingparameters to realize the automatic machining of hobbing and chamfering station, operation is stable and reliable.

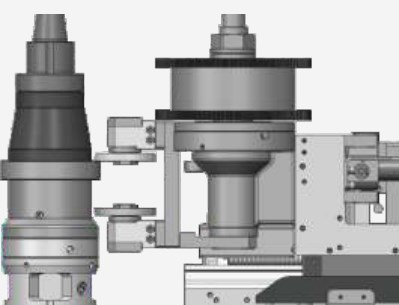

nner bulit-in chamtering structure.4-position rotating loading and unloading device. chamterng at the same time in cear hobbingoperation, to realize efficient production.

ihe edcing soueezing station can adjust edoing scueezing and the height of deburring at wrll, and the chamtering station can realizerapid production change, at the same time, to use the special design, allows the optional turning deburring function.

Using first-class parameter technology companies in the United States ( PTC ) . CAD / CAM / CAE integration of Pro / Engineer 3 d dessoftware . Combining parts design , product assembly , reverse engineering , automatic measurement , mechanism analysis , finite elemnt and other functions,greatly improve the quality of product research and development.

By skilled workers to shovel scraping all the important contactarea , to provide reliable guarantee for high rigidity and highprecision of the machine

All the castings , such as bed , large column and rear columnhave undergone secondary aging treatment , which can fullyeliminate the internal stress of the castings , improve the stabilityof the dimensional accuracy of the castings , and ensure the longterm stability of the precision of the machine tool.

Machine using FEA ( finite element analysis ) design methodoptimized design according to the status of force bearinganalysis on the machine tools , machine tool quality greatlimproved , so as to make the machine without rigidvulnerabilities and rigid uniform distribution , greatly reduce theforced deformation of machine tool , has excellent performance

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
