Product Description

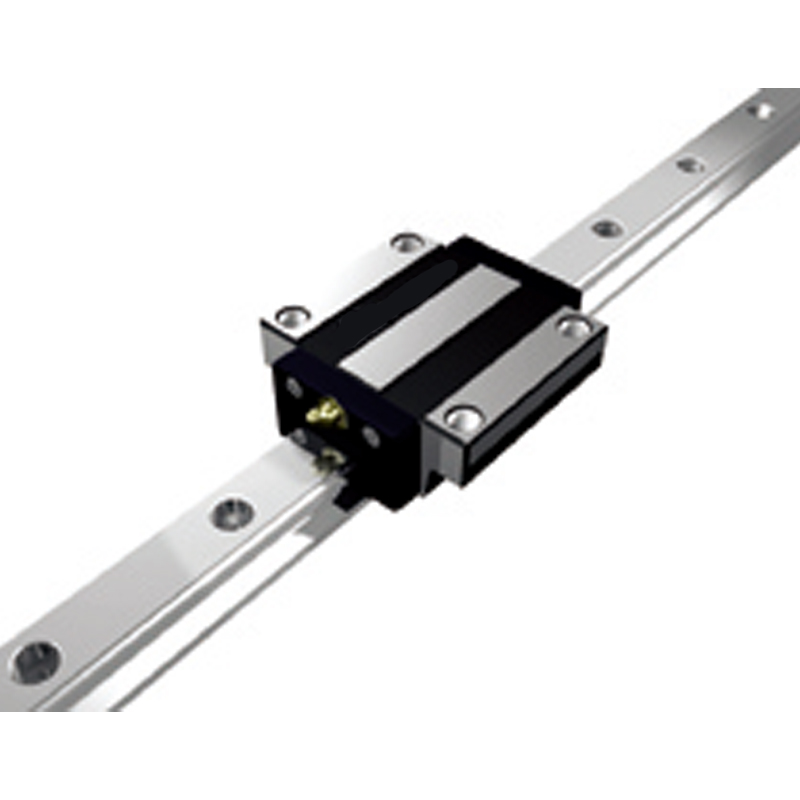

GGB-AB/ABL 4 Direction Equal Load Ball LM Guide Linear Guideway guide rail For CNC Machine Tool Lathe

Products Description

GGB-AB/ABL 4 direction equal load ball LM guide

Note :

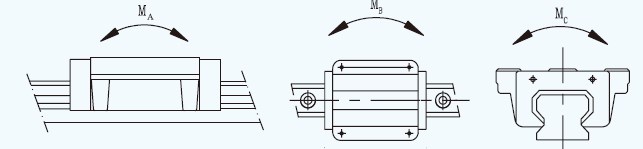

1 . Ma , Ma , Me are shown in right-under diagram , each indicates ratedtorque value of one block

2 . Lee is the maximum length of one rail , please contact if need rail joint

3 . Distance from both ends to the mounting hole in one rail is equal if withoutspecal reque

4 . There is no bafle of both ends of GGB35-85 rails , please note if you need

5 . Please note if need oil of side surface

6 . Because of the height difference of GGB25AB / ABL and height holedistance difference of GGB45AB / ABL , we classify with I and Il , Il is therecommended one

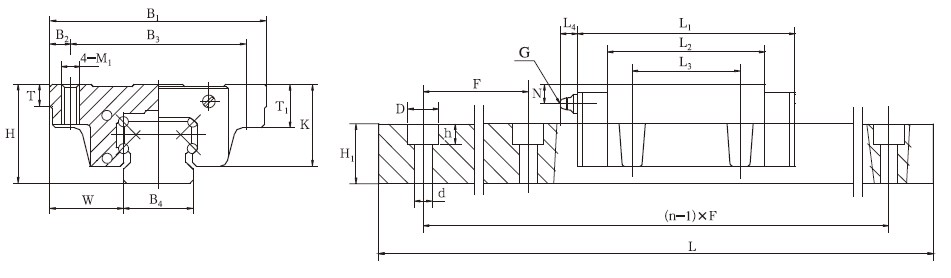

Basic structure of GGB series

Application

Mechanical processing center, CNC lathe, spark wire cutting machine, gantry type wood machinery. Laser machines, precision testing instruments, packaging machines, food machinery, medical machinery, tool grinders, surface grinders
