Product Description

GIR...DO Series Joint Rod End with Left or Right Hand Female Thread GIR6DO GIR80DO

Product Description

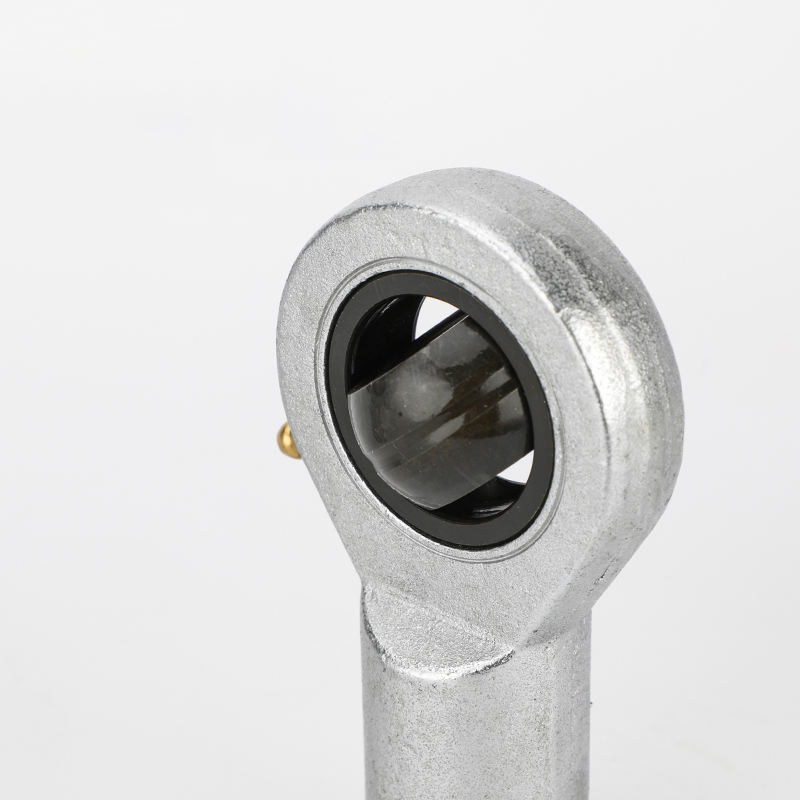

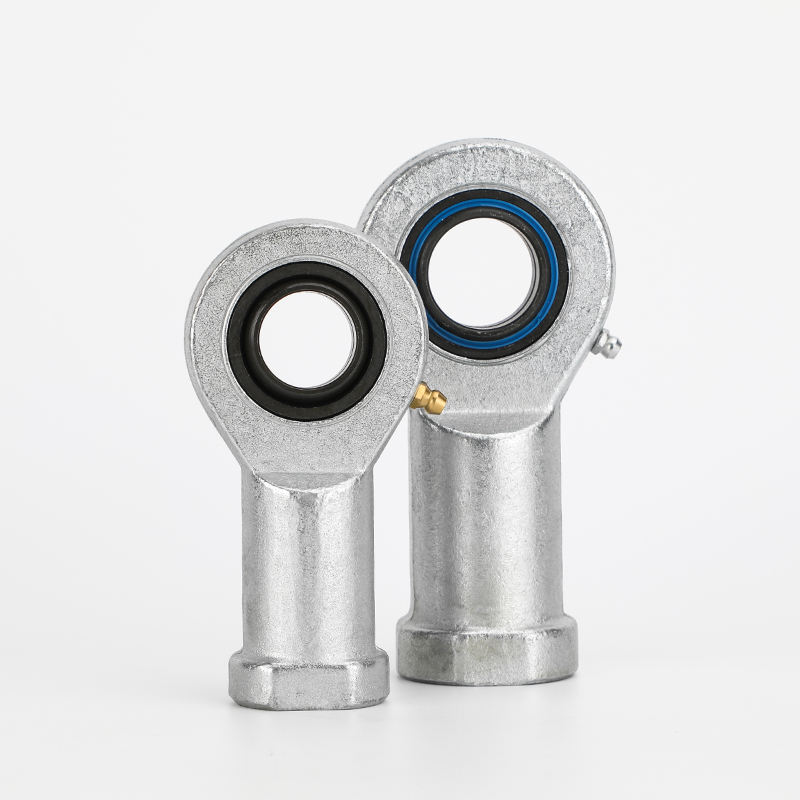

GIR...DO Rod End Bearing

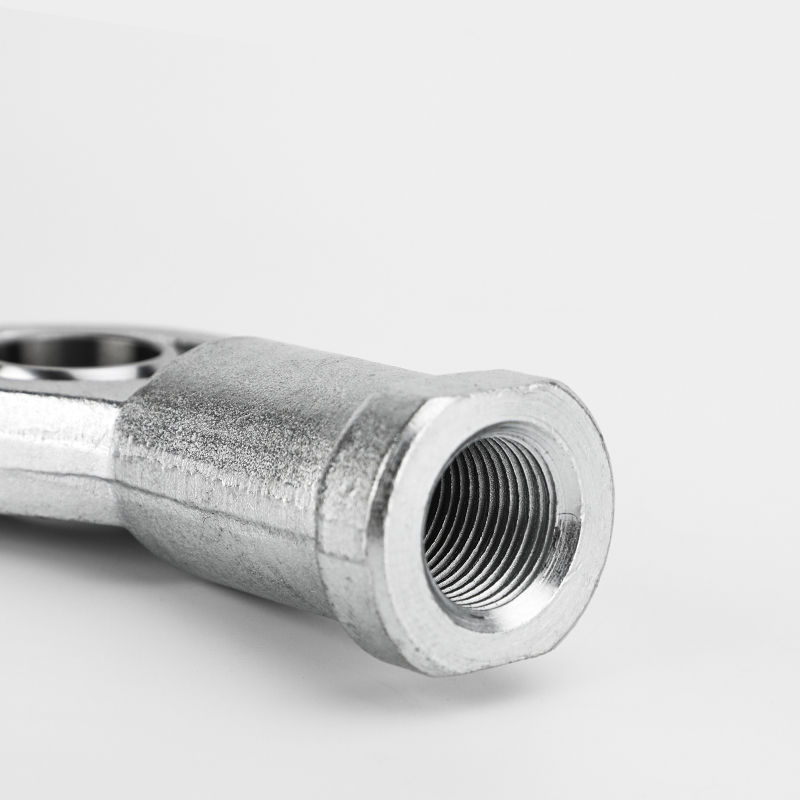

--Rod body with left or right-hand female thread

--It is made up of a radial spherical plain bearing GE..E（S）or GE..ES 2RS and rod body

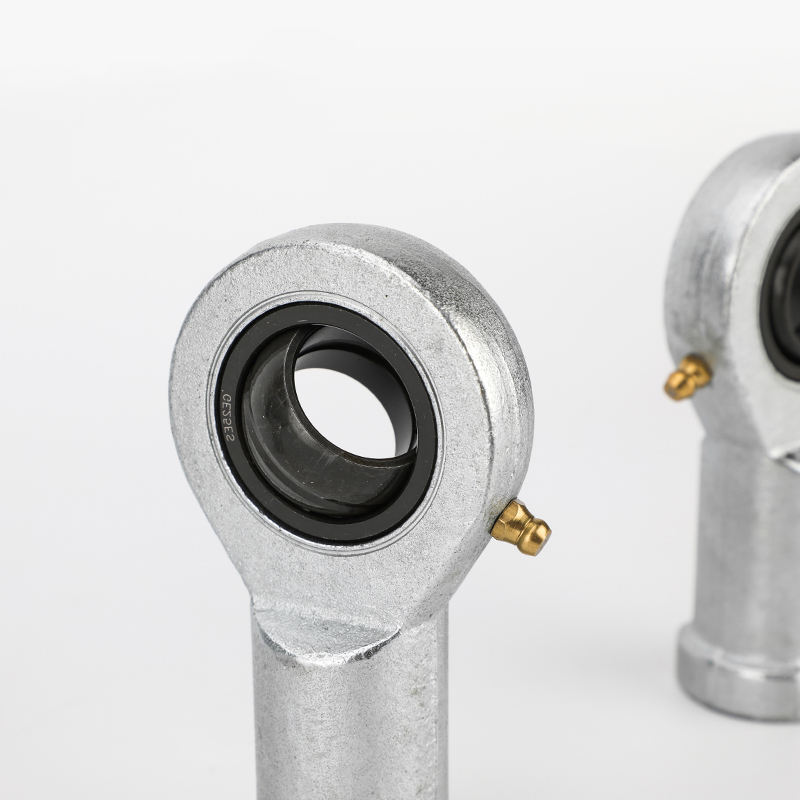

--Surface of rod body zinc plated，housing of SI..ES with a lubricating hole or grease nipple

* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

Specification

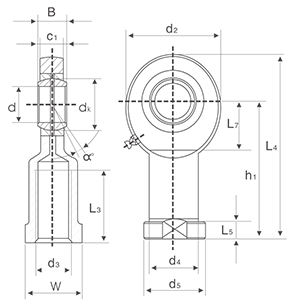

Part Number	Dimensions（mm）					Load ratings（KN）	Weight（g）
	d	d3	B	dyn.c	stat.c0
GIR 6 DO*	6	M6×1.0	6	3.4	8.15	21
GIR 8 DO*	8	M8×1.25	8	5.5	12.9	39
GIR 10 DO*	10	M10×1.5	9	8.15	17.6	61
GIR 12 DO*	12	M12×1.75	10	10.8	24.5	96
GIR 15 DO	15	M14×2.0	12	17	36	180
GIR 17 DO	17	M16×2.0	14	21.2	45	220
GIR 20 DO	20	M20×1.5	16	30	60	350
GIR 25 DO	25	M24×2.0	20	48	83	640
GIR 30 DO	30	M30×2.0	22	62	110	930
GIR 35 DO	35	M36×3.0	25	80	146	1300
GIR 40 DO	40	M39×3.0	28	100	180	2000
GIR 45 DO	45	M42×3.0	32	127	240	2500
GIR 50 DO	50	M45×3.0	35	156	290	3500
GIR 60 DO	60	M52×3.0	44	245	450	5500
GIR 70 DO	70	M56×4.0	49	315	610	8600
GIR 80 DO	80	M64×4.0	55	400	750	12000

-For left-hand thread ,please add surffix "L" ,e.g.sil 30es.
-For bearings d≥15 ,SI..ES 2RS also available ,e.g.SI 25 ES 2RS
-Lubricating hole or grease nipple isn’ t available for the sizesnarked “*”

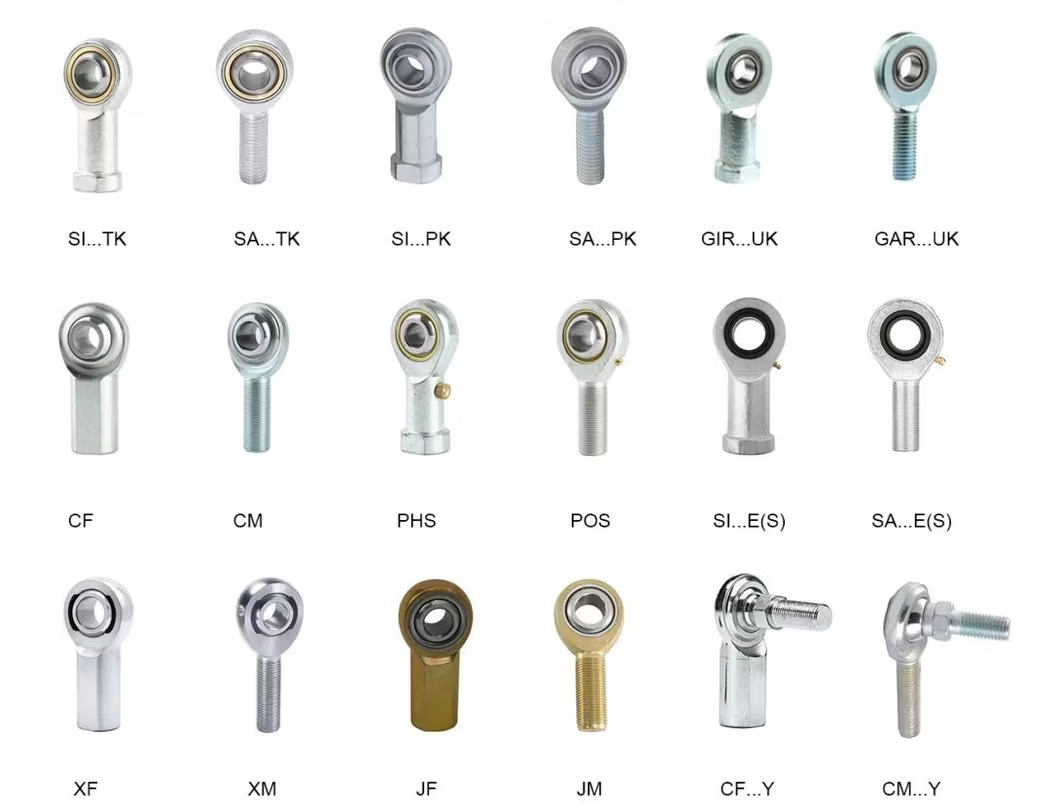

Related Products
