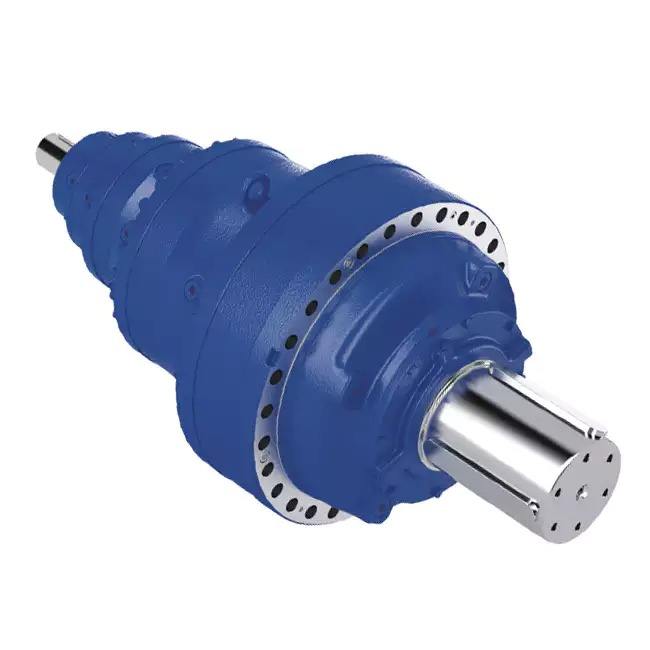

Heavy Duty Planetary Reducer Gearmotor Replacement of Rossi R2E200 R2E201 R2E240 R2E241 R2E280 R2E355 R2E428 R2E429 R2E445 R2E44

Heavy Duty Planetary Reducer Gearmotor Replacement of Rossi R2E200 R2E201 R2E240 R2E241 R2E280 R2E355 R2E428 R2E429 R2E445 R2E44Video Description00:00/00:00Products DescriptionCharacteristics of gear motor of heavy planetary reducer*Multilevel modular design*Easy customization*Modular add ons*Ground......

Heavy Duty Planetary Reducer Gearmotor Replacement of Rossi R2E200 R2E201 R2E240 R2E241 R2E280 R2E355 R2E428 R2E429 R2E445 R2E44

Video Description

00:00/00:00
Products Description
Characteristics of gear motor of heavy planetary reducer *Multilevel modular design *Easy customization *Modular add ons *Ground gear (bevel gear and planetary gear) *Easy to apply to any industrial application *Shorten maintenance cycle *Easy to maintain *Global product and service support *Size - 4 sizes (1060... 3000) *Rated torque /tn2/- from 1060000 to 3000000 n · M *Transmission ratio / inch / -80... 1000
The models we can replace Rossi
ROSSI Model
Our Model
ROSSI Model
Our Model
ROSSI Model
Our Model
R2E200
EP-R2E200
R3E200
EP-R3E200
R4E200
EP-R4E200
R2E201
EP-R2E201
R3E201
EP-R3E201
R4E201
EP-R4E201
R2E240
EP-R2E240
R3E240
EP-R3E240
R4E240
EP-R4E240
R2E241
EP-R2E241
R3E241
EP-R3E241
R4E241
EP-R4E241
R2E280
EP-R2E280
R3E280
EP-R3E280
R4E280
EP-R4E280
R2E355
EP-R2E355
R3E355
EP-R3E355
R4E355
EP-R4E355
R2E428
EP-R2E428
R3E428
EP-R3E428
R4E428
EP-R4E428
R2E429
EP-R2E429
R3E429
EP-R3E429
R4E429
EP-R4E429
R2E445
EP-R2E445
R3E445
EP-R3E445
R4E445
EP-R4E445
R2E446
EP-R2E446
R3E446
EP-R3E446
R4E446
EP-R4E446
R2E542
EP-R2E542
R3E542
EP-R3E542
R4E542
EP-R4E542
R2E543
EP-R2E543
R3E543
EP-R3E543
R4E543
EP-R4E543
R2E695
EP-R2E695
R3E695
EP-R3E695
R4E695
EP-R4E695
R2E696
EP-R2E696
R3E696
EP-R3E696
R4E696
EP-R4E696
Other Types of Planetary Gearboxes
Heavy Duty Planetary Reducer Gearmotor Replacement of Rossi R2E200 R2E201 R2E240 R2E241 R2E280 R2E355 R2E428 R2E429 R2E445 R2E44
How to install the Rossi planetary reducer gear motor
❶ tighten and tighten the torque Use screws and tightening torques according to the design and dimensions specified on the nameplate; At least level 10.9 is required, but in the case of heavy stress, alternating load and impact, level 12.9 is used (if m2<70% × Mn2 can use grade 8.8).Screws must be equipped with ISO 7089 washers (at least 300 HV). Carefully tighten the 12.9 screws. Over tightening will damage them. ❷ flange installation Please clean and carefully install the surface before installation. In the presence of external radial load or required torque m2>=0,7 ×。 For Mn2, it is suitable for locking adhesive. ❸ install the gear reducer with rotary output For the gear reducer with rotating output (output design RSH), in order to ensure the correct operation and good power transmission between the gear reducer and the machine, the gear reducer needs a rigid connection structure to bear the radial load. ❹ shaft installation layout When installing the shaft, the gear reducer must be supported axially and radially by the shaft end of the driven machine, and only the reaction force with axial movement freedom and sufficient clearance in its coupling to allow slight vibration is used to prevent rotation - always evidence - will not cause dangerous overload to the gear reducer. ❺ install hollow shaft with shrink disk Carefully remove the surface of the hollow shaft and the shaft end of the driven machine to be installed. Install the shrink disc on the hollow shaft of the gear reducer. First, lubricate only the outer surface of the hollow shaft. Tighten the first three screws and place them at about 120 °. Install the gear reducer on the shaft end of the machine; Slowly insert the shaft so that air escapes. Use a force wrench to tighten gradually and evenly in a continuous sequence (without crossing), about ¼ Circle several times until you can't reach it again ¼ Circle. Continue to apply torque for more than 1 to 2 times and verify the bolt tightening torque. In heavy load cycles with frequent reversals, verify the bolt tightening torque again after several hours of operation. ❻ adjustment of meshing clearance In order to adjust the meshing clearance, it is recommended to put itself in the initial minimum clearance state, which can be obtained by manufacturing the maximum eccentricity on the surface of the gear reducer: -If it is an internal gear, it faces the center of the rack; For the outer gear, 180 ° from the center of the rack. In this case, the meshing clearance shall not be less than 0,03 ÷ 0,04 x M. It is also recommended that the measured clearance be within the range recommended by the frame manufacturer. It is recommended to use a calibrated thickness to measure the gap. Only high-quality grease suitable for high load gear lubrication can be used for pinion and rack lubrication.
We, ever power, will provide appropriate equipment and parts for your agricultural applications to ensure that your agricultural needs are met. We are proud to offer more than 6000 stock parts, so you can be sure that we will have damaged parts that need to be replaced. Whether you need a hanger pin, blade, rake, PTO shaft, tie bar, disc bearing, roller chain, carolone lawn mower parts or spray. Even prepare a brand-new tractor seat for yourself to make yourself more comfortable in a day's work.
Heavy Duty Planetary Reducer Gearmotor Replacement of Rossi R2E200 R2E201 R2E240 R2E241 R2E280 R2E355 R2E428 R2E429 R2E445 R2E44

For more models or customization, please click here!
Click on the picture below for details
Heavy Duty Planetary Reducer Gearmotor Replacement of Rossi R2E200 R2E201 R2E240 R2E241 R2E280 R2E355 R2E428 R2E429 R2E445 R2E44
Heavy Duty Planetary Reducer Gearmotor Replacement of Rossi R2E200 R2E201 R2E240 R2E241 R2E280 R2E355 R2E428 R2E429 R2E445 R2E44
