Product Description

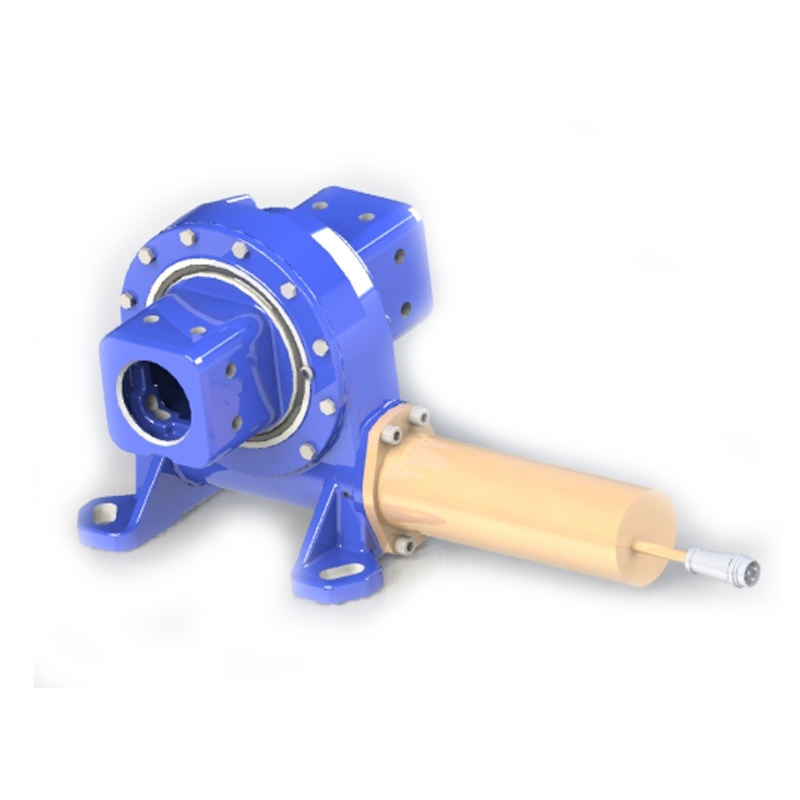

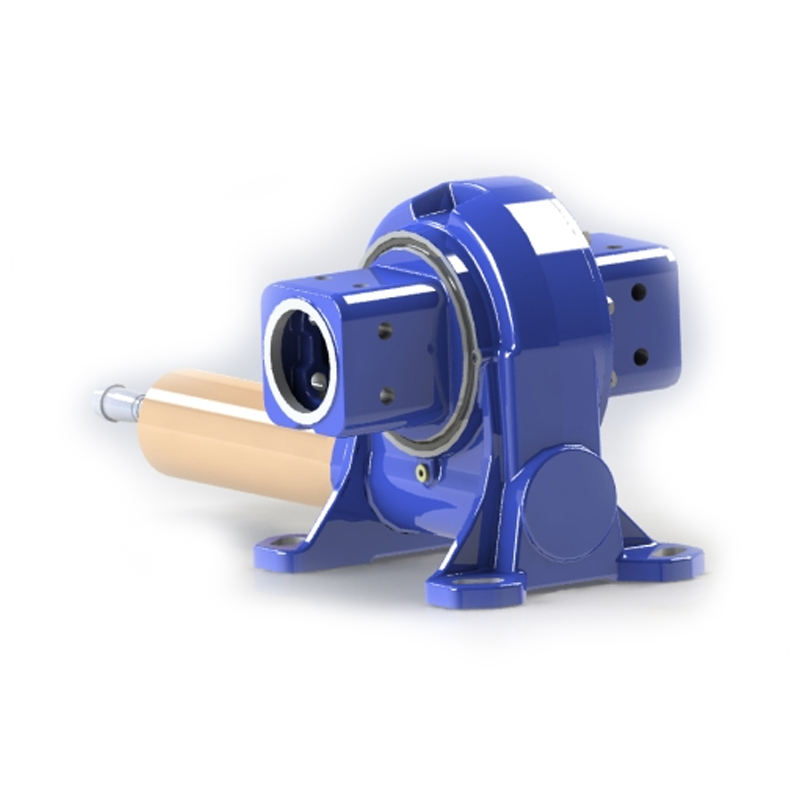

JV6 Series Ratio 55:1 Solar Energy Tracking Worm Gear Planetary Motor Slewing Drive Gearbox Reducer

Products Description

JV6 Slewing Drive

Product features:
1. The product adopts a blind hole design and a skeleton oil seal structure with reliable sealing performance. The sealing area can avoid direct sunlight, effectively prevent dust and water and the protection level can reach IP65. It is suitable for outdoor use and can output with single or double flanges.
2. Using specialized machine tools and equipment to produce torus worm gears with multiple teeth in contact, transmitting greater torque and able to withstand greater axial, radial and overturning forces.
3. The product design adopts universal dimensions both domestically and internationally making it convenient for later
replacement.
Application scope:
--Mainly used for the rotation of the pitch direction in solar tracking systems, it can also be applied to the rotation of certain special engineering machinery and industrial equipment.
--The rotation of the pitch position of solar power generation systems such as flat single axis, inclined single axis, slot type
power generation and concentrated solar power generation.
--Industrial equipment such as automatic feeding machines.

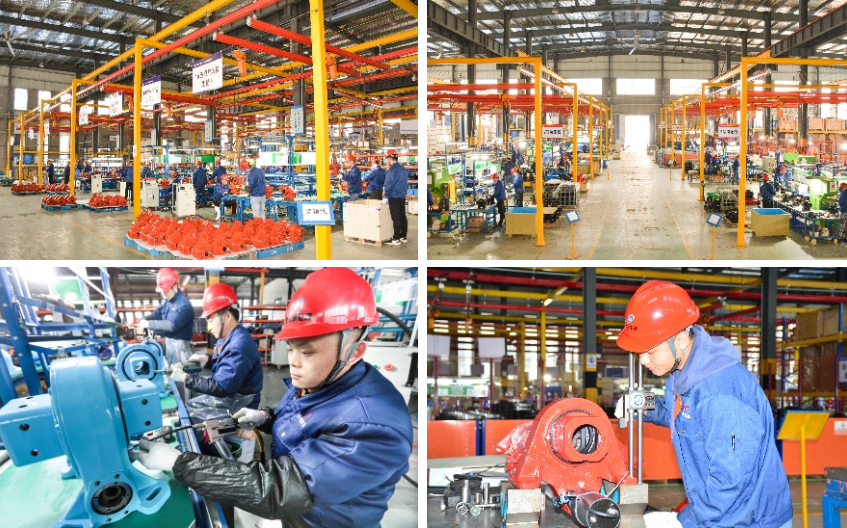

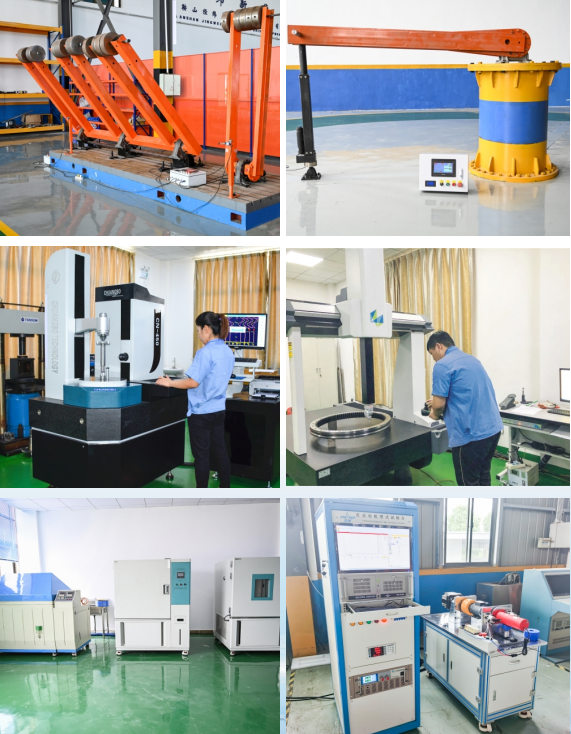

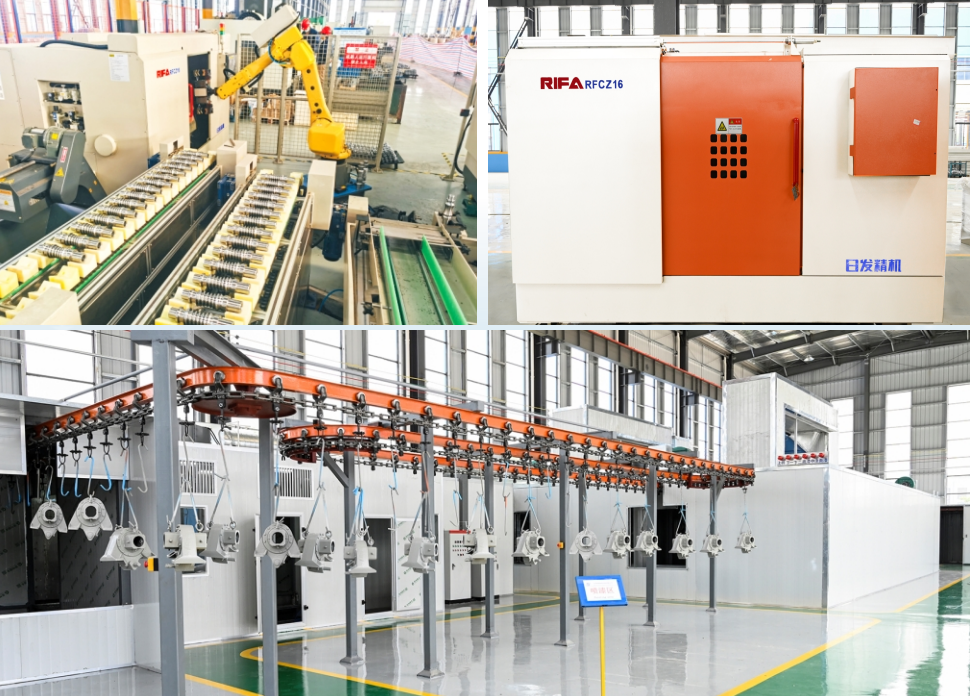

--First class german team --Customizing and individual --Top manufacture machine and test equipments --All products and parts are traceable andcomplete testing reports can be provided by JW --JV6 Series Products have been using in manyprojects for years ,great response received

For more details, please click here to contact us！

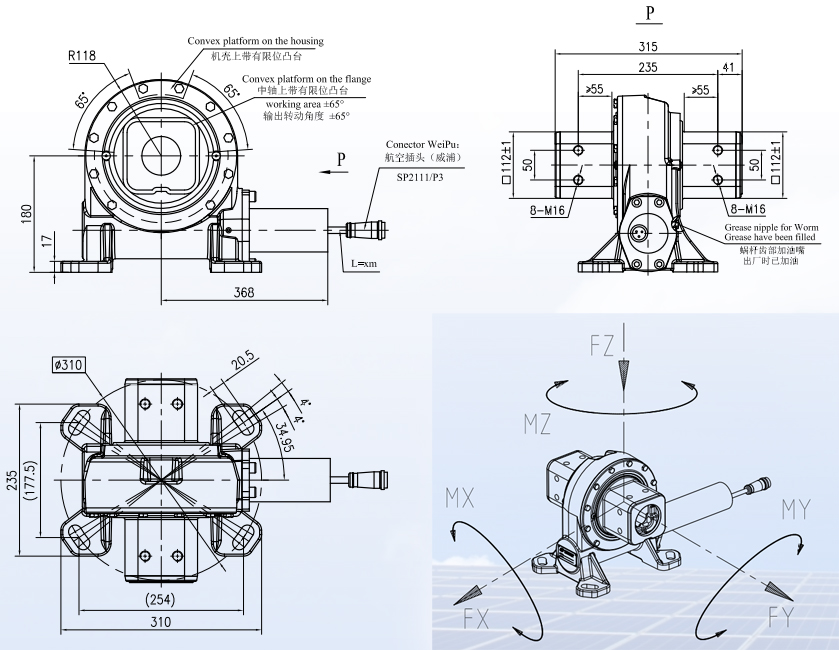

Basic Parameters

Slewing Drive Caplility
Ratio of worm gear	55:1
Tracking precision	≤0.25°
IP class	IP65
Temperature	-40-+80℃
Holding torque MY	25000N.m
Axial Static Load FY	Coa 38KN
Axial Dynamic Load FY	Ca 21KN
Radial Static Load FX FZ	Cor 70KN
Radial Dynamic Load FX FZ	Cr 37KN
Tilting Moment Torque MX MZ	Com 16KN.m
Planetary Reducer Motor Performance Date
Rated Voltage	24VDC
Rated Current	≤4.2A
Gear Ratio	736.37:1
IP Class	IP65
Temperature	-40-+80℃

Slewing Drive Performance Data
Nominal Output Speed	0.045rpm
Nominal Output Torque	3.3KN.m
Output torque	Output speed	efficiency	Motor Current
Nominal torque:3.3KKN.m Continuous operation Most operating conditions	0.045rpm	about 40%	about 4.2A
Nominal torque:4.8KN.m Continuous operation for 10 minute It should not exceed 5% of the total	0.04rpm	about 41%	about 6.2A
Large torque：7KN.m Warning: There is no safety factor
