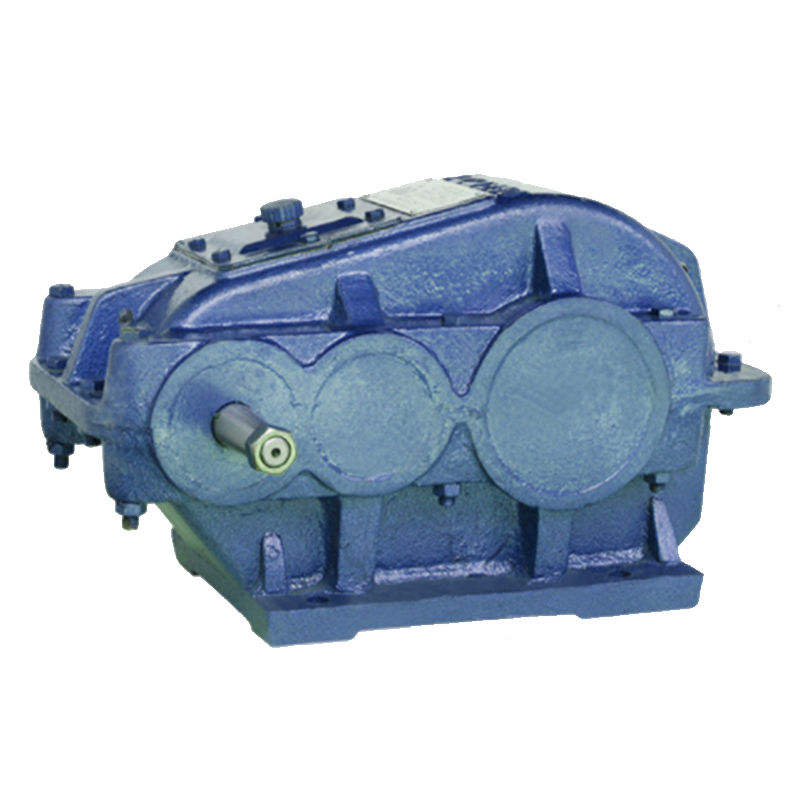

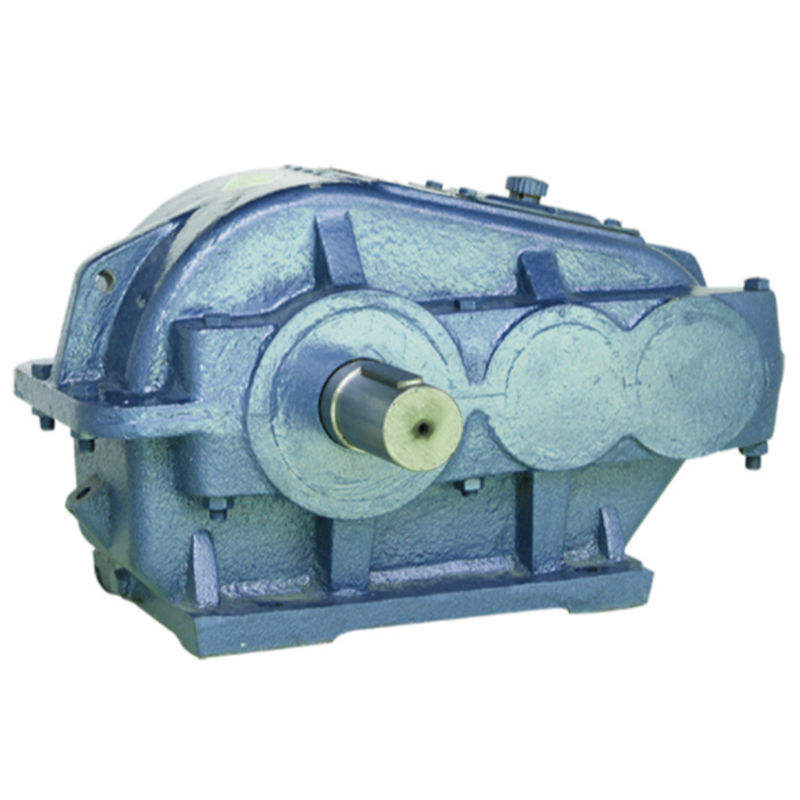

ZQ Cylindrical gear reducer gear carburizing, quenching, grinding, high bearing capacity, low noise; mainly used for belt conveyor and various kinds of transport machinery, can also be used to drive other general machinery. It has the advantages of high bearing capability, long service life, small volume, high efficiency, light weight, for the input shaft and the output shaft is vertically arranged in the driving device.
The field of cylindrical gear reducer is widely used in metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment etc..
Specification | Manufacturing Capacity(t/h) | Motor Power (kw) | Pulley Speed (r/min) | Gearbox Model | Weight(t) |
Φ0.6×8 m | 1.5-2.8 | 4 | 8 | JZQ 250-16- Ⅰ | 5.1 |
Φ0.8×10 m | 3 | 4 | 7.5 | JZQ 350-16- Ⅰ | 6.9 |
Φ10×10 m | 3.3-4.9 | 5.5 | 5.8 | JZQ 400-16- Ⅰ | 7.5 |
Φ1.2×10 m | 4-6 | 7.5 | 4.8 | ZL 50-16- Ⅰ | 13.5 |
Φ1.5×12 m | 4-6 | 10 | 4.8 | JZQ 500- Ⅲ-2F | 18.9 |
Φ1.5×15 m | 7-12 | 18.5 | 4.8 | ZQ 500- Ⅲ-2F | 21 |
Φ1.8×12 m | 7-12 | 18.5 | 4.1 | JZQ 50-16 Ⅱ-2 | 22.83 |
Φ2.2×12 m | 12 | 18.5 | 3.2 | JZQ 650- Ⅲ | 37.6 |
Φ2.2×14 m | 12 | 22 | 3.2 | JZQ 650- Ⅲ | 40 |
Φ2.2×16 m | 10-13 | 30 | 3.2 | JZQ 750- Ⅲ | 45 |
Φ2.4×14 m | 10-14 | 30 | 3 | JZQ 750- Ⅲ | 51 |
Φ2.4×18 m | 25 | 37 | 3 | ZL85-13-Ⅰ | 54 |
Φ2.4×20 m | 32-36 | 37 | 3 | ZL 85-13- Ⅰ | 54.14 |
Φ3×20 m | 40-50 | 55 | 2.59 | ZL 100-16- Ⅰ | 78 |
Φ3×25 m | 45-58 | 75 | 2.59 | ZL 100-16-I | 104.9 |

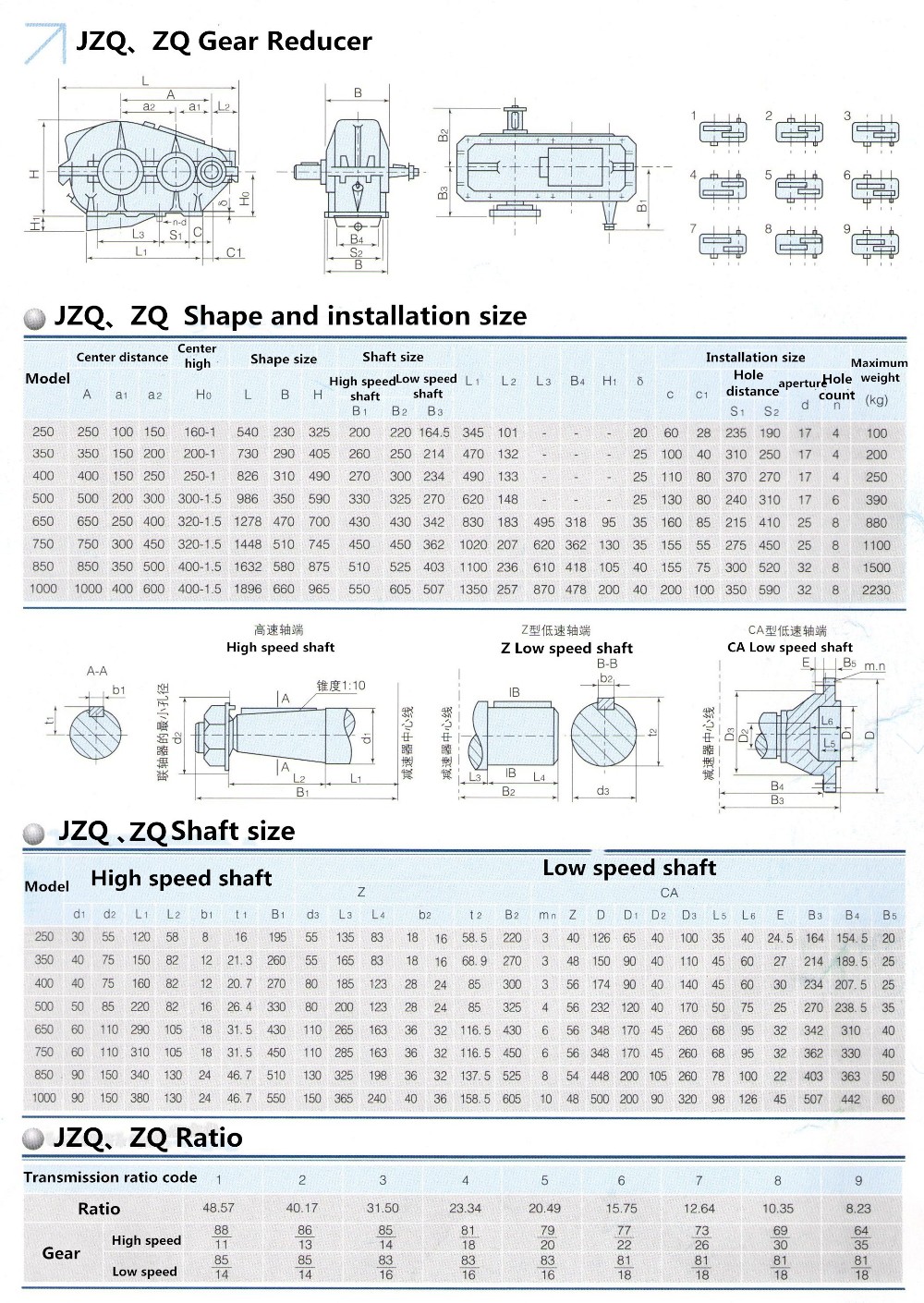

Zq Cylindrical gear speed reducer is a three-level transmission of involute cylindrical gear reducer, mainly used inmining, metallurgy, cement, construction, chemical industry, light industry, etc all kinds of mechanical equipment, reduction drive, is suitable for the workplace being limited by the structure adopts the vertical installation, high-speed spindle speed not more than 1500 r/min, the work environment to + 40 °C and 40 °C -, can positive &negative operation.
1.gear with high strength and low carbon alloy steel by carburizing quenching, tooth surface hardness of HRC58-62, gear are CNC grinding process, high precision, good contact.
2.transmission rate is high: single stage is greater than 96.5%, double stage is greater than 93%, grade three is greater than 90%.
3.stable operation, low noise.
4.small size, light weight, long service life, high carrying capacity.
5.easy to be disassembled and easy to install.
a gift enterprise integrating development, design, production and sales,Main promoting products include reducer motor,water pump,construction machinery and parts,bearings,hardware and electrical equipment,plastic products,Labour protection appliance.Our company always follow the operation concept which contains people-oriented, innovation as the soul,be prepared for ....
Packaging | ||
Size | 500 (L) * 500 (W) * 400 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 500 (L) * 500 (W) * 400 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
A: We are a manufacturer in Zhejiang China.welcome to our factory to have a visit.
A:You can email us the series name & code (for example: WJ series worm reducer) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is better.
A: We will give the best price we can base on your needs and the quantities.
A: Within 12 hours.
A:We offer one year warranty since the vessel departure date left China.
A:Our gearboxes are widely applied to metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment and so on.
