Product Description

Low Price Guaranteed Quality Finished Bore QD Sprocket Chain & Sprocket in Steel and Stainless Steel

Product Description

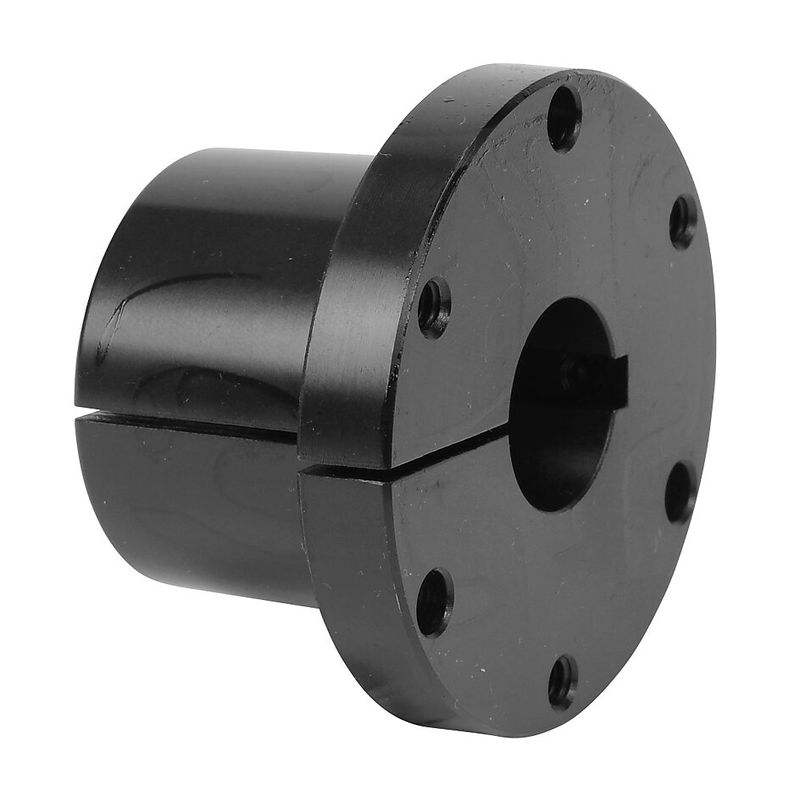

QD bushing is easy to install and remove. They are separated by the barrel and have a taper to provide true clamping on the shaft. They are keyed to the shaft and hub to facilitate blind installation.

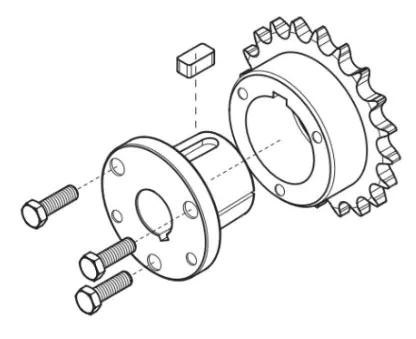

How to install QD sprocket Make sure that the tapered surface of the bushing and the inside of the driven product are clean and free of anti seize lubricant Place the bushing in the sprocket or other parts. Place the cap screw loosely in the upper pull hole. The bushing remains loose to ensure a sliding fit with the shaft Use the keys on the shaft to slide the sprocket to the desired position on the shaft. Make sure that the head of the cap screw is accessible. Align the sprocket. Tighten the screws alternately and gradually until they are tightened (see the table below). Do not use an extension on the wrench handle. Do not allow the sprocket to contact the bushing flange. There should be clearance between bushing flange and sprocket.

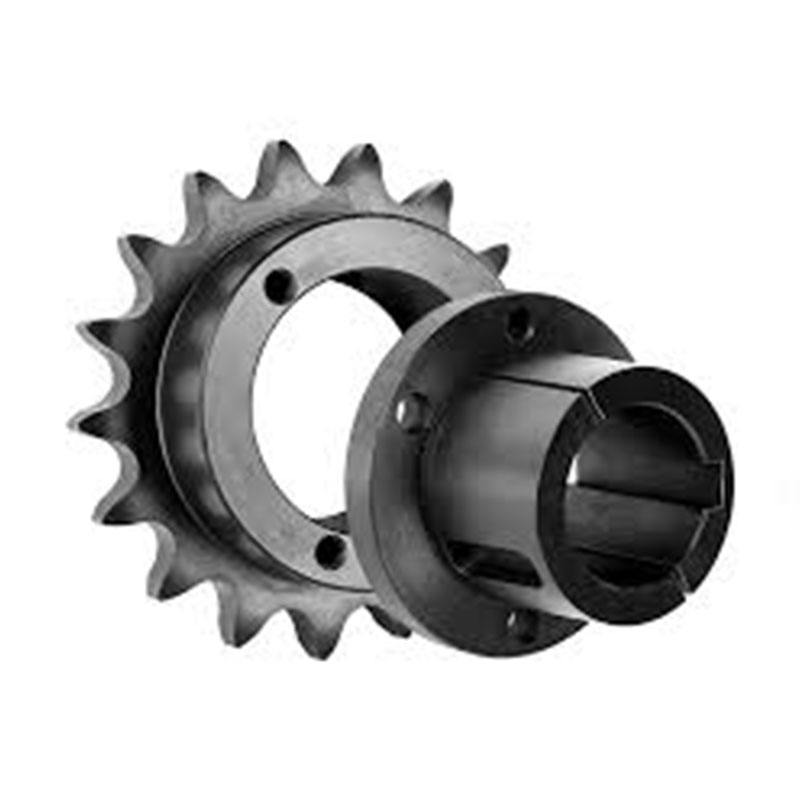

The QD sprocket has a quick removable bushing and a flange that connects the bushing to the sprocket. It is also designed with a four degree taper and has cap screws for installation. The bushing also has hardened teeth to withstand wear. size There are QD sprockets of various sizes. These single strand steel sprockets can be ordered in two different styles: with and without hardened teeth. The diameter of the sprocket determines how many teeth it can hold. matters needing attention It is important to understand the correct procedure before installing the QD sprocket. To ensure a successful installation, you need to follow several steps. First, you need to check the sprocket hub for any contamination. Next, you need to install the QD bushing in the proper position, which should be done with a torque wrench. Then, gradually tighten the bolts evenly. Be careful not to overtighten the bolts as this will cause premature failure of the bushing. Also ensure that there is clearance between the QD bushing flange and the chain hub. This clearance protects the chain hub from excessive pressure. The QD bushing is designed to insert into the tapered hole of the sprocket. The bushing is flanged to the sprocket and the flange is held in place by capscrew bolts. Another precaution when using QD sprockets is to avoid applying anti seize lubricant to the cone. This may damage the sprocket and invalidate any manufacturer's warranty. QUICK REMOVAL BUSHING The number of teeth and chain size of QD sprocket of NOVA inlet line are as follows. The most popular sizes are 40, 50, 60 and 120. These sprockets can be easily removed. The QD sprocket has a tapered flange that connects the bushing to the sprocket. The flange is secured to the sprocket with cap screws. This facilitates removal and installation. The following steps are required to install the QD bushing. First, make sure that the flange of the bushing is clean and dry. Then, align the sprocket with the bushing. If there is a gap between the flange and the chain hub, lock washers can be used to ensure proper sealing. Hardened teeth The hardened teeth on the QD sprocket are designed to be stronger and more durable. They have a black oxide surface to prevent rust and are precision machined to achieve maximum transmission efficiency. In addition to being tough, they can also resist bad weather. In addition to hardened teeth, Martin's saber tooth sprocket is also hardened to extend the life of the chain. This type of sprocket is recommended for ratios of four to one and smaller. It is also recommended for sprockets with less than 24 teeth. SMART TOOTH technology is another feature that makes these sprockets unique. It includes a wear indicator pin that is placed in the thrust face of the tooth. The wear indicator pin will be exposed when the profile begins to reverse.

Customization process

1.Provide documentation：CAD， DWG， DXF， PDF，3D model ，STEP, IGS, PRT2.Quote：We will give you the best price within 24 hours
3.Place an order：Confirm the cooperation details and sign the contract, and provide the labeling service
4.Processing and customization：Short delivery time

For more types，please click here to contact us！

We also provide various chains:https://planetary-gearboxes.en.Raydafon.com/productgrouplist-910440271/Chain.html
