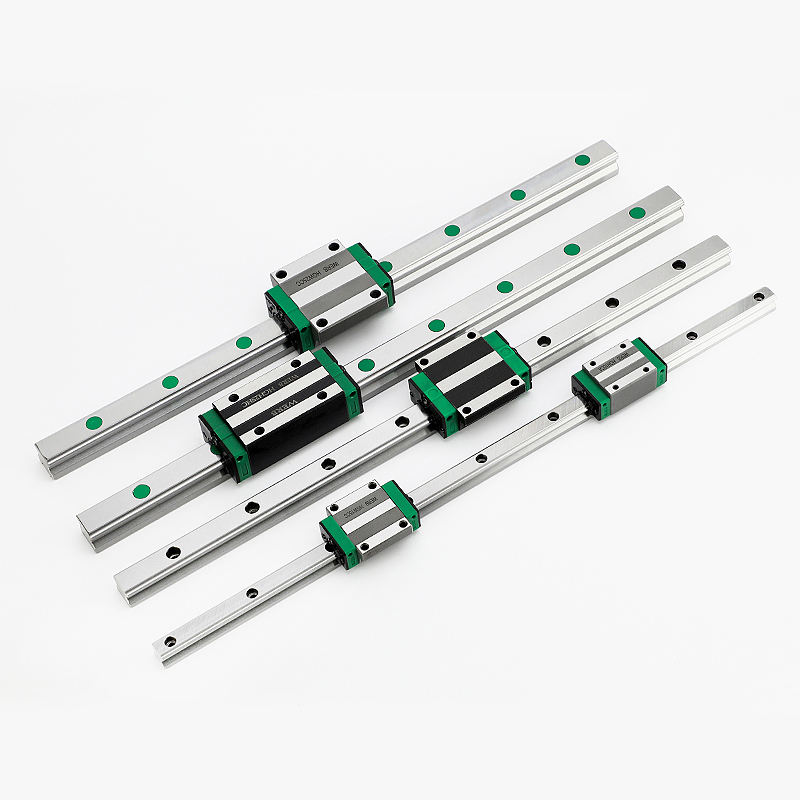

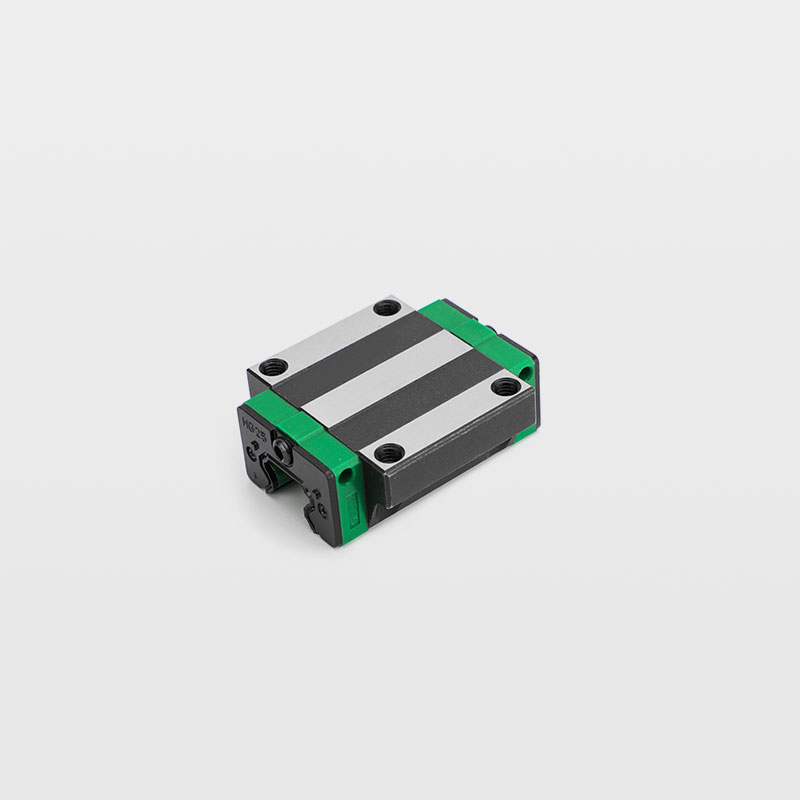

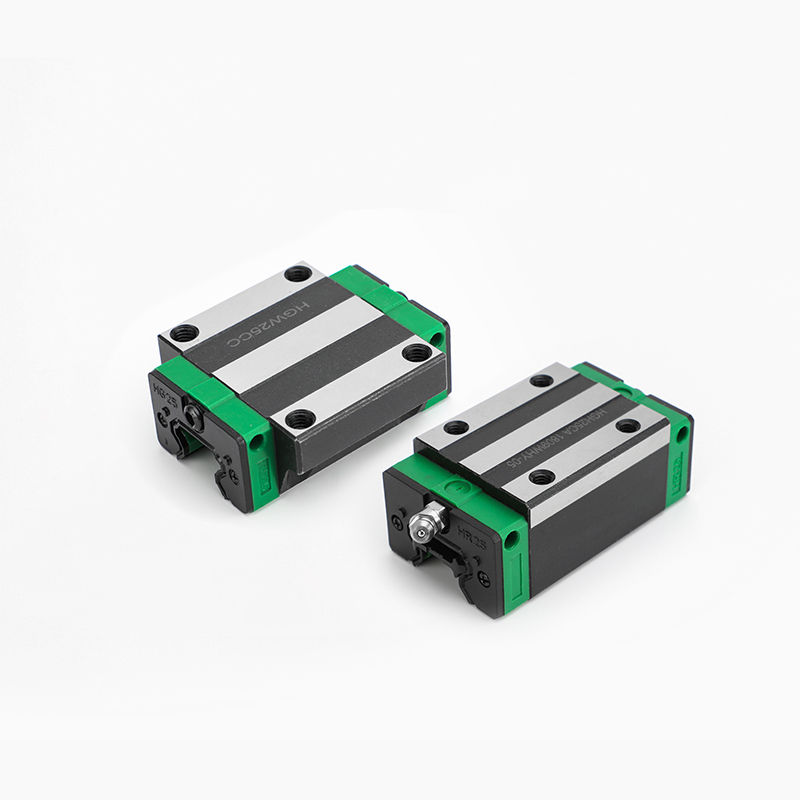

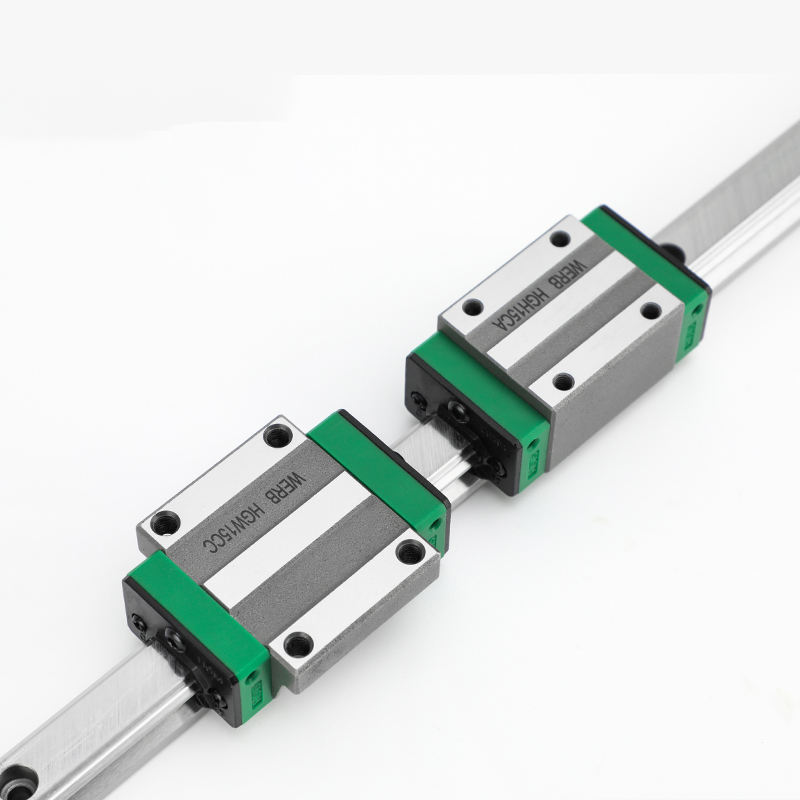

MGW-C MGW-H Series Linear Guideway Guide Rail for CNC Machine Tool Lathe

Products Description

MGW-C/MGW-H Linear Guideway

Linear Guideway is a high-precision linear motion system widely used in various industrial equipment that requires precise linear motion. It achieves low friction and high load-bearing capacity by rolling balls or rollers between the guide rail and slider, ensuring smooth and accurate linear motion.

Model No.	Dimensions of					Mounting	Basic Dynamic	Basic Static	Weight
		Assombly( mm )					Bolt for Rail	Load Rating	Load Rating	Block	Rail
		H	H1	N	( mm )	C(kN)	CO(kN)	kg	kg/m
MGW 5C	6.5	1.5	3.5	M2.5x7	0.68	1.18	0.016	0.34
MGW 5CL	6.5	1.5	3.5	M2.5x7	0.68	1.18	0.016	0.34
MGW 7C	9	1.9	5.5	M3x6	1.37	2.06	0.02	0.51
MGW 7H	9	1.9	5.5	M3x6				0.51		1.77	3.14	0.029
MGW 9C	12	2.9	6	M3x8	2.75	4.12	0.04	0.91
MGW 9H	12	2.9	6	M3x8				0.91		3.43	5.89	0.057
MGW 12C	14	3.4	8	M4x8	3.92	5.59	0.071	1.49
MGW 12H	14	3.4	8	M4x8				1.49		5.1	8.24	0.103
MGW 15C	16	3.4	9	M4x10	6.77	9.22	0.143	2.86
MGW 15H	16	3.4	9	M4x10				2.86		8.93	13.38	0.215

Basic structure of GGB series

Application

Application area

Linear Guideway is widely used in multiple industries, including but not limited to: ---Machine tools: CNC machine tools, machining centers, etc., ensure precise positioning of cutting tools and workpieces. ---Automation equipment: robot arms, conveyor systems, etc., providing stable linear motion. ---Electronic manufacturing industry: semiconductor production equipment, SMT surface mount machines, etc., ensuring high-precision assembly and testing. ---Medical devices: imaging diagnostic equipment, surgical robots, etc., achieve precise movement control. --Packaging machinery: packing machines, palletizing machines, etc., to improve production efficiency and product quality.
