New Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping
  • New Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal WrappingNew Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping
  • New Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal WrappingNew Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping
  • New Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal WrappingNew Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping
  • New Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal WrappingNew Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping
  • New Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal WrappingNew Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

New Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

New Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal WrappingProduct Description08B1GCASSChain SizeStrandGripper ChainTypeBase Chain MaterialNew Button Clamp (Type H)allows symmetrical rotation. The holding force is determined by the material being t......
Send Inquiry
Product Description

New Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

Product Description
New Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping
08B
1
GC
A
SS
Chain Size
Strand
Gripper Chain
Type
Base Chain Material
New Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

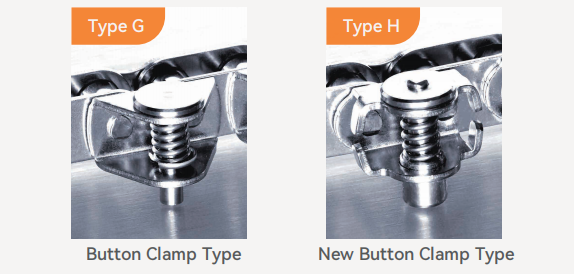

New Button Clamp (Type H)
allows symmetrical rotation. The holding force is determined by the material being transported. The clamp does not swivel away outwards when opened
Code
DIN / ISO
Material
Pitch
Inside Width
Roller Dia.
Clamp Force
Tensile Strength
Base Chain
Clamp
Spring
P mm
b1 Max
mm
d1 Max
mm
Q-C
N
Q Min
kN
10B1GC-H
10B-1
SS
SS
SS
15.875
9.65
10.16
80
18.5
10B-1
NP
SS
SS
15.875
9.65
10.16
80
22.4
With more than 20 years experience of stainless steel chains production, we are becoming one of the leading manufacturers in China. After continuous study and investment, we now have almost all popular Gripper Chain models. Those high-performanced chains are widely welcomed by both OEM and after-market, domestic and overseas customers.
New Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

Gripper Chain Features

1.Gripper Chains with Base Chains available both in Nickel Plated and Stainless Steel, for excellent corrosion
resistance;
2.Stainless springs are made of Japan-imported material which ensure the clamping force always;
3.For stainless steel base chain, Pin & Bush are made of AISI 630HT which provides outstanding wear-resistance;
4.Supplied in Pre-streched and matched strands which guarantee trouble-free machine set-up;
5.Furthermore, Lube-free Nickel Plated chain version is also available upon request.
Applications
New Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping
New Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

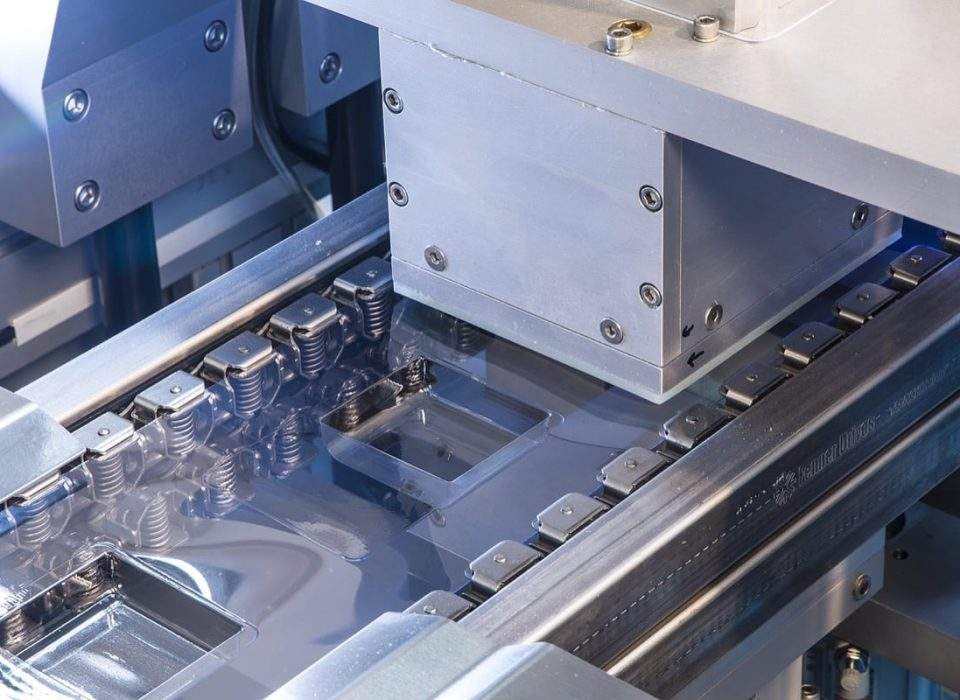

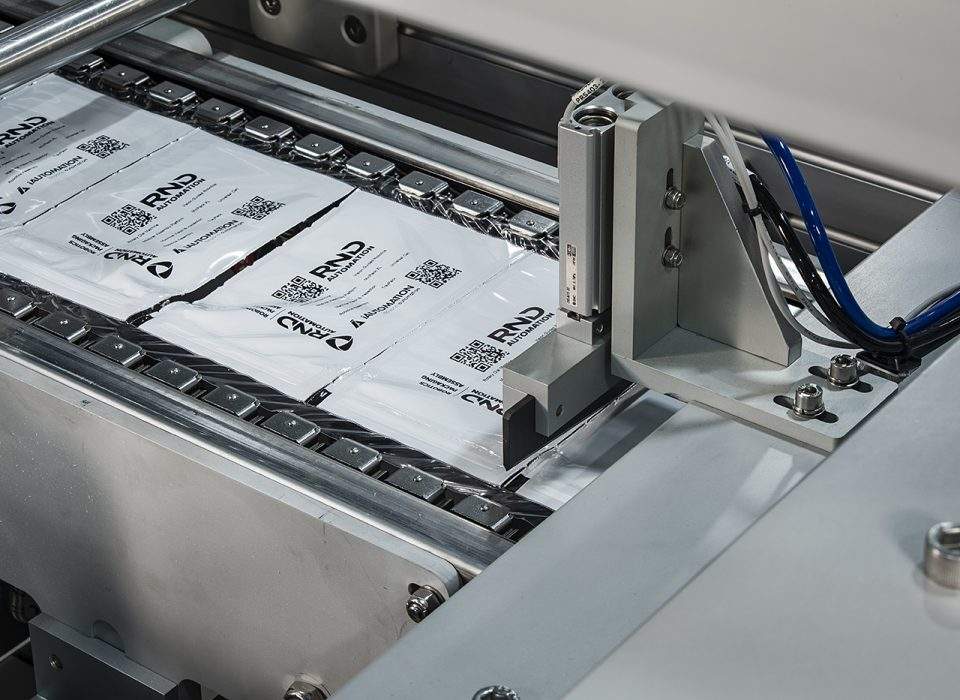

Gripper chains are widely used in various industries for Form, Fill and Vacuum Seal wrapping applications

--Food Industry: Packaging for Ham, sausage, cheese, bread, fish etc.
--Electronics Industry: Packaging for wires etc.
--Medical Industry: Packaging for injection syringe, pharmaceutical etc.
Related Products
For more types，Please click here！
We provide chain matching sprockets with various specifications, which can be customized according to your drawings
New Button Clamp (Type H) 10B1GC-H Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping
