OEM Heavy Cutting SP1016 Double Column Machining Center CNC Lathe With Semi-Closed Loop Control

Products Description

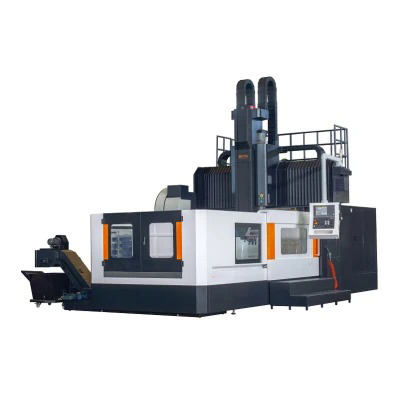

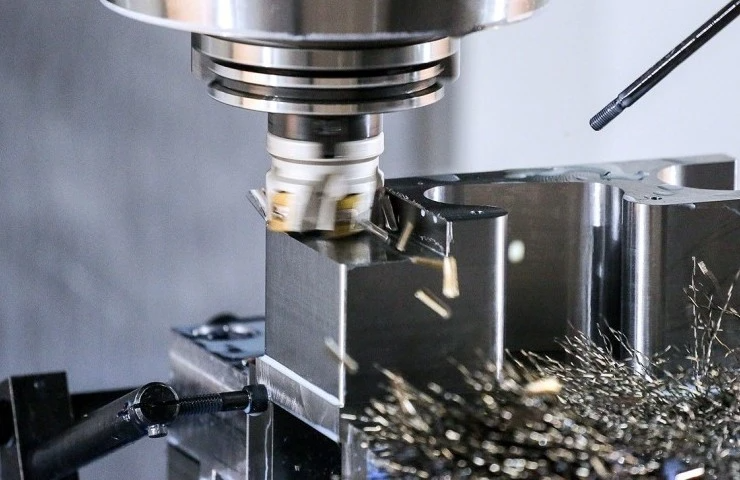

SP1016 Double Column Machining Center

The SP1016 Double Column Machining Center is a state-of-the-art machine tool designed for heavy-duty and high-precision machining operations. Advantages: 1. High Rigidity: The SP1016 features a robust double column structure, providing excellent rigidity and stability during machining, which reduces vibrations and ensures high-precision results. 2. Large Workpiece Capacity: With its spacious worktable and generous load capacity, the SP1016 can accommodate large and heavy workpieces, making it suitable for machining large components. 3. Versatility: This machining center offers multi-axis capabilities, allowing for complex machining tasks and accommodating a wide range of workpiece sizes and geometries. 4. High Productivity: Equipped with a powerful spindle and efficient tool changing system, the SP1016 enables fast and efficient production, reducing cycle times and maximizing productivity. 5. Advanced Control System: The machine incorporates a user-friendly control interface, facilitating easy programming, operation, and monitoring of machining processes. Applications: The SP1016 Double Column Machining Center finds applications in various industries, including: 1. Automotive: It is used for machining large engine blocks, transmission housings, chassis components, and other automotive parts. 2. Aerospace: The SP1016 is employed in the aerospace industry for machining structural components, aircraft frames, wing spars, and other large-scale aerospace parts. 3. Mold and Die Making: It is widely utilized for machining large molds and dies used in plastic injection molding, die casting, and other molding processes. 4. Heavy Machinery: The SP1016 is suitable for machining components of heavy machinery, such as construction equipment, industrial machinery, and energy-related equipment. In summary, the SP1016 Double Column Machining Center offers high rigidity, large workpiece capacity, versatility, and productivity. Its applications span across automotive, aerospace, mold and die making, and heavy machinery industries, providing efficient and precise machining solutions for large and complex workpieces.

Model		SP1016	SP1020	SP1325	SP1330	SP1525
Travel and processing range
X-axis travel	mm	1650	2050	2600	3100	2600
Y-axis travel	mm	1200	1200	1400	1400	1400
Z-axis travel	mm	600	600	160-960	160-960	160-960
Distance from spindle nose to worktable	mm	160-760	160-760	2	1	2
Distance from ground to workbench surface	mm	765	765	775	775	775
Distance between two columns	mm	1250	1250	1400	1400	1650
Staging
Workbench area (X-axis direction)	mm	1600	2000	2500	3000	2500
Workbench area (Y-axis direction)	mm	1000	1000	1300	1300	1500
Maximum load of workbench	kg	3000	3500	4000	5000	4000
Size and number of T-shaped grooves on the surface of the workbench (width * number of slots * spacing)	mm	227125	227125	227160	227160	229160
Feed System
Rapid displacement (X-axis)	mm/min	20000	20000	10000	10000	10000
Rapid displacement (Y-axis)	mm/min	20000	20000	10000	10000	10000
Rapid displacement (Z-axis)	mm/min	12000	12000	10000	10000	10000
Main spindle
Main spindle power (continuous/30 minutes)	kw	15/18.5	15/18.5	15/18.5	15/18.5	15/18.5
Maximum speed (vertical shaft)	rpm	7000	7000	6000	6000	6000
Spindle hole thrust	Nm	71.5	71.5	143	143	143
Spindle taper hole	#	50	50	50	50	50
Spindle cutting force	kgf	1800±10%	1800±10%	1800±10%	1800±10%	1800±10%
Main spindle bearing size	mm	7016	7016	7018	7018	7018

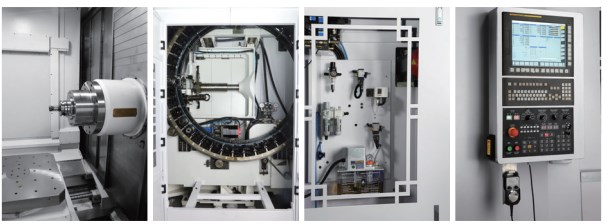

Machine Structure:

---X, Y, Z three-axis adopts ultra-wide guide rails, which have excellent rigidity, vibration absorption (suppressing vibration
generated when cutting tools) and damping (preventing vibration when the guide system is started or stopped)
---Suitable for machine tools with heavy cutting loading
---Y axes are supported by 4 guide rails, which has stronger carrying capacity. X and Y axis are linear guideway. Z axis is box /linear guideway.

Spindle :

Taiwan brand short nose BT50-190mm spindle, standard is belt drive 8000rpm.
15/18.5Kw large power motor with high torque 143Nm

Ultralight spindle headstock and Z axis with counter balance block

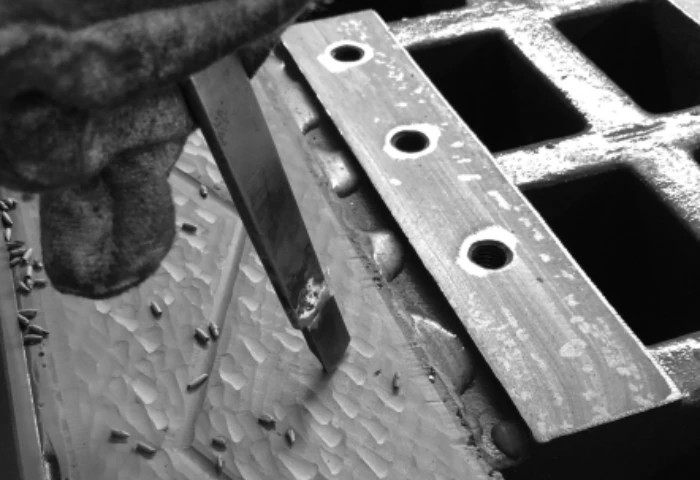

Manual Scrape :

Manual scraping is used on the main joint surface to ensure effective contact area

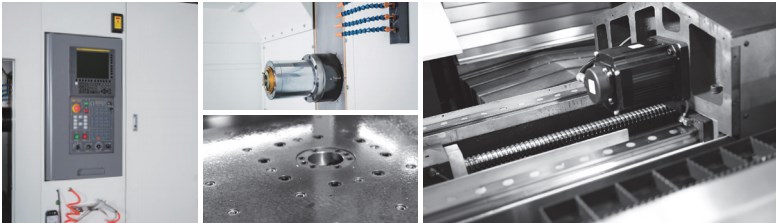

Axes Driving :

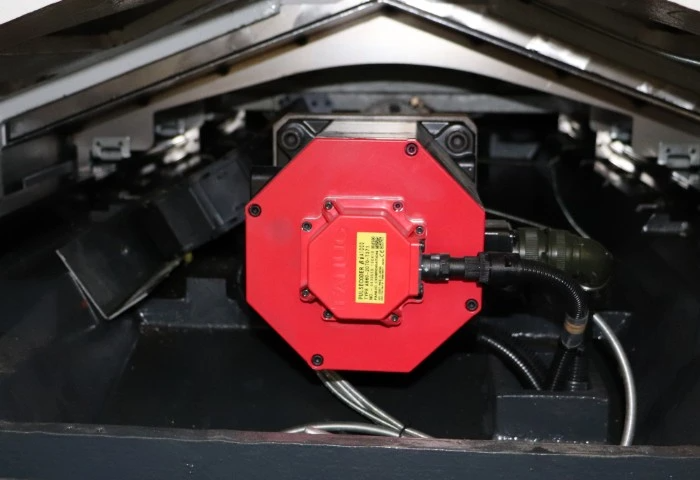

---The 3 axes servo motors are directly connected to the high-precision ball screw via a gapless elastic coupling to ensure transmission accuracy.
---All servo motors are equipped with absolute encoders to increase efficiency and reliability.
----The three axis screw is pre-stretched to eliminate the influence of screw temperature rise on machining accuracy

Application

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
