Product Description

OEM MJS3 Full-automatic Lathe Machining Center Roller Grinding Machine CNC Tap Chamfer Grinder

Products Description

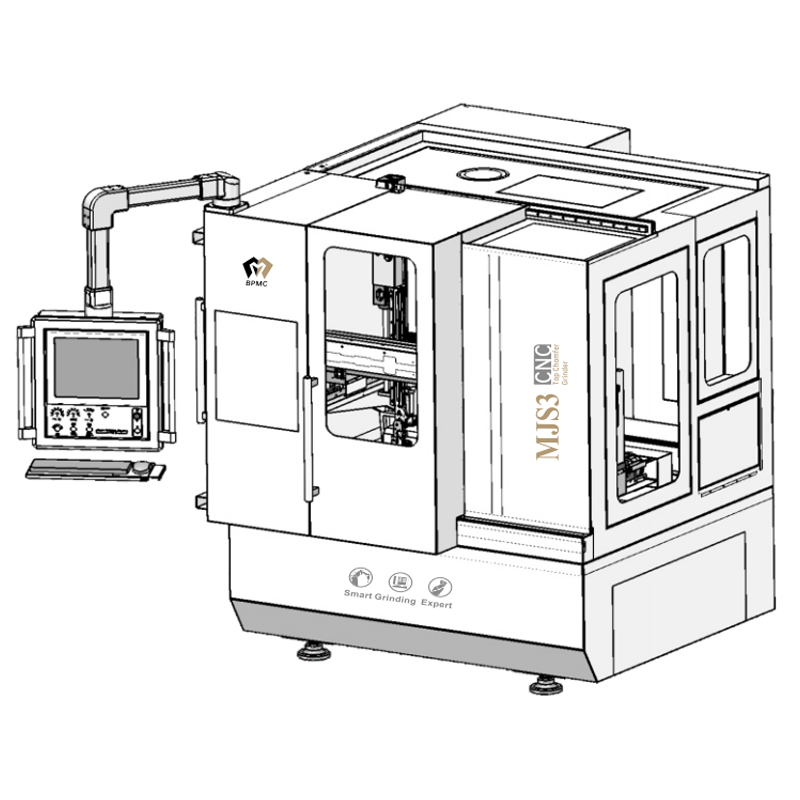

MJS3 Full-Automatic CNC Tap Chamfer Grinder

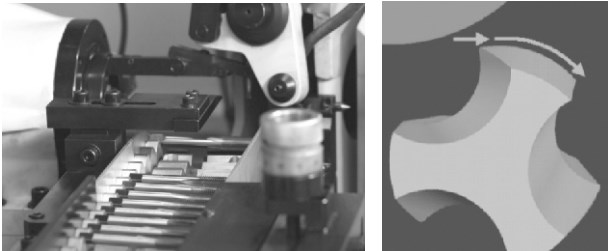

This full automatic CNC tap Chamfer grinder is applied folgrinding of M3-M20 tap's blade (shovel) on the top ofstraight fluteor helix flute.Our patented design for grinding chamfer, and automaticachanging Loader,make the long-time unmanned automatigrinding very easily realized.

Product Specification

Grinding Elec. Spindle			Linear Controlled Resolution	0.001mm
Single Spindle Taper Hole	1:10 internal Cone	Rotary Controlled Resolution	0.001°
Spindle Power	5kw	Controller	BPISYNTEC/FANUCISIEMENS
Travel			Robot Loader
X Axis	100mm	Shank Diameter of Work Piece	4-20mm
Y Axis	Rotate freely	Workpiece Max.Length	50-150mm
Z Axis	50mm	Connected Loading
Rotary Axis (C Axis)			380V/50Hz	10/15kg
Maximum Rotation	200RPM	Size
Standard Taper Hole	MT2#	Length x Width	1900X1950mm
TOOlS Ranige ( Grindatte Tool depends an is Type and Mach ning Requlsement )			Height	1900mm
Diameter	M3-M20	Weight
Length	150mm	Total Weight ( Depends on the Configuration ]	3500kg
Clamping Method	Special Tap square Positioning

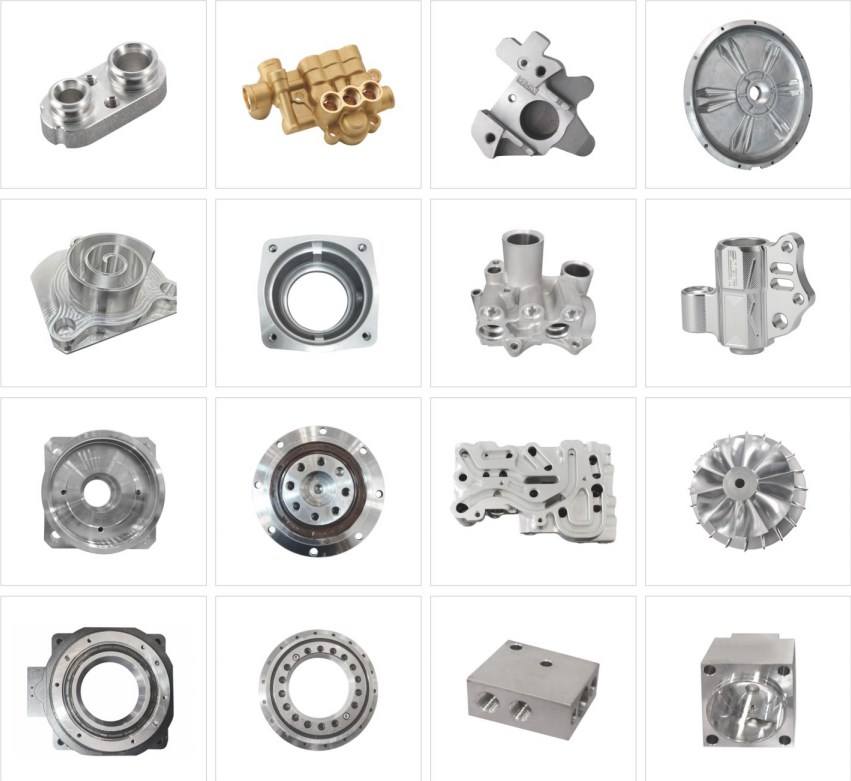

Samples Show

Applications

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
