OEM THG085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox

OEM THG085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary GearboxProducts DescriptionTHM085 Hollow Rotary ActuatorThe THM060 Hollow Rotary Actuator is a specialized electromechanical device designed for applications requiring rotationalmovement and space for cables, hose......

OEM THG085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox

Products Description
OEM THG085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox
THM085 Hollow Rotary Actuator
The THM060 Hollow Rotary Actuator is a specialized electromechanical device designed for applications requiring rotational
movement and space for cables, hoses, or other utilities to pass through its central axis. This actuator typically combines a
compact and robust design with high torque output and positional accuracy, allowing it to function effectively in confined spaces
and complex mechanical systems.
Specifications
THM085
Reduction ratio
30/40/50/60/70/80/100
Rated torque
55/50/60/55/50/45/40Nm
Adapted motor
200/400W AC Servo motor
Emergency stop torque
3x rated torque
Rated input speed
5000rpm
Maximum input speed
10000rpm
Return gap
≤1arcmin
Torsional rigidity
7Mn/arcmin
Permissible radial force
1530N
Permissible axial force
765N
Service life
20000hr (Continuous operation reduces service life by 50%)
Transmission efficiency
97%
Working temperature
-10-+90℃
Protection level
IP65
Lubrication
synthetic lubricating oil and grease
Noise
≤58dB(A)
Moment of inertia
0.13kg.cm²
Weight
2.5kg
OEM THG085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox
OEM THG085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox

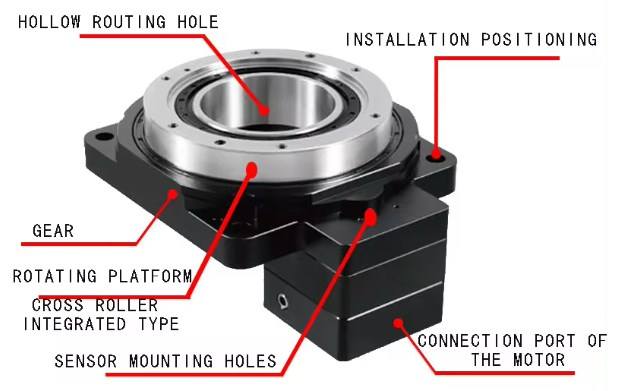

Basic Structure of the Hollow Rotary Actuator
1.Cross roller bearings: provide high stiffness and precise rotational support.
2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.
3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.
4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.
5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.
Applications
OEM THG085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox
OEM THG085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox
