Product Description

OEM THR130 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox

Products Description

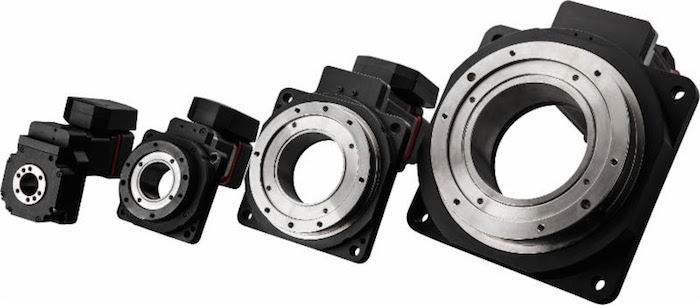

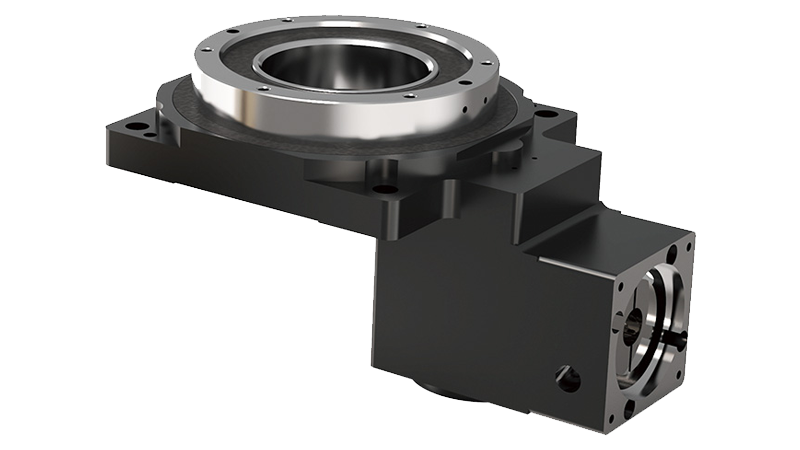

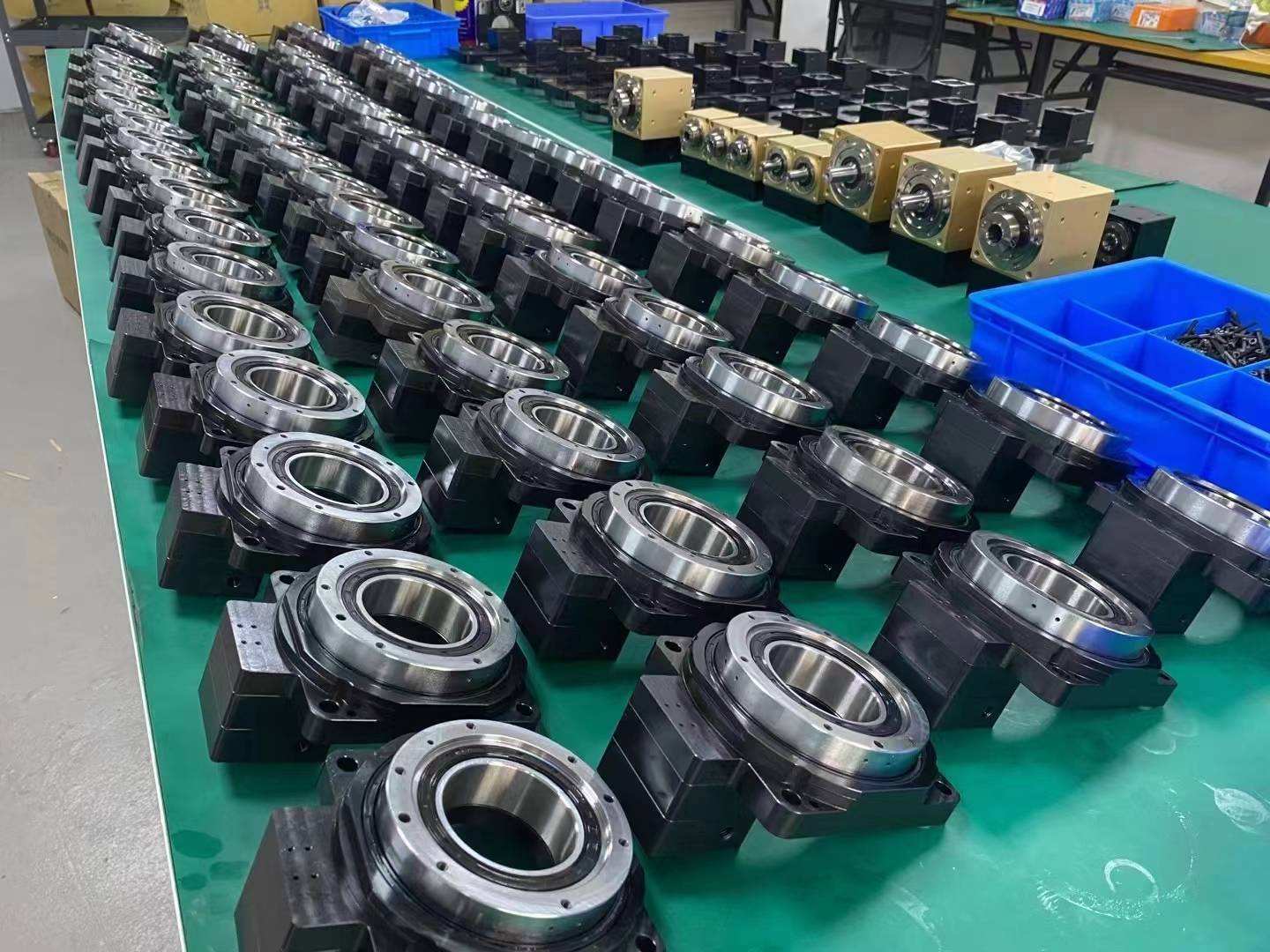

THR130 Hollow Rotary Actuator

At the heart of many complex machines lies the Hollow Rotary Actuator, whose primary attribute is its hollow shaft, permitting easy integration of electrical connections or fluid lines, and complemented by traits like precise angular control, durability, and a broad range of customizable specifications.

Specifications	THR130
Reduction ratio	10/20/30/50
Rated torque	24Nm
Adapted motor	200/400W AC Servo motor
Emergency stop torque	2.5x rated torque
Rated input speed	1500rpm
Maximum input speed	2000rpm
Return gap	≤1arcmin
Torsional rigidity
Permissible radial force	500N
Permissible axial force	200N
Service life	20000hr （Continuous operation reduces service life by 50%)
Transmission efficiency	95%
Working temperature	-10-+90℃
Protection level	IP65
Lubrication	synthetic lubricating oil and grease
Noise	≤65dB(A)
Moment of inertia	0.07kg.cm²
Weight	3.9kg

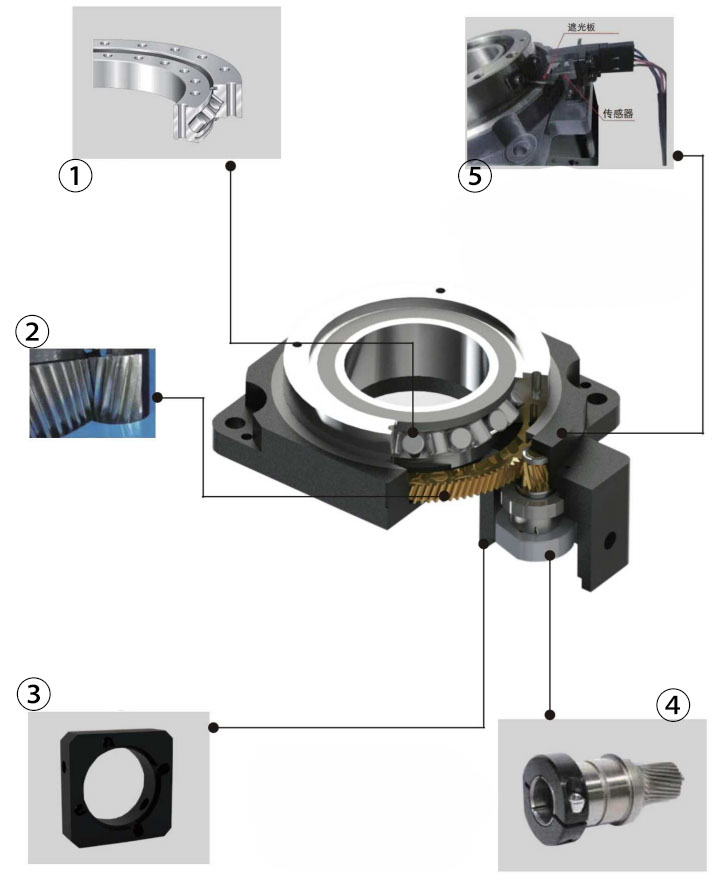

Basic Structure of the Hollow Rotary Actuator

1.Cross roller bearings: provide high stiffness and precise rotational support.

2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.

3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.

4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.

5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.

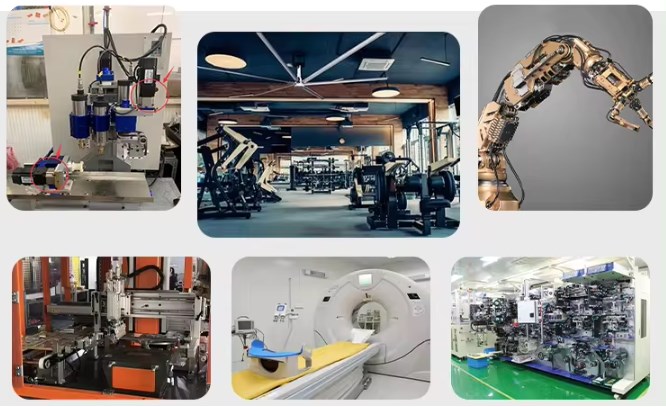

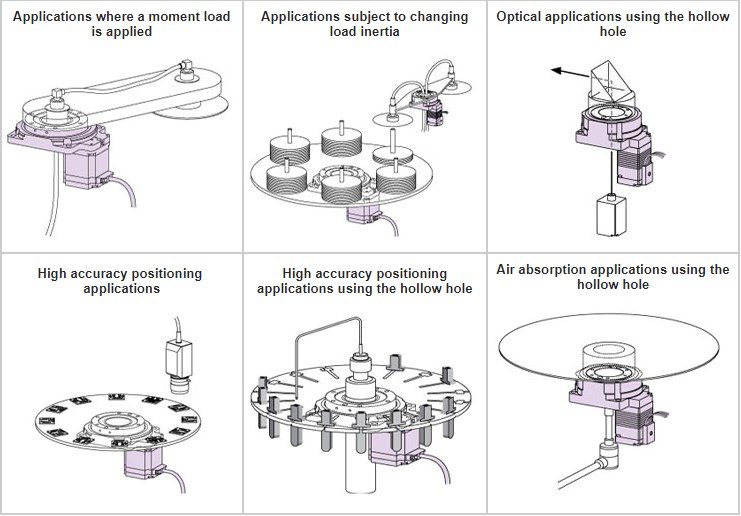

Applications
