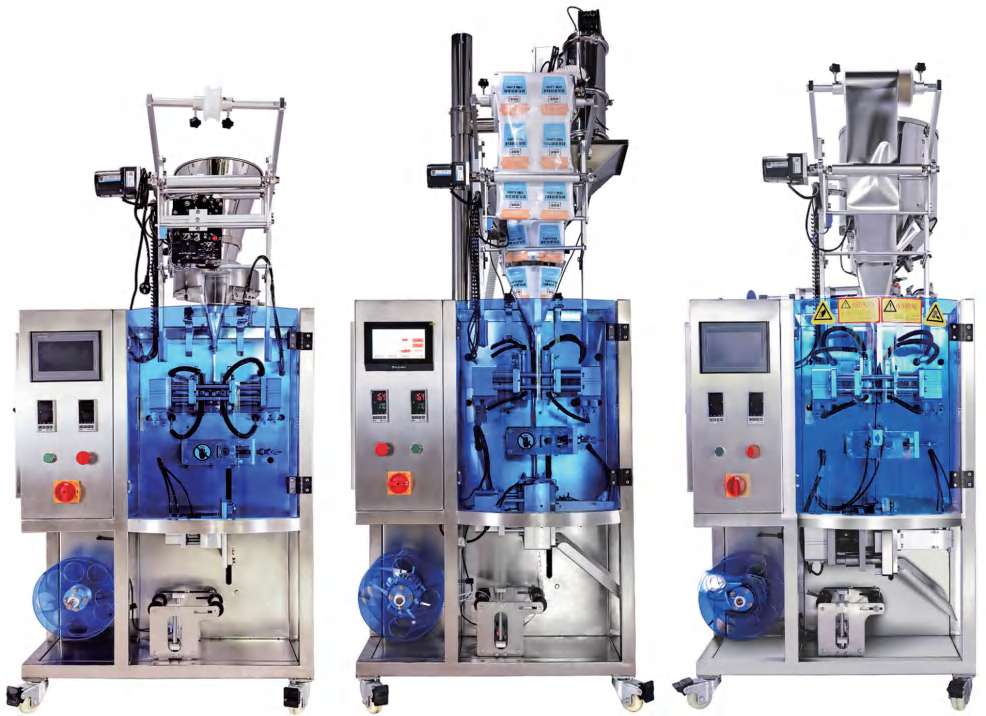

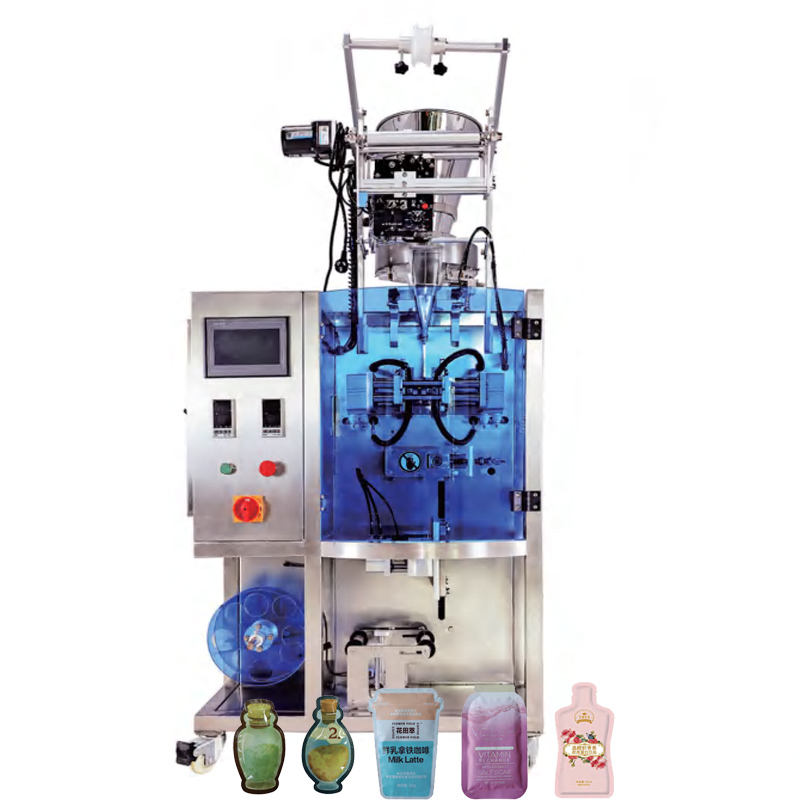

PL-220QK PL-220QF PL-220QY Full Punch Irregular Bag Granule/Powder/Liquid Seal Packing Machine

PL-220QK PL-220QF PL-220QY Full Punch Irregular Bag Granule/Powder/Liquid Seal Packing MachineProducts DescriptionFull Punch Irregular Bag Granule Seal Packing MachineThis This machine is suitable for pharmaceutical、daily chemical.pesticide.food.health care products andother industries such as: seas......

Send Inquiry

Product Description

PL-220QK PL-220QF PL-220QY Full Punch Irregular Bag Granule/Powder/Liquid Seal Packing Machine

Products Description

Full Punch Irregular Bag Granule Seal Packing Machine

This This machine is suitable for pharmaceutical、daily chemical.pesticide.food.health care products andother industries such as: seasoning.rainbow candy.white sugar.popping candy.chocolate beans.seaweed.fruit candy.ablets etc.

Full Punch Irregular Bag Powder Seal Packing Machine

This machine is suitable for medicine.daily chemical.pesticide.food.health care products and other industries,such as:
freeze-dried powder.bath salt.medicine powder.seasoning powder.milk powder.milk tea powder soybean mikpowder nutritional meal replacement powder coffee powder solid drinks.

Full Punch Irregular Bag Liquid Seal Packing Machine

This machine is suitable for medicine.daily chemical.pesticide.food.health care products and other industries, such
as.sauce.honey.fruit juice.gel.lotion.cream.enzyme.oral liquid.sleeping mask etc

Features

1.It can automatically complete allthe work of fling.measuring bag making、sealing、punching、cutting、counting、hot-pressing batch numberetc. during the packaging process

2.The color code tracking system ensures fast and stable bag puling, consistent bag lenath and consistent pattern 3.Intelligent control system, Chinese and English LED display. Only need to set the parameters to precisely control the operation of the system

4.PlD temperature independent control system; Taiwan AirTAc pneumatic components

5.Bags of various shapes can be realized by changing the cutting tool

6.With a waste recycling device, four bag pull wheels assist in puling the bag, making the bag puling more stable, the bag more beautiful,and the bag cutting is stable and reliable without bag jamming

Basic Parameters

Model	PL-220QK	PL-220QF	PL-220QY
Measuring range	1-30g	1-30g	1-30ml
Bag size	L40~170mm;W20~110mm	L40~170mm;W20~110mm	L40~170mm;W20~110mm
Dose range	Measuring cup	Screw Metering	Magnetic pump, piston pump, rotor pump, gear pump
Voltage	220V 50Hz 2.8KW
Controlsystem	PLC controlling system
Speed	30-50bag/min
Bagtype	Full Punch Four Side Seal
Dimension	L930W750H1700 mm	L930W750H1900 mm	L930W750H1900 mm
Weigh	350KG	400KG	350KG
application	Suitable for composite packaging film. Divided by material: aluminum-plastic composite packaging film and plastic composite packaging film.

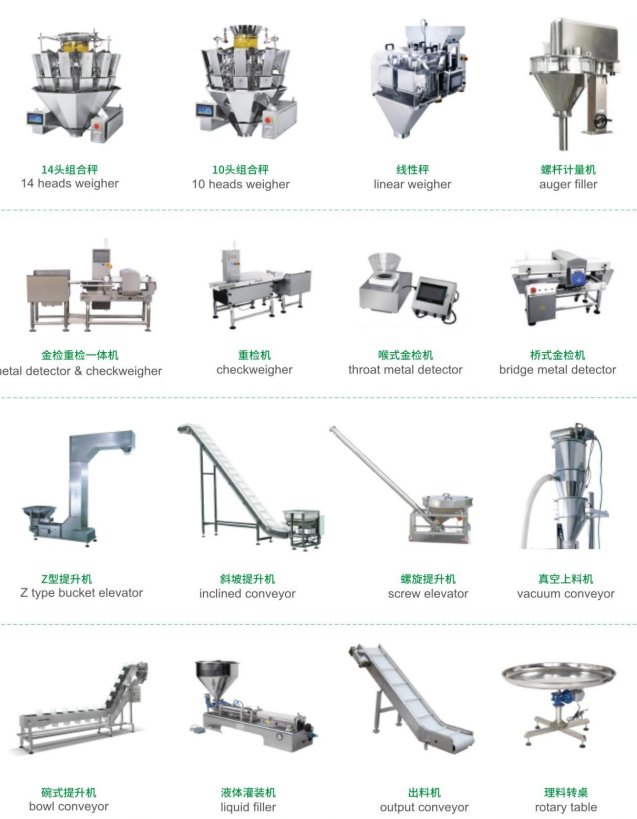

Products List
