Product Description

PMX5 CNC Machine Tool Lathe Machining Center Cylindrical Polishing Grinder

Products Description

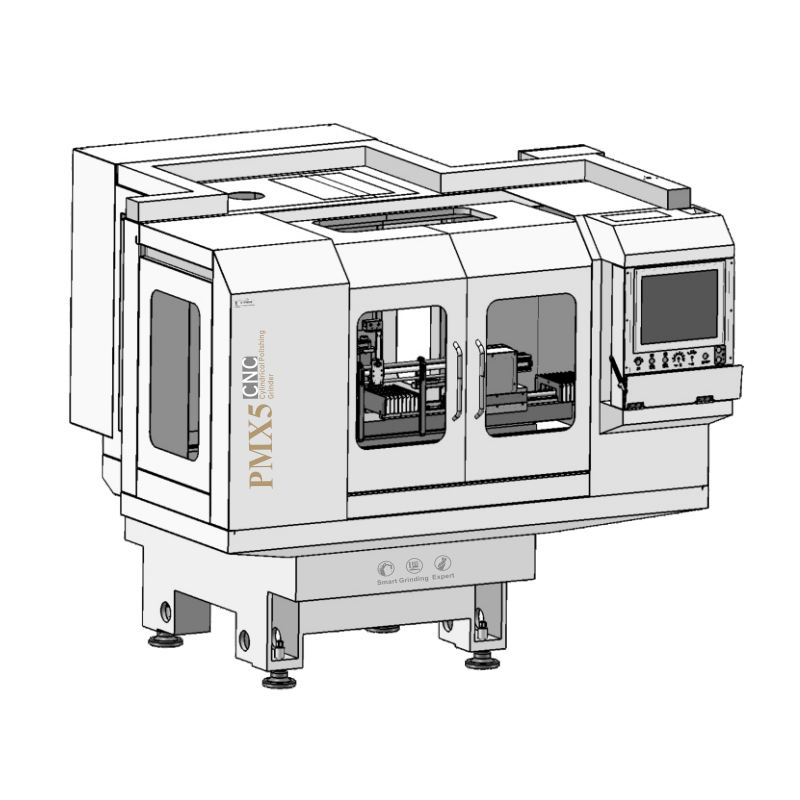

PMX5 CNC Cylindrical Polishing Grinder

1.Our PMX5 CNC cylindrical polishing grinder is designedand produced according to Germany grinding conceptand technology . It is used for fine polishing of highly precise products such as shaft parts

2.Using our intelligent grinding software , it takes a veryshort time to finish the polishing programing for a varietyof standard cylinders

3.The operator can generate an efficient grindingprogram very quickly , only has to modify few parameterswith help of our programming guild

Product Specification

Polishing Grinding unit			Controller	BP/SYNTEC/FANUC/SIEMENS

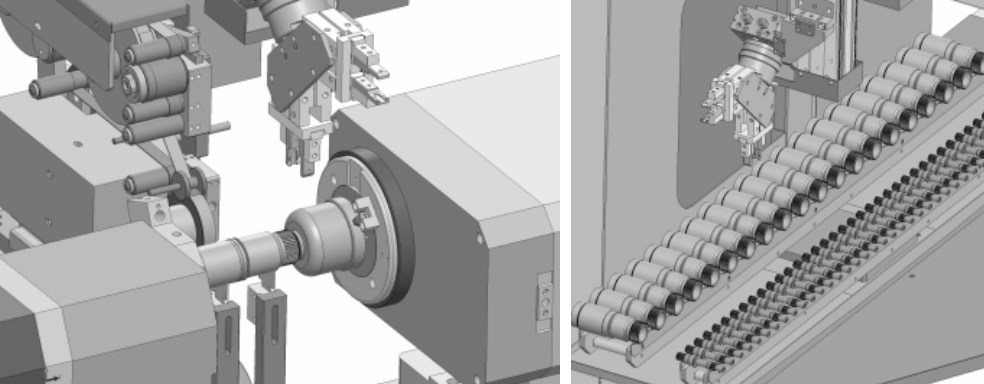

Servo controller	feedbelt	Robot loader
Servo Controlled vibration Frequency	0-1500rpm	Shank diameter of work piece	3-45mm
Movement Distance	30mm	Max length of work piece	150mm
Belt Breadth	12/25/32mm	Connected Loading
Travel		380v/50HZ	ca 6 kw
X axis	250mm	Size
Y axis	120mm	Length * Width	2100*200mm
Rotary axis （A Axis）		Height	2000mm
Top tip	Rotary more 4#	Machine Weight
Standard Center Height	180mm	Total Weight	ca 3500kg
Max Rotation Speed	1500rpm
Tool Range(Grindable Tool depends on its Type and Machining)
Diamer	3-60mm

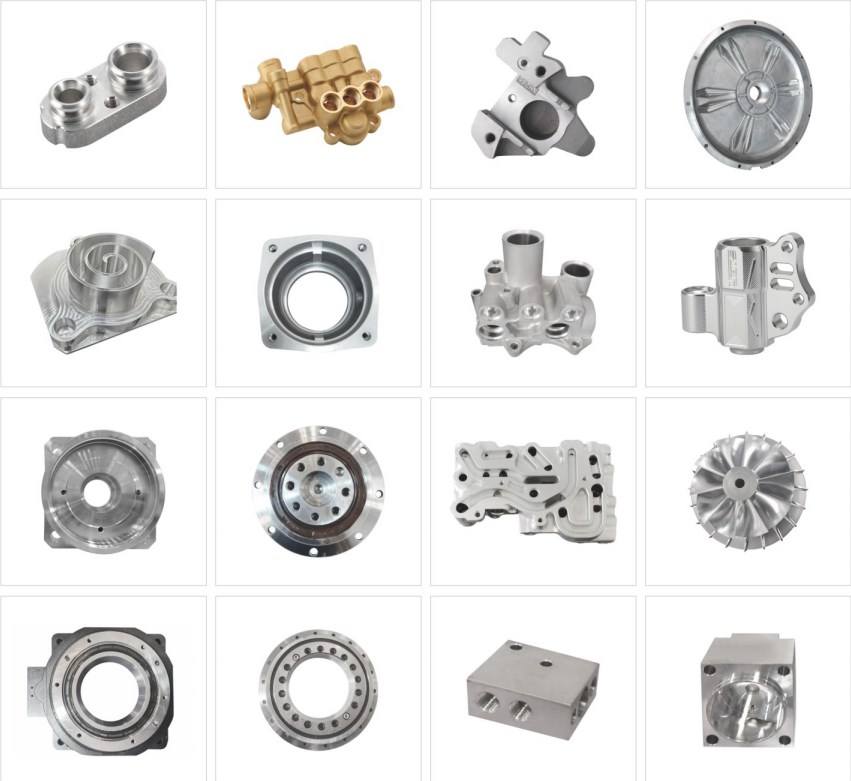

Samples Show

Applications

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
