Product Description

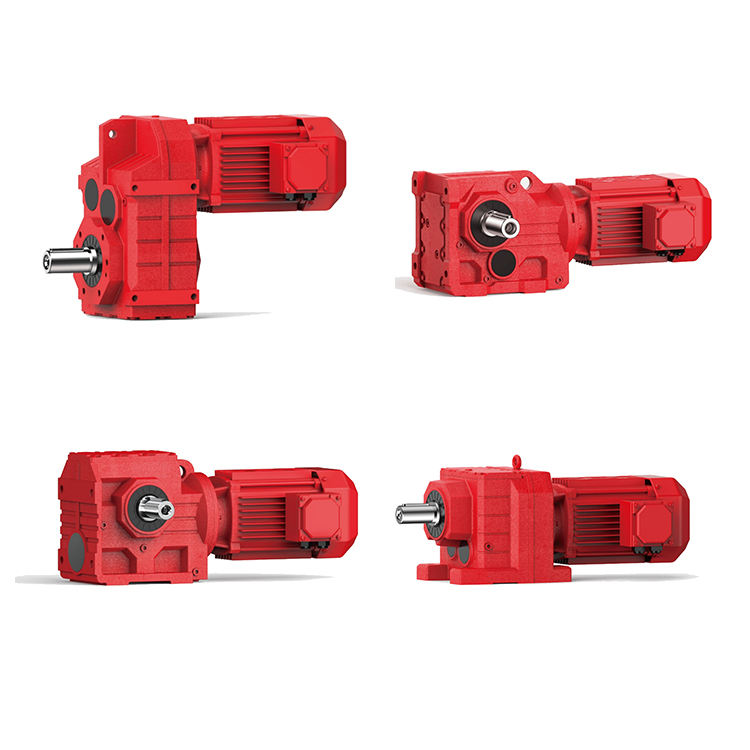

R F K S Series Parallel Shaft Inline Gear Box Speed Reducer Reducer Worm Bevel Helical Geared Motor Gearbox

S series helical gear worm reducer

Features of products

1. The S series helical gear worm gear motor has a high technological content. It has a helical gear and a worm gear combined with an integrated transmission to improve the torque and efficiency of the machine. This series of products have complete specifications, wide speed range, good versatility, adapt to various installation methods, safe and reliable performance and long life, and have implemented international standards.

2. The uneven surface of the body has the effect of heat dissipation, strong vibration absorption, low temperature rise and low noise.

3. The machine has good sealing performance and strong adaptability to the working environment.

4. The machine has high transmission accuracy, and is especially suitable for working in occasions with frequent starting. It can be connected to various types of reducers and equipped with various types of motor drives, and can be installed in the 90-degree transmission operating position.

5. The key components of the motor are made of highly wear-resistant materials and undergo special heat treatment. They have the characteristics of high machining accuracy, stable transmission, small size, large carrying capacity, and long life.

6. The reducer can be equipped with various types of motors, forming a mechatronics, which fully guarantees the quality characteristics of the product.

Gearing Arrangement	Helical-worm
Output Torque	10–4484 Nm
Input Speed	Reference details page
Output Speed	0.21-12 r/min
Color	Customizable
Certificate	ISO9001
Structure	SF
Input power rating	0.55-7.5
Ratio	9.96-241.09
Maximum torque	1270
Input Configurations	Equipped with Electric Motors Solid Shaft Input IEC-normalized Motor Flange
Applicable Motors	Single Phase AC Motor, Three Phase AC Motor Brake Motors Inverter Motors Multi-speed Motors Explosion-proof Motor Roller Motor
Output Configurations	Solid Shaft Output Hollow Shaft Output
nstallation	Foot-mounted B5 Flange-mounted B14 Flange-mounted Shaft-mounted
Lubrication	Oil-bath and Splash Lubrication

Installation Method

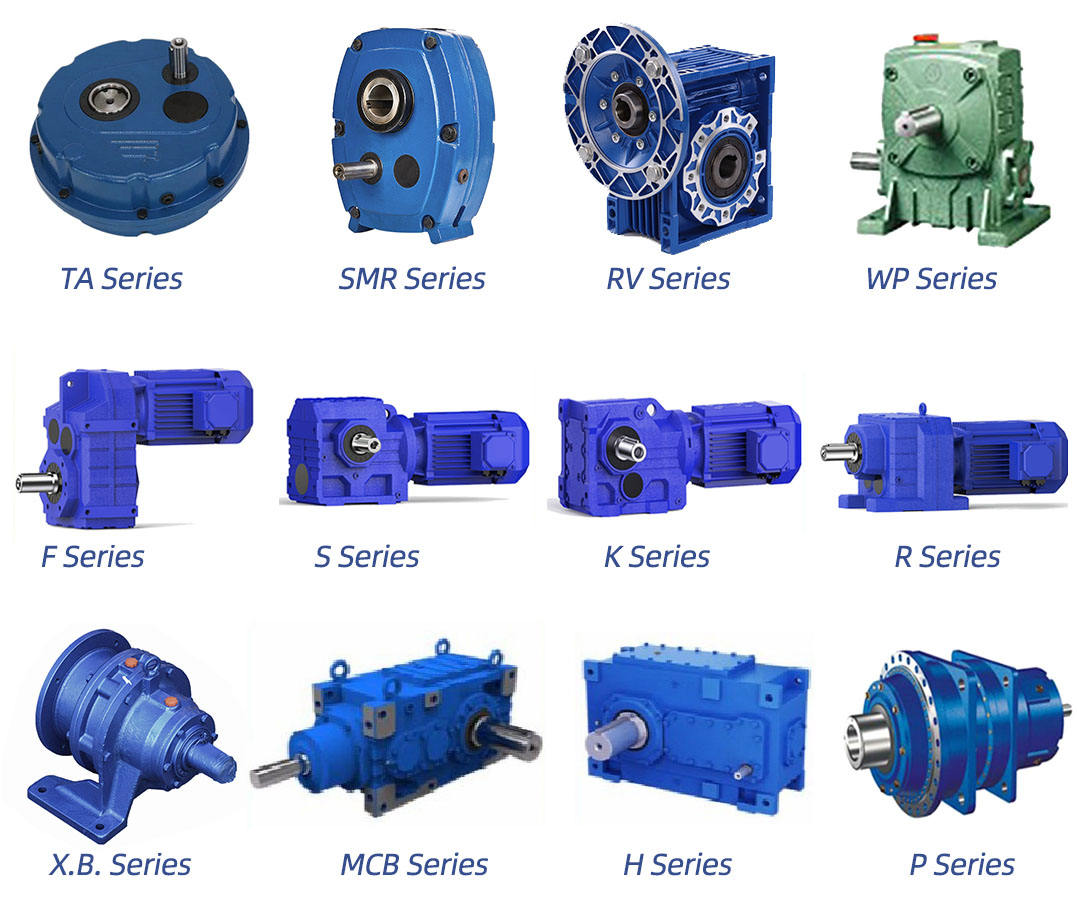

For more models, please contact us！

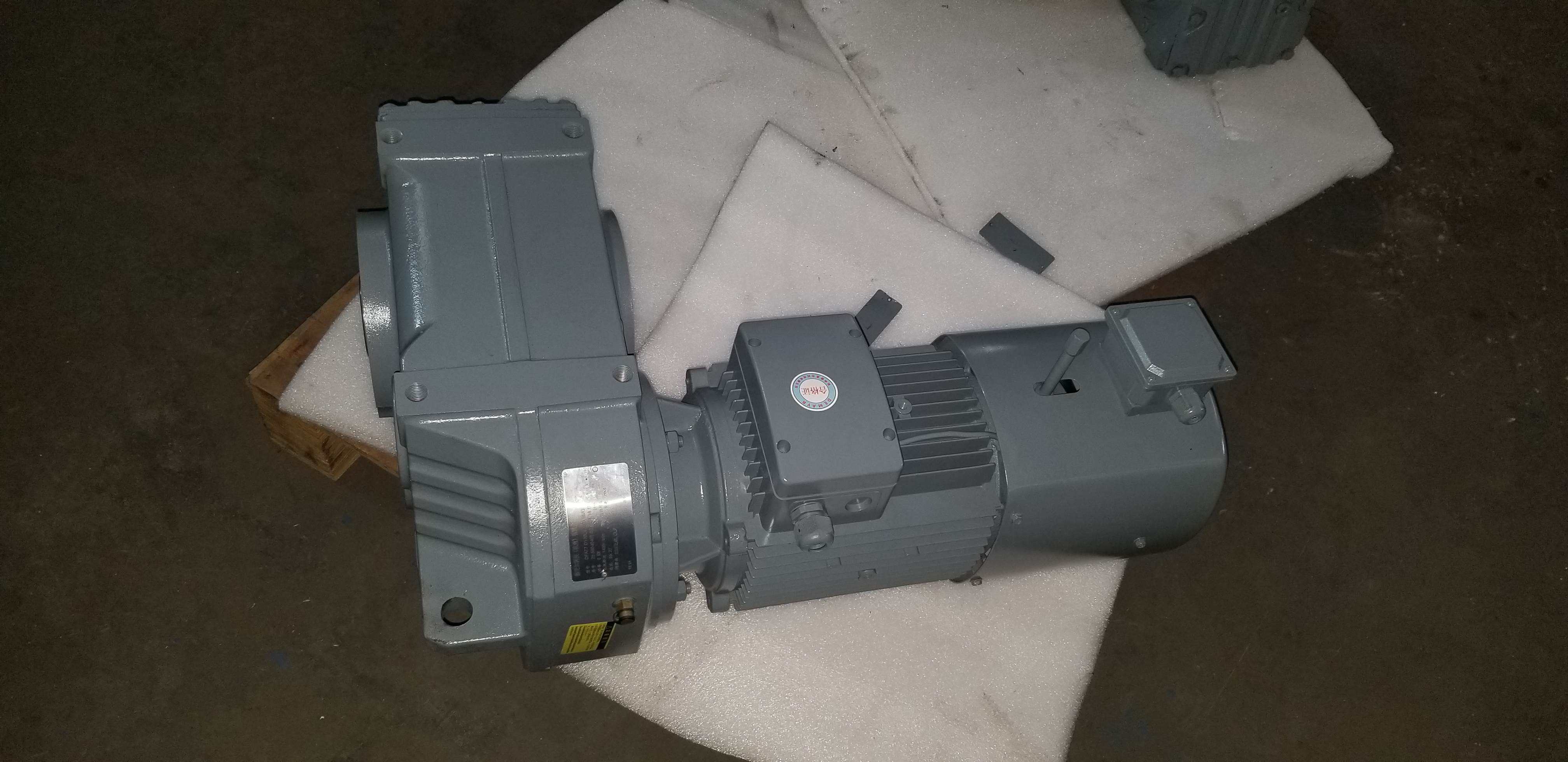

F helical gear reducer

◆ Parallel output, compact structure, large transmission torque, stable operation, low noise and long life.

◆ Installation method: base installation, flange installation, torque arm installation.

◆ Reduction ratio: basic type two level 4.3-25.3, three level 28.2-273, combined to 18509.

◆ The rotation direction of the input and output of the basic two-stage is the same, and the three-stage is opposite; please consult when combining.

◆ Output mode: hollow shaft output or solid shaft output.

◆ Average efficiency: Level 2 96%, Level 3 94%, F/CR average efficiency 85%.

K helical bevel gear reducer

◆ Vertical output, compact structure, hard tooth surface transmission torque, high-precision gears ensure stable work, low noise
and long life.

◆ Installation method: base installation, flange installation, torque arm installation, small flange installation.
◆ Input mode: motor direct connection, motor belt connection or input shaft, connection flange input.

◆ Output mode: hollow shaft output or solid shaft output, the average efficiency is 94%.

◆ Reduction ratio: basic type 8.1-191, combined to 13459.

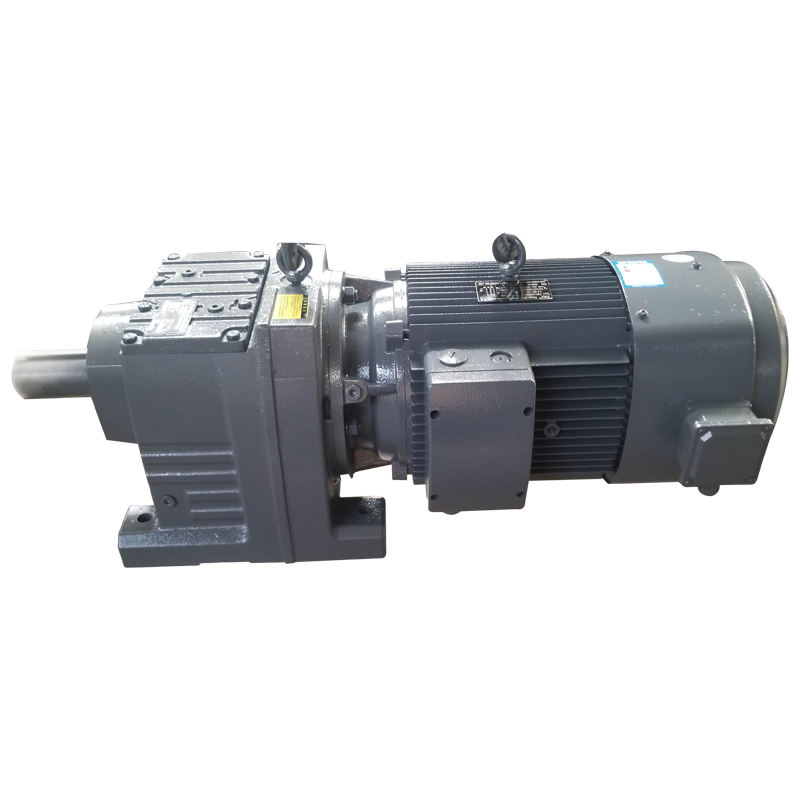

R helical gear reducer

◆Small bias output, compact structure, maximum use of cabinet space, the second and third levels are in the same cabinet. ◆Using an integral cast box, the box structure has good rigidity, which is easy to improve the strength of the shaft and the life of the
bearing.

◆Installation method: pedestal installation, flanges with large and small flanges are easy to choose.

◆Solid shaft output, the average efficiency is 96% in the second stage, 94% in the third stage, and 85% in CR/CR. The CRM series specially designed for mixing can carry large axial and radial forces.
