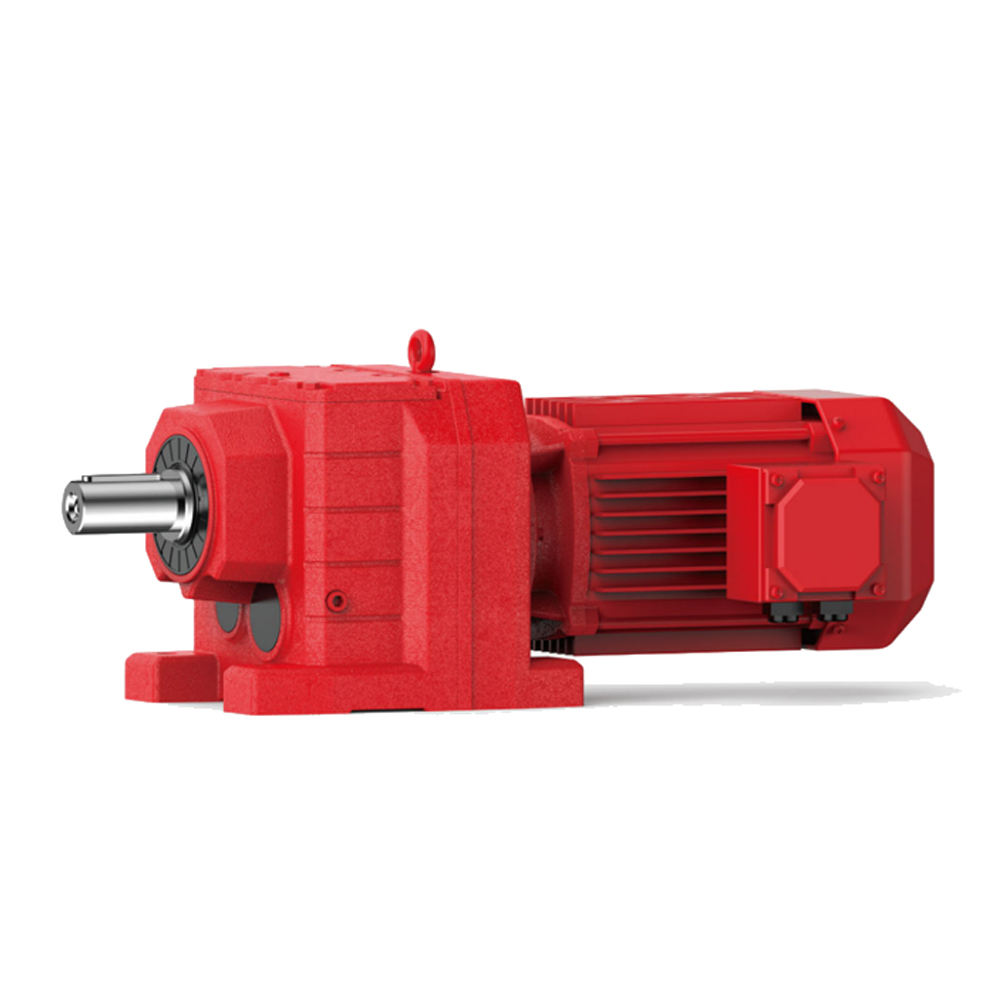

R67 R77 R87 series hard surface bevel reducer helical gearbox reduction gear box power transmission motor reducer

Model:

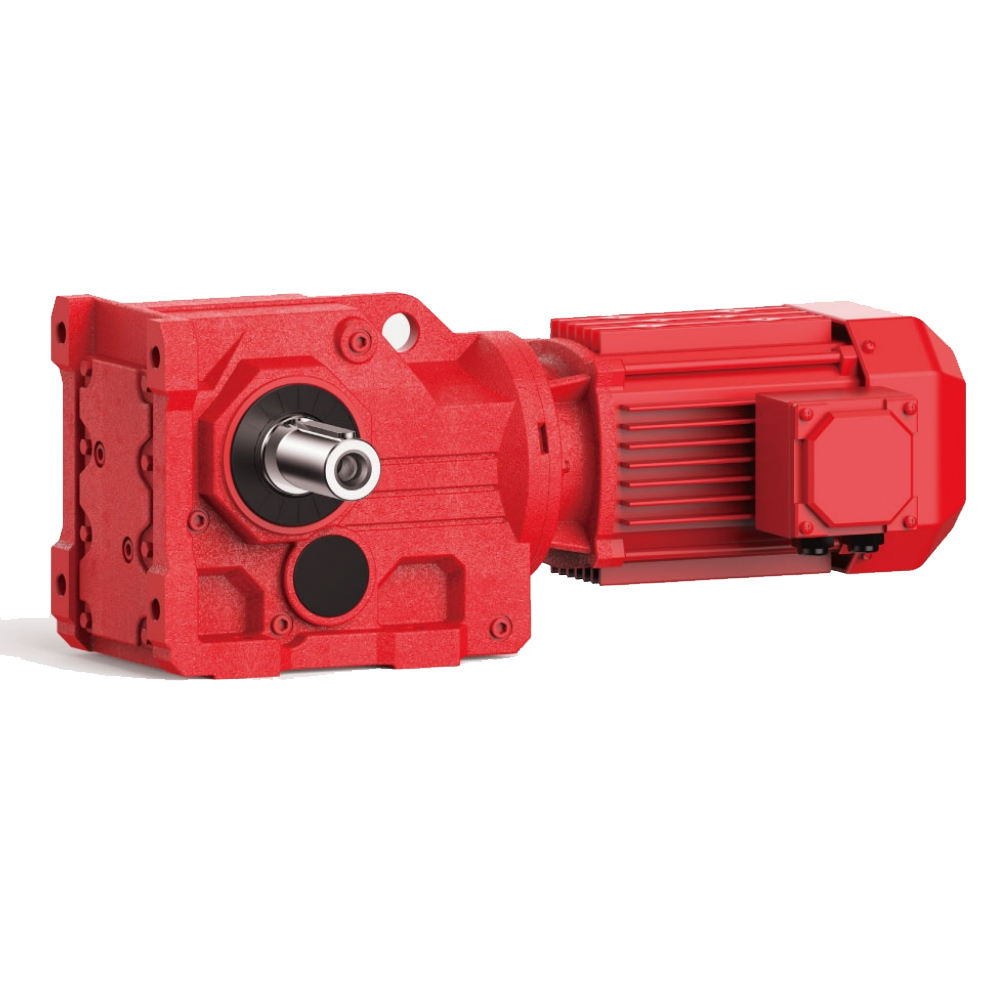

K Series - Foot-mounted, solid shaft output
KAB Series - Foot-mounted, hollow shaft output
KA Series – Keyed hollow shaft output
KF Series – B5 Flange-mounted, solid shaft output
KAF Series – B5 Flange-mounted, hollow shaft output
KAZ Series – B14 Flange-mounted, hollow shaft output
KAT Series – Hollow shaft output, torque arm
KH, KHB, KHF, KHZ Series – Hollow shaft output, shrink disk
KV, KVB, KVF, KVZ Series – Hollow shaft output, splined hollow shaft
K(KA, KF, KAF, KAB, KAZ)S Series – Solid shaft input

Housing

Cast Iron

Input power

0.12-200kw

Output torque

10-61900N.m

Output speed

0.08-261rpm

Bearing

C&U Bearing,NSK,SKF or on request

Ratio

5.36~178.37

Installation Form

Foot, Flange, Shaft Mounted

Seal

SKF,CTY,CFW or on request

Gears

Helical-bevel Gears

Input Configurations

Equipped with Electric Motors
Solid Shaft Input
IEC-normalized Motor Flange

Applicable Motors

Single Phase AC Motor, Three Phase AC Motor
Brake Motors
Inverter Motors
Multi-speed Motors
Explosion-proof Motor
Roller Motor

Output Configurations

Solid Shaft Output
Hollow Shaft Output

nstallation

Foot-mounted
B5 Flange-mounted
B14 Flange-mounted
Shaft-mounted

Lubrication

Oil-bath and Splash Lubrication
