Product Description

Roll up and Down Film Rotary Bottom Paper Packaging Machine for Biscuits Snacks Bulk Items Packaging

Products Description

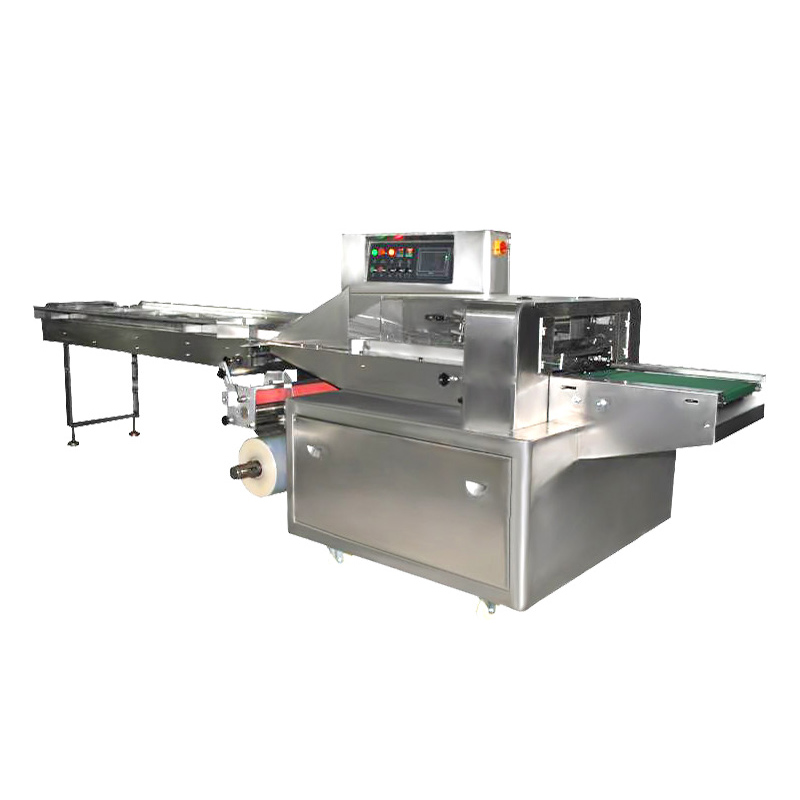

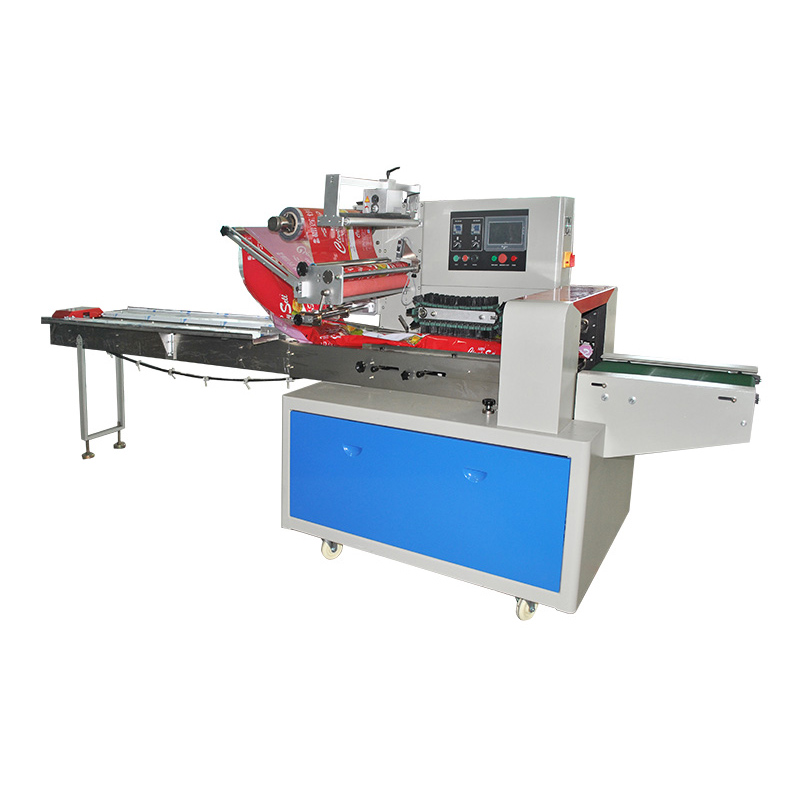

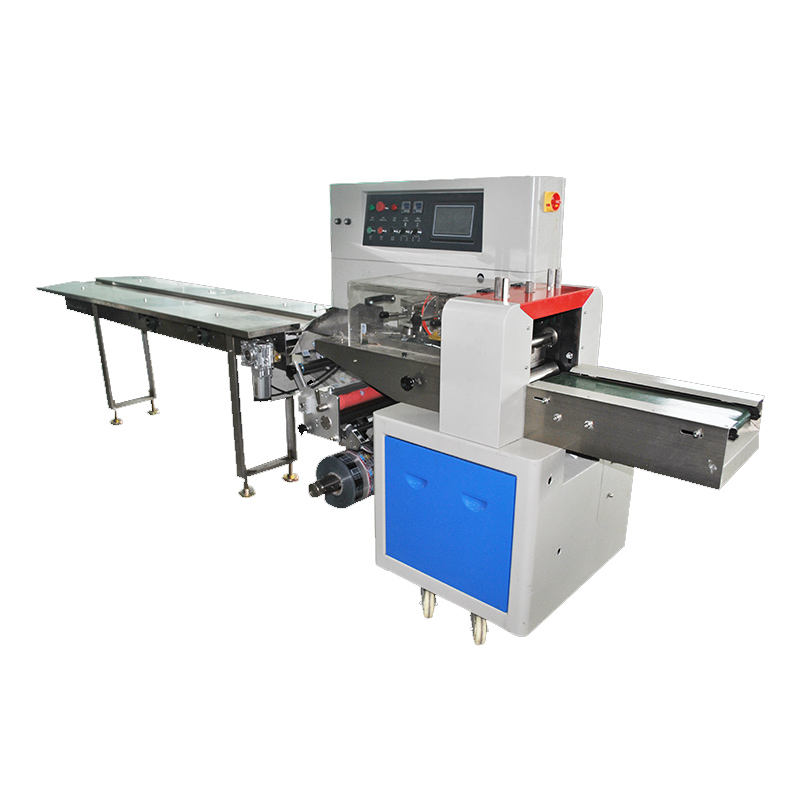

Roll Up and Down Film Rotary Bottom Paper Packaging Machine

Characteristic Main functions and features of the machine

1. Dual frequency converter control, bag length is set and cut immediately, no need to adjust the empty run, one-step to save time and film.

2. Human-machine interface, parameter setting is convenient and fast.

3. Fault self-diagnosis function, fault display is clear at a glance.

4. High-sensitivity photoelectric eye color mark tracking, digital input sealing and cutting position, making the sealing and
cutting position more accurate.

5. Temperature independent PID control, better suitable for various packaging materials.

6. Positioning stop function, no sticking knife, no waste of film.

7. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.

8. All controls are implemented by software, which is convenient for function adjustment and technology upgrade, and never lag behind

Basic Parameters

Model	SN-250X	SN-350X	SN-450X	SN-600X	SN-700X
Membrane width	250mm	350mm	450mm	600mm	700mm
Bag length	65-190mm or 100-300mm	65-190mm or 100-400 mm	100-450mm	120-500mm	120-500mm
Bag width	30-110mm	50-160mm	50-180mm	100-280mm	100-330mm
Maximum product height	max.45mm	Max.65mm	max.80mm	max.80mm	max.80mm
Packaging speed	40-230bags/min	30-300bags/min	30-150bags/min	30-150bags/min	30-150bags/min
Power Supply	220V 50/60HZ 2.4KW	220V 50/60HZ 2.8KW	220V 50/60HZ 2.8KW	220V 50/60HZ 2.8KW	220V 50/60HZ 2.8KW
Mechanical dimensions	3920x670x1320	4020x720x1320	4020x820x1450	4020x920x1460	4020x980x1480
Mechanical weight	500kg	550kg	580kg	610kg	680kg
