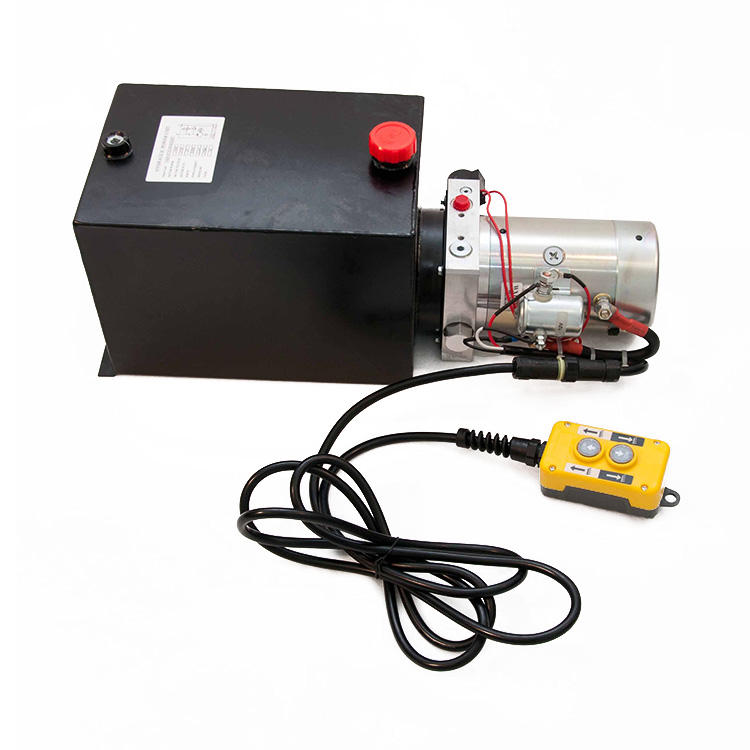

Single Acting 12 Volt DC Electro Hydraulic Power Unit

Single Acting Tipper Trailer Power Unit.

Equipped with a high pressure gear pump, a DC motor, a multi-functional manifold, valves and tank, this power unit has a power up - gravity down circuit. Start the motor to lift the machine and the lowering movement is activated by the solenoid valve with the lowering speed controlled by the pressure compensated flow control vale. It is widely used in tipper trailer, dump trailer, fork lift and scissor lift applications.

Specifications

Tank: Steel, 3 gallon horizontal or 12 Liters

All ports are #6 SAE O-ring boss

Motor: 2.0 hp, 12v, 2600 rpm, S3 Duty

Pressure = 2500 psi (17.5 Mpa)

Gear Pump: .128 Cu In/rev

System Relief valve: 2500 PSI

Solenoid Release Valve: 12VDC, NC

These units are high quality and are used in many OEM applications. We have direct factory support for any questions or parts.

Remote: 2 Button, 3 lines, 10 feet-1/2

21" total length

8-1/2 height (if you include the fill port then total height is 9-1/2")

Hydraulic Fluid:

ISO viscosity grades 22 to 46 are recommended. Anti wear, antifoaming & rust inhibitor additives are recommended.

For colder climates ATF can be used

In extreme cases Mil-5606 fluid can be used

Do not use synthetic, biodegradable or water base hydraulic fluids. In most cases these fluids are not compatible with Buna O-rings. Please check fluid compatibility before use.

Tractor hydraulic fluid is not recommended. Most tractor hydraulic fluid has to high of a viscosity & may not be compatible with Buna O-rings.

Recommended Fluid Viscosity Specifications:

ISO Viscosity Grades 22-46

cSt @ 40°C 22-46

cSt @ 100°C 4-8

Recommended Fluid Maintenance:

Change hydraulic fluid after initial 100 hours of operation

Change hydraulic fluid every 3000 hours or 2 years there after

Check hydraulic fluid level regularly before operation

Fit-up dimensions are: 7-3/4"wide x 8-1/2"tall x 12-1/2" long (fill port is 1" tall on tank)

Grinding Workshop

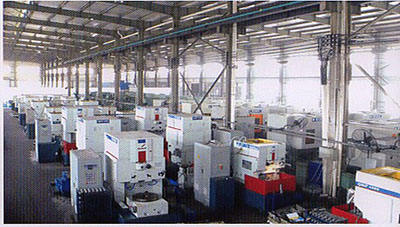

CNC Teeth Machine

CNC Lathe Workshop

Figuring Center

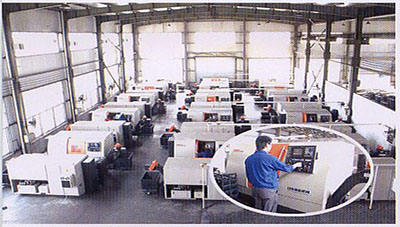

CNC Workshop

Heat Treatment Machine

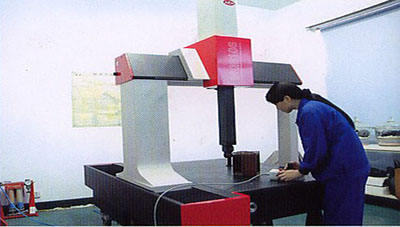

3D Measurement Machinery

Gear Teeth Profile Test Machines

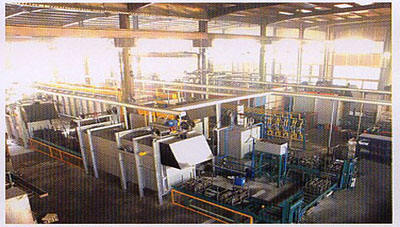

Heat Treatment Workshop
