SJG Series Centrifugal Fan Industrial Diagonal Flow Fan

SJG Series Centrifugal Fan Industrial Diagonal Flow FanWarning/DisclaimerThis product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View moreProduct DescriptionSJG Series Industrial Diagonal flow fanhe specific rotation value of SJG series obl......

Send Inquiry

Product Description

SJG Series Centrifugal Fan Industrial Diagonal Flow Fan

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more

Product Description

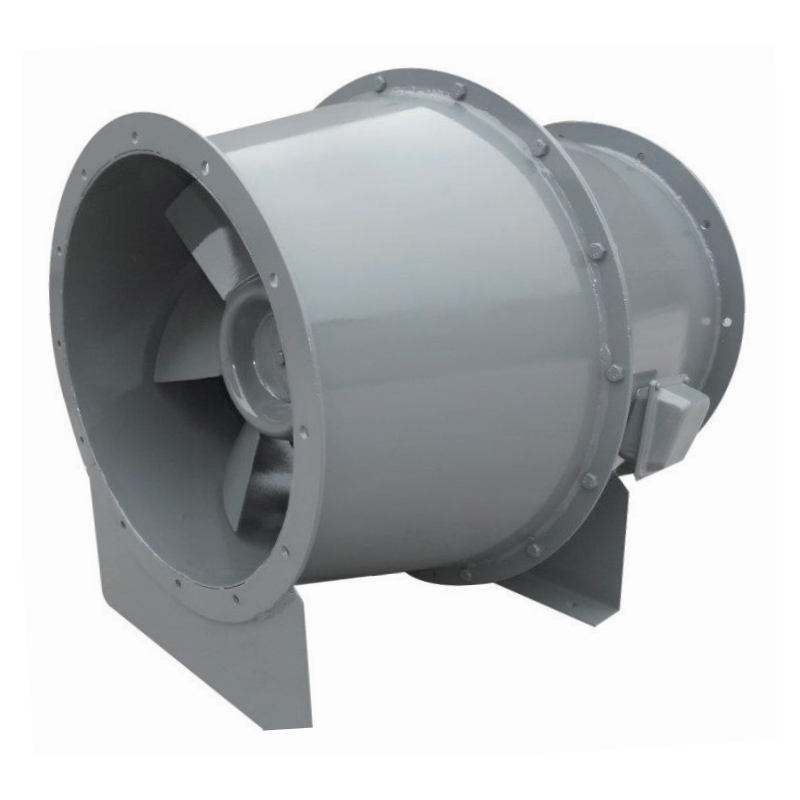

SJG Series Industrial Diagonal flow fan

he specific rotation value of SJG series oblique flow fan is between centrifugal fan and axial flow fan, which has the advantages
of centrifugal fan pressure coefficient, axial flow fan flow coefficient and wide area of high efficiency.

In addition to the unique aerodynamic characteristics mentioned above, the structure of the inclined flow pipe fan also simplifies the design and installation of the project. The direction of inlet and outlet is located on the same axis and the size of inlet and outlet is the same. There is a flange connected with the same diameter air duct, which is very convenient to install. It does not have to be like a centrifugal fan. It should have a 90 degree turning point when installed, so that it occupies less land, does not affect the arrangement and direction of the pipeline, and is most suitable for direct pipeline compression and delivery. Exhaust. Small space for the machine room, especially the advantages of compact

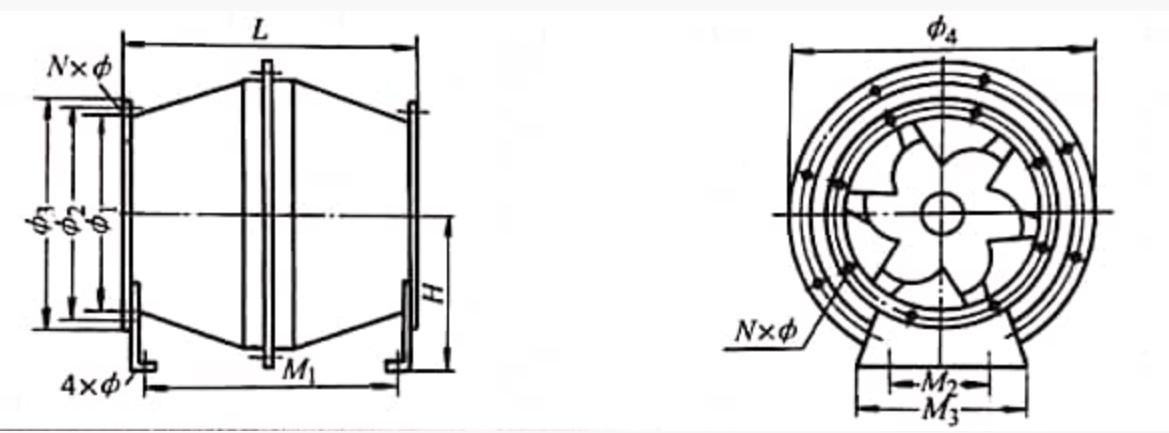

No.	L	H	Φ1	Φ2	Φ3	Φ4	M1	M2	M3
3	446	250	302	345	377	497	368	190	240
3.5	520	285	352	405	438	578	442	230	280
4	594	335	402	450	488	648	506	270	330
4.5	668	370	452	500	538	718	580	300	360
5	742	410	503	560	599	799	644	380	460
6	894	490	603	660	701	941	794	420	500
7	1040	560	703	760	801	1081	940	500	600
8	1188	635	804	860	902	1222	1088	580	700

C-type belt drive

D-type direct drive

A-type direct drive
