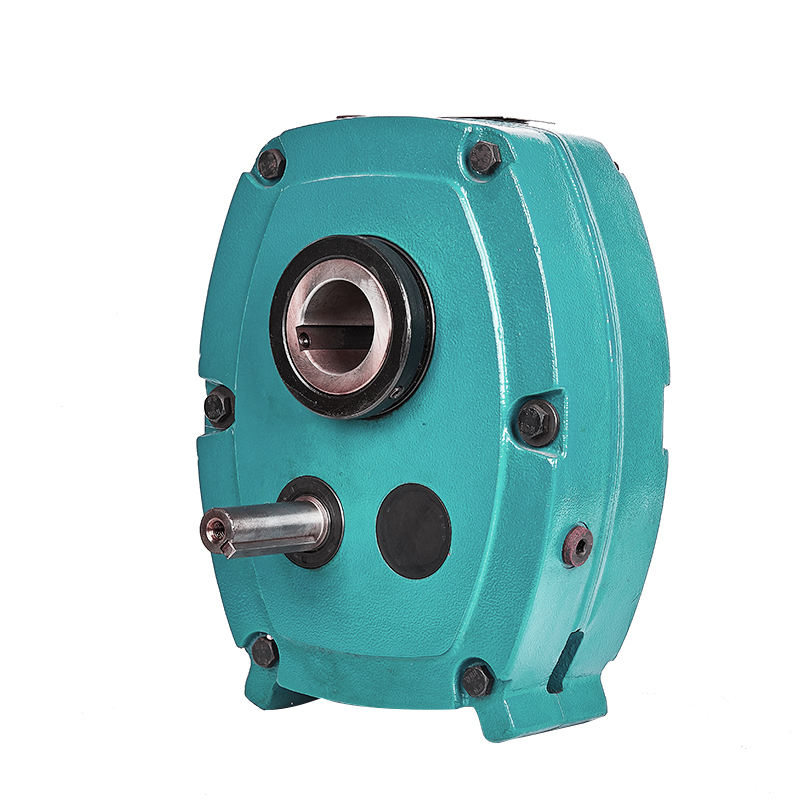

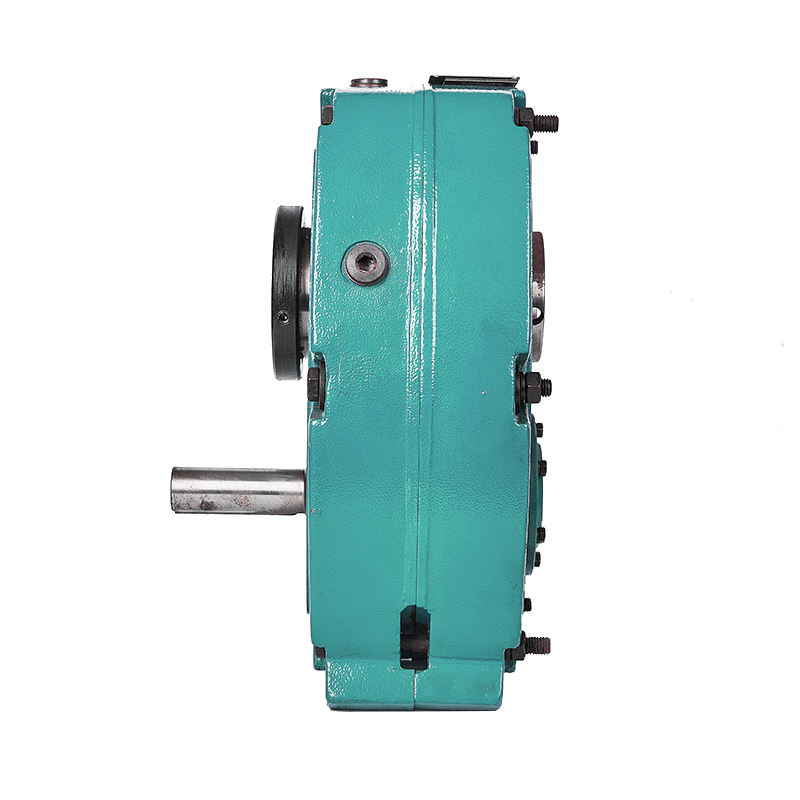

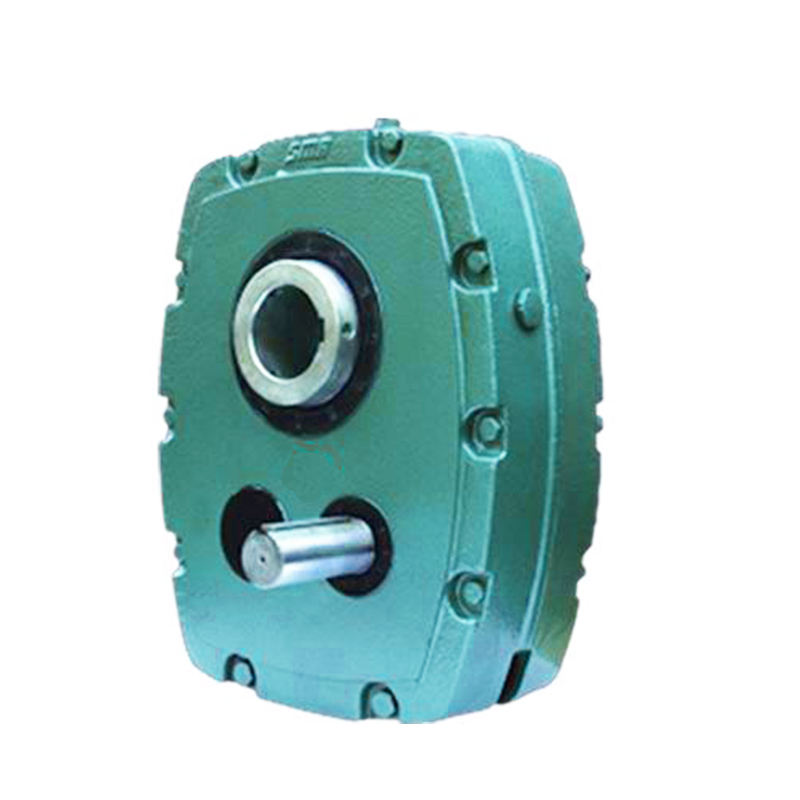

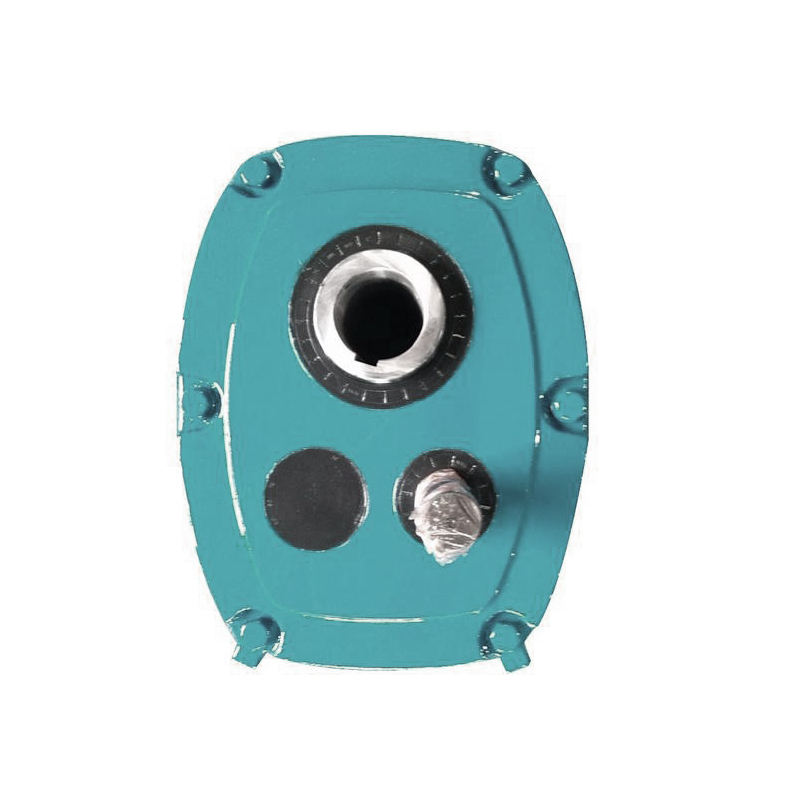

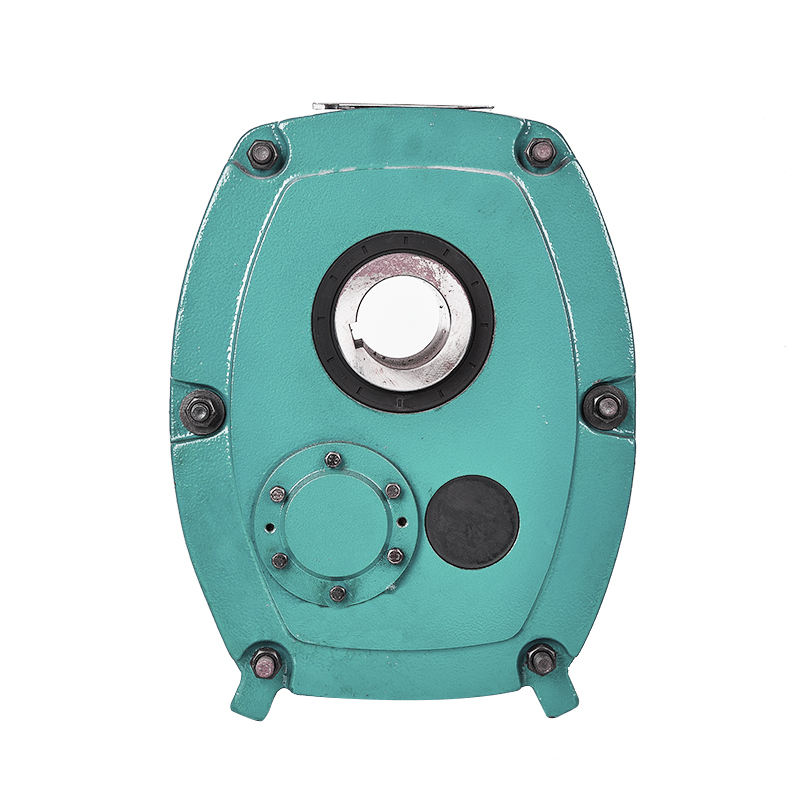

SMR Type D Size Shaft Mounted Reducer Spiral Bevel Gear Flen Der Gearbox Small Right Angle Gearbox with Motor

SMR Type D Size Shaft Mounted Reducer Spiral Bevel Gear Flen Der Gearbox Small Right Angle Gearbox with MotorProduct DescriptionComponents:1. Housing: High-strength Gray Cast Iron Gearboxes2. Gears: Helical Involute Gears, Carburizing, Quenching, Grinding3. Shafts: High-strength Hardening Alloy Ste......
Send Inquiry
Product Description

SMR Type D Size Shaft Mounted Reducer Spiral Bevel Gear Flen Der Gearbox Small Right Angle Gearbox with Motor

Product Description
Components:
1. Housing: High-strength Gray Cast Iron Gearboxes
2. Gears: Helical Involute Gears, Carburizing, Quenching, Grinding
3. Shafts: High-strength Hardening Alloy Steel
4. Input Configurations: Keyed Solid Shaft Input
5. Output Configurations: Keyed Hollow Shaft Output
6. Oil Seal: Double Lips Skeleton Seal
7. Spare Parts: Torque arm, Optional Backstop
Models:
1 Stage(Ratio 5): B05, C05, D05, E05, F05, G05, H05, J05
2 Stage(Ratio 13/20): B13/20, C13/20, D13/20, E13/20, F13/20, G13/20, H13/20, J13/20
Features:
1. High strength of gear box, gears and shafts, sturdy and durable
2. 2 metric output shaft bore diameters(Standard and Optional)
3. Optional backstop to prevent backdriving. Backstop is not recommended for the gear ratio 5
4. Double lips skeleton oil seal combines the functions of seal and dust-proof
5. Widely used in belt conveyor and pulley drive system
Applications:
Conveyors in Mine, Quarry, Gravel Transport, Baggage & Bulk Handling, Animal Feeding, etc.
Installation:
1. Hanging Shaft Mounted
2. Output Flange MountedLubrication:
Oil-bath and Splash
Lubrication
Lubricating Oil: Mineral Oil and Synthetic Oil
Extreme pressure oil is not recommended, unless in case of with backstop
Cooling:
Natural Cooling
SMR Type D Size Shaft Mounted Reducer Spiral Bevel Gear Flen Der Gearbox Small Right Angle Gearbox with Motor
SMR Type D Size Shaft Mounted Reducer Spiral Bevel Gear Flen Der Gearbox Small Right Angle Gearbox with Motor
SMR Type D Size Shaft Mounted Reducer Spiral Bevel Gear Flen Der Gearbox Small Right Angle Gearbox with Motor
Models
Output Shaft Bore
Max. Torque*
Nominal Ratio
Standard
Optional
SMR-B
30mm
40mm
277N.m
5
13
20
SMR-C
40mm
50mm
468N.m
SMR-D
50mm
55mm
783N.m
SMR-E
55mm
65mm
1194N.m
SMR-F
65mm
75mm
1881N.m
SMR-G
75mm
85mm
2970N.m
SMR-H
85mm
100mm
4680N.m
SMR-J
100mm
120mm
7449N.m
SMR Type D Size Shaft Mounted Reducer Spiral Bevel Gear Flen Der Gearbox Small Right Angle Gearbox with Motor
Click Here for more types！
SMR Type D Size Shaft Mounted Reducer Spiral Bevel Gear Flen Der Gearbox Small Right Angle Gearbox with Motor
Other accessories
SMR Type D Size Shaft Mounted Reducer Spiral Bevel Gear Flen Der Gearbox Small Right Angle Gearbox with Motor
