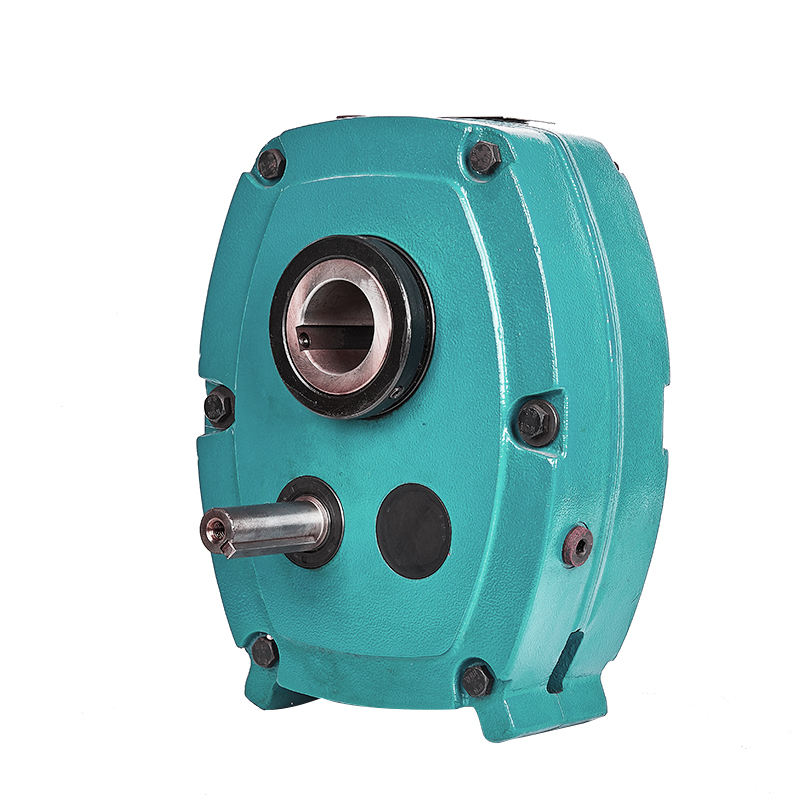

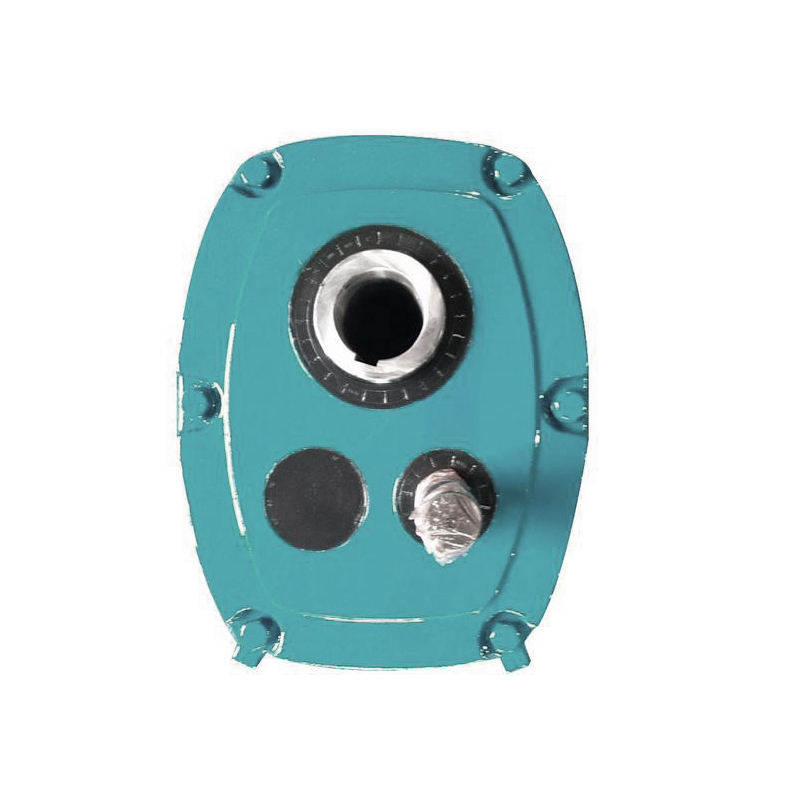

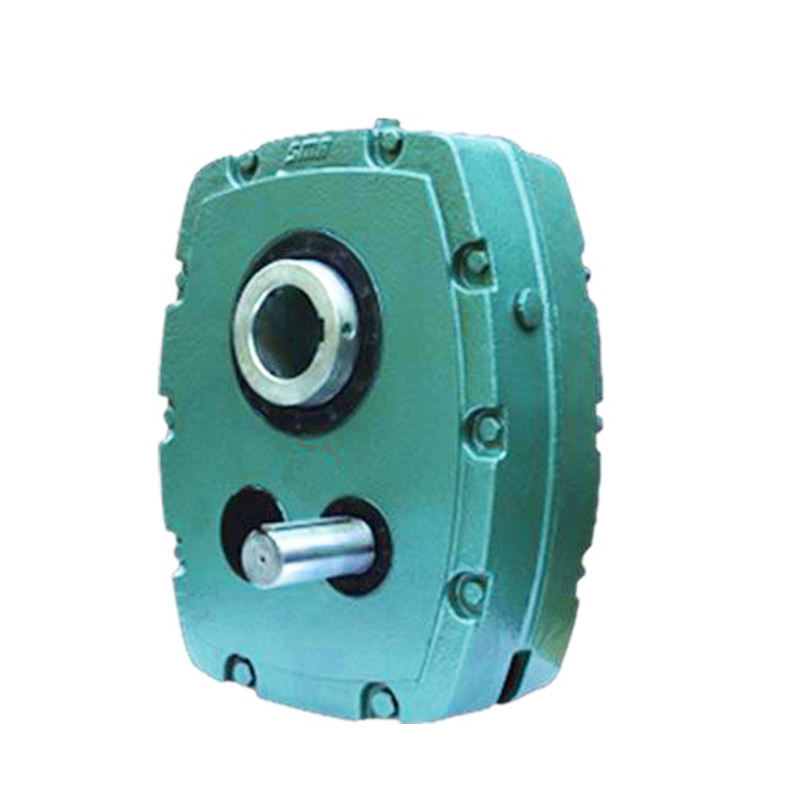

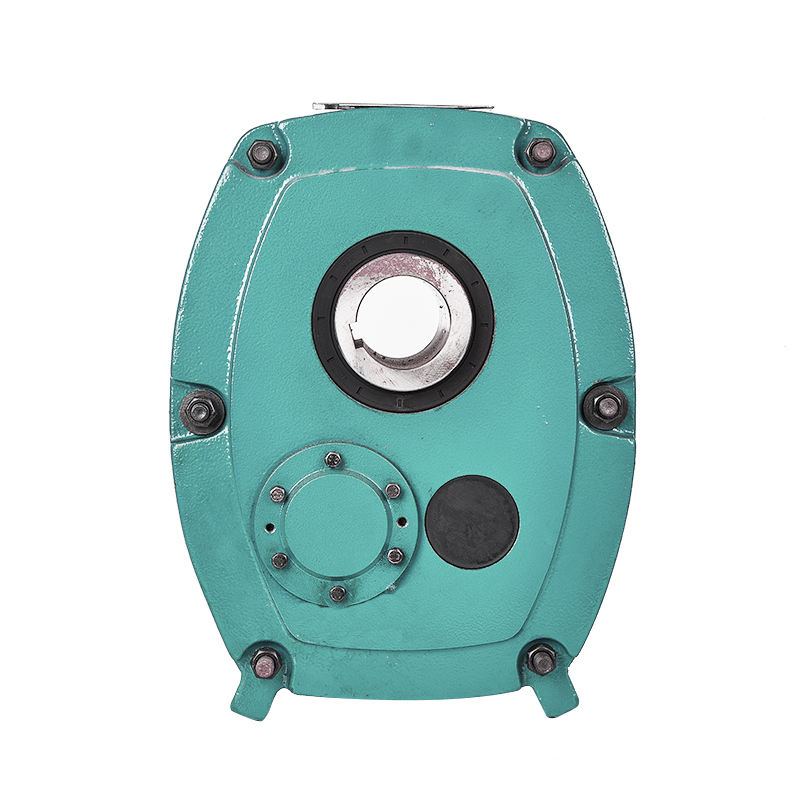

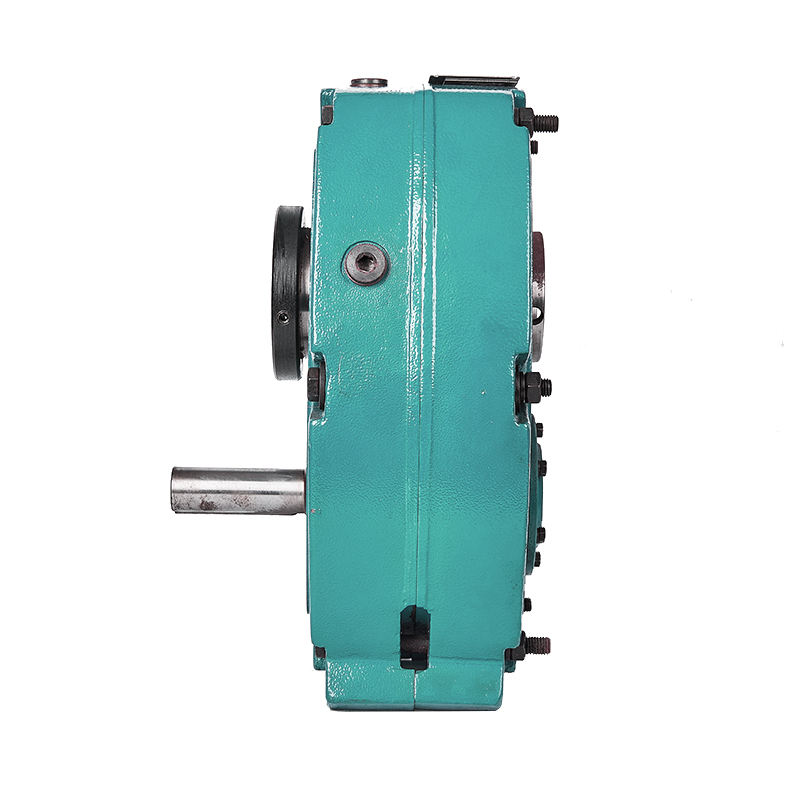

SMR Type Shaft Mounted Transmission Gearbox

SMR Type Shaft Mounted Transmission GearboxProduct Description* Key benefits – Cost effective solution – High Reliability – Robustness – Very Compact design – Prevent the movement in the wrong way – Highly customizable product * Main options – Fluor Elastomer Seals – Backstop – Tor......
Send Inquiry
Product Description

SMR Type Shaft Mounted Transmission Gearbox

Product Description
* Key benefits
– Cost effective solution
– High Reliability
– Robustness
– Very Compact design
– Prevent the movement in the wrong way
– Highly customizable product
* Main options
– Fluor Elastomer Seals
– Backstop
– Torque range
– 150 … 16,000 Nm
* Gear ratios
– 5 … 33.2
* Transmissible Mechanical Power
– Up to 226 kW
* Motors
– Input with solid shaft
– Input with e-motor coupling:
> BN, BE, BX [IEC asynchronous]
> BSR [IEC reluctance]
> BS [IEC single phase]
* Motor options
– Thermistors and thermostat sensors
– Independent forced cooling
– Incremental, sin/cos absolute single/multi-turn encoders
– Tropicalization
– Anti-condensation heaters
* Torque Range
– TA 30 = 150 Nm
– TA 35 = 400 Nm
– TA 40 = 900 Nm
– TA 45 = 1360 Nm
– TA 50 = 2100 Nm
– TA 60 = 3500 Nm
– TA 70 = 4900 Nm
– TA 80 = 6600 Nm
– TA 100 = 10500 Nm
– TA 125 = 16000 Nm
